WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

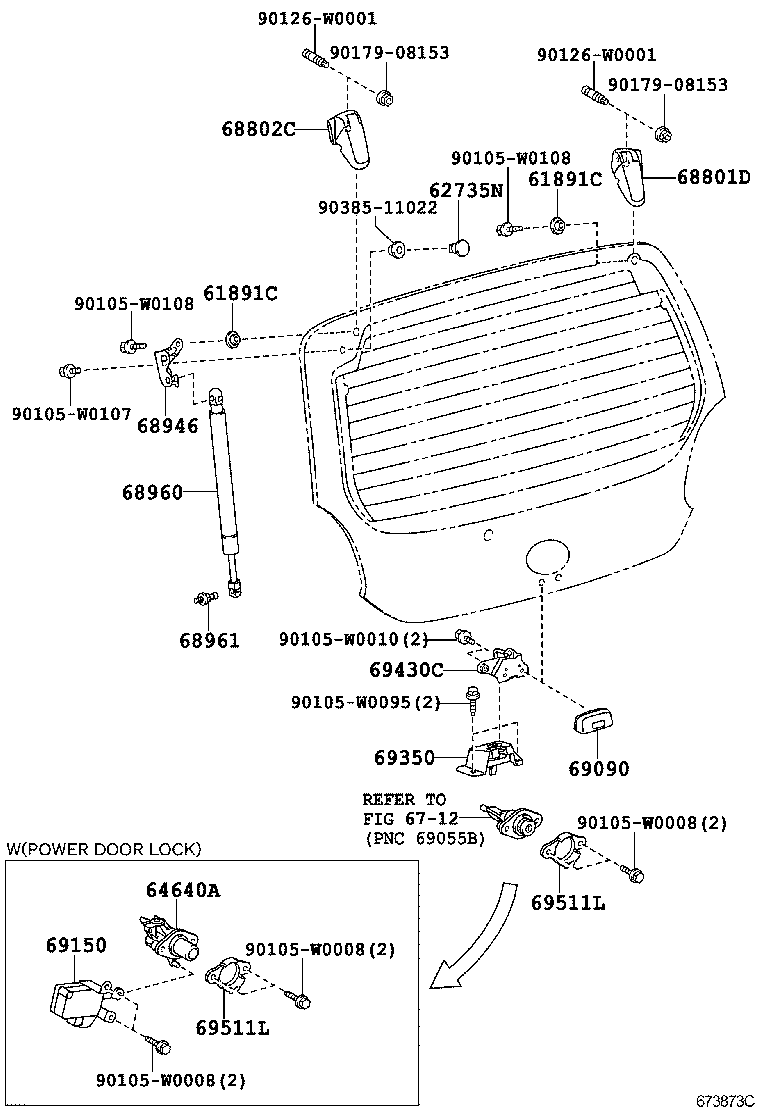

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61891C - RETAINER, BACK DOOR UPPER HINGE | ||||
| 61891-0H010 |
KGB10,WNB10 |
2 | ||
| 61891-0H010 |
WNB10 |
2 | ||
| 61891C - RETAINER, BACK DOOR UPPER HINGE | ||||
| 61891-0H010 |
KGB10,WNB10 |
2 | ||
| 61891-0H010 |
WNB10 |
2 | ||
| 62735N - RETAINER, BACK DOOR HINGE | ||||
| 62735-28040 |
KGB10,WNB10 |
1 | ||
| 62735-28040 |
WNB10 |
1 | ||
| 64640A - OPENER ASSY, BACK DOOR LOCK | ||||
| 64640-0H010 |
KGB10,WNB10..LV1 |
1 | ||
| 64640-0H010 |
WNB10 |
1 | ||
| 68801D - HINGE SUB-ASSY, BACK DOOR, RH | ||||
| 68801-0H010 |
KGB10,WNB10 |
1 | ||
| 68801-0H010 |
KGB10,WNB10 |
1 | ||
| 68801-0H011 |
WNB10 |
1 | ||
| 68802C - HINGE SUB-ASSY, BACK DOOR, LH | ||||
| 68802-0H011 |
WNB10 |
1 | ||
| 68802-0H010 |
KGB10,WNB10 |
1 | ||
| 68802-0H010 |
KGB10,WNB10 |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-0H010 |
KGB10,WNB10 |
1 | ||
| 68946-0H010 |
WNB10 |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68950-0H010 |
KGB10,WNB10 |
1 | ||
| 68950-0H010 |
WNB10 |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-05010 |
WNB10 |
1 | ||
| 68961-05010 |
KGB10,WNB10 |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-0H010 |
WNB10 |
1 | ||
| 69090-0H010 |
KGB10,WNB10 |
1 | ||
| 69150 - ACTUATOR ASSY, BACK DOOR LOCK | ||||
| 69150-0H010 |
KGB10,WNB10..LV1 |
1 | ||
| 69150-0H010 |
WNB10 |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-0H010 |
WNB10 |
1 | ||
| 69350-0H010 |
KGB10,WNB10 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-0H010 |
WNB10 |
1 | ||
| 69430-0H010 |
KGB10,WNB10 |
1 | ||
| 69511L - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-0H030 |
KGB10,WNB10..LV1 |
1 | ||
| 69561-0H030 |
WNB10 |
1 | ||
| 69511L - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-0H030 |
KGB10,WNB10..LV1 |
1 | ||
| 69561-0H030 |
WNB10 |
1 | ||
| Common parts | ||||
| 90105-W0008 | ||||
| 90105-W0010 | ||||
| 90105-W0095 | ||||
| 90105-W0107 | ||||
| 90105-W0108 | ||||
| 90126-W0001 | ||||
| 90179-08153 | ||||
| 90385-11022 | ||||
