WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )5D

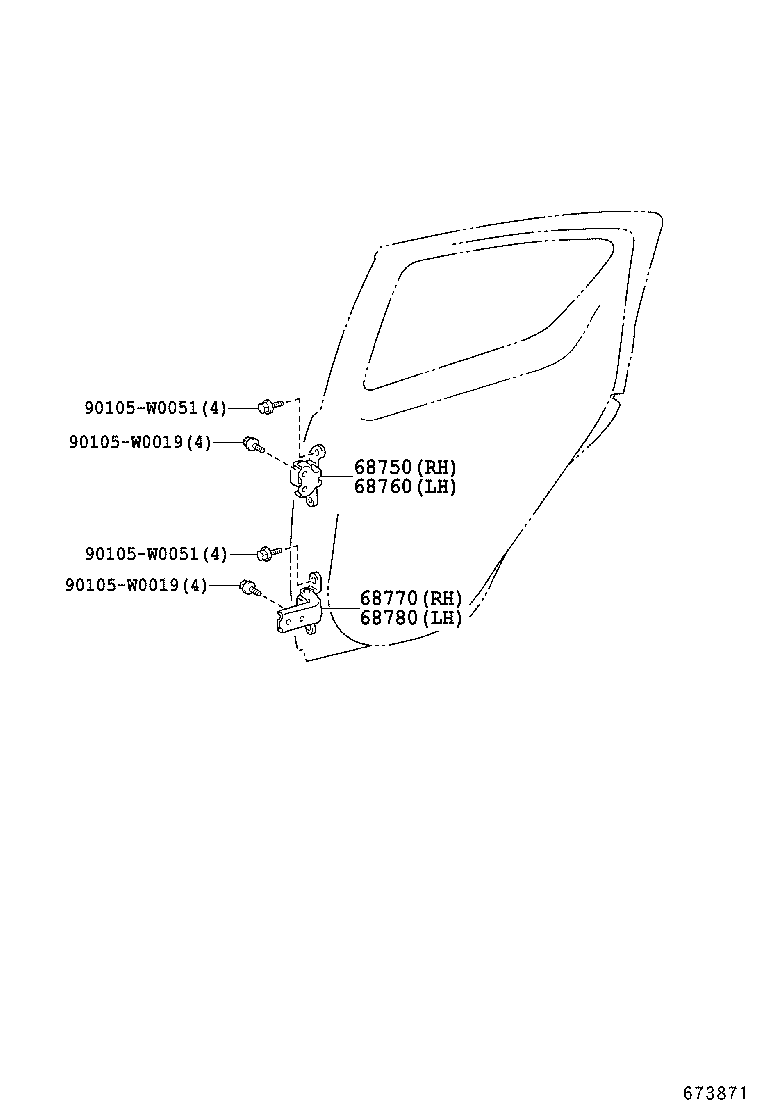

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 90105W0019 90105W0019 90105W0051 90105W0051
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-0H010

KGB10,WNB10..5D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-0H010

KGB10,WNB10..5D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-0H010

KGB10,WNB10..5D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-0H010

KGB10,WNB10..5D

 1
Common parts
90105-W0019
90105-W0051
