WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )5D

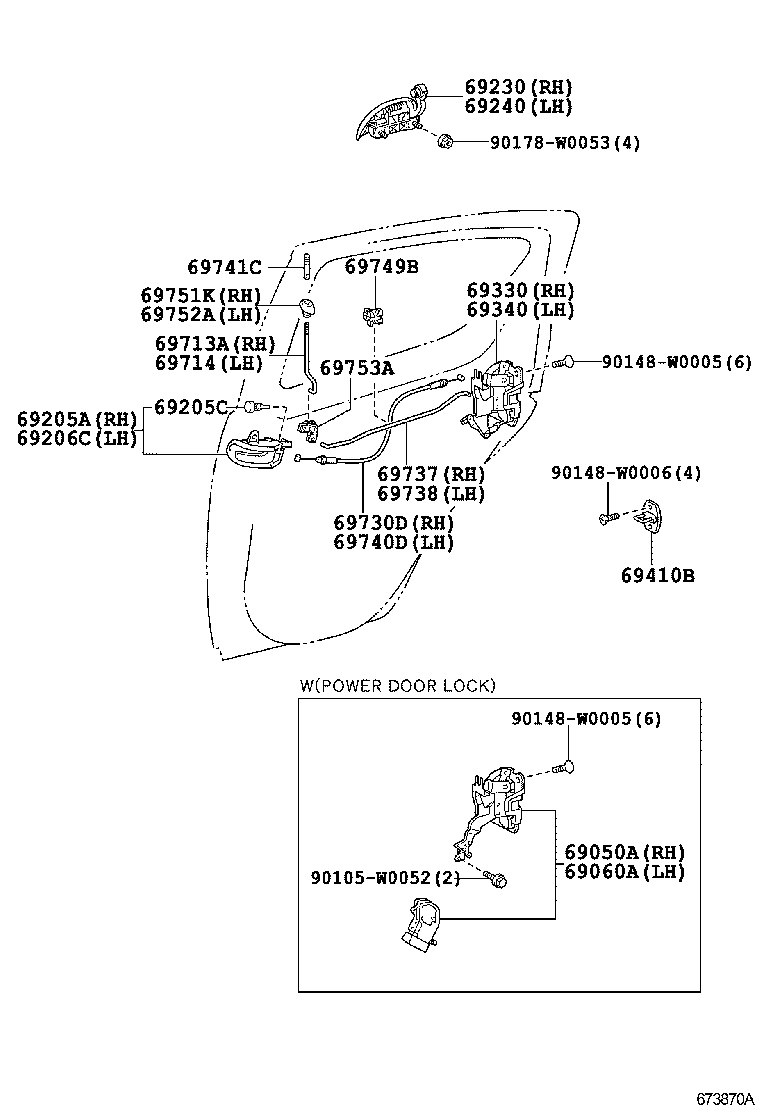

Click highlighted areas on diagram

diagram 69050A 69060A 69205A 69205C 69206C 69230 69240 69330 69340 69410B 69713A 69714 69730D 69737 69738 69740D 69741C 69749B 69751K 69752A 69753A 90105W0052 90148W0005 90148W0005 90148W0006 90178W0053
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-0H011

KGB10,WNB10..5D..LV1

 1
69050-0H011

WNB10..5D

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-0H011

WNB10..5D

 1
69060-0H011

KGB10,WNB10..5D..LV1

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0D060B2

WNB10..5D

MEDIUM GREY,TRIM1#

 1
69205-0D060B2

KGB10,WNB10..5D

MEDIUM GREY,TRIM1#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

WNB10..5D

 2
90541-04027

KGB10,WNB10..5D

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0D060B2

KGB10,WNB10..5D

MEDIUM GREY,TRIM1#

 1
69206-0D060B2

WNB10..5D

MEDIUM GREY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-0H902

KGB10,WNB10..5D..LV1

 1
69230-0H902

WNB10..5D

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-0H902

WNB10..5D

 1
69240-0H902

KGB10,WNB10..5D..LV1

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0H010

WNB10..5D

 2
69410-0H010

KGB10,WNB10..5D

 2
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69715-0H010

KGB10,WNB10..5D

 1
69715-0H010

WNB10..5D

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69715-0H010

WNB10..5D

 1
69715-0H010

KGB10,WNB10..5D

 1
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-0H010

WNB10..5D

 1
69730-0H010

KGB10,WNB10..5D

 1
69737 - LINK, REAR DOOR INSIDE LOCKING, RH
69737-0H010

WNB10..5D

 1
69737-0H010

KGB10,WNB10..5D

 1
69738 - LINK, REAR DOOR INSIDE LOCKING, LH
69738-0H010

KGB10,WNB10..5D

 1
69738-0H010

WNB10..5D

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-0H010

WNB10..5D

 1
69730-0H010

KGB10,WNB10..5D

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-0H010B0

WNB10..5D

MEDIUM GREY,TRIM1#

 2
69741-0H010B0

KGB10,WNB10..5D

MEDIUM GREY,TRIM1#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-0H010

KGB10,WNB10..5D

 2
69749-0H010

WNB10..5D

 2
69751K - HOLDER, DOOR LOCK CONTROL KNOB, RH
69751-0H010B0

KGB10,WNB10..5D

MEDIUM GREY,TRIM1#

 1
69751-0H010B0

WNB10..5D

MEDIUM GREY,TRIM1#

 1
69752A - HOLDER, DOOR LOCK CONTROL KNOB, LH
69752-0H010B0

KGB10,WNB10..5D

MEDIUM GREY,TRIM1#

 1
69752-0H010B0

WNB10..5D

MEDIUM GREY,TRIM1#

 1
69753A - BELLCRANK, DOOR LOCK CONTROL
69753-10010

KGB10,WNB10..5D

 2
69753-10010

WNB10..5D

 2
Common parts
90105-W0052
90148-W0005
90148-W0006
90178-W0053
