WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502-1202)

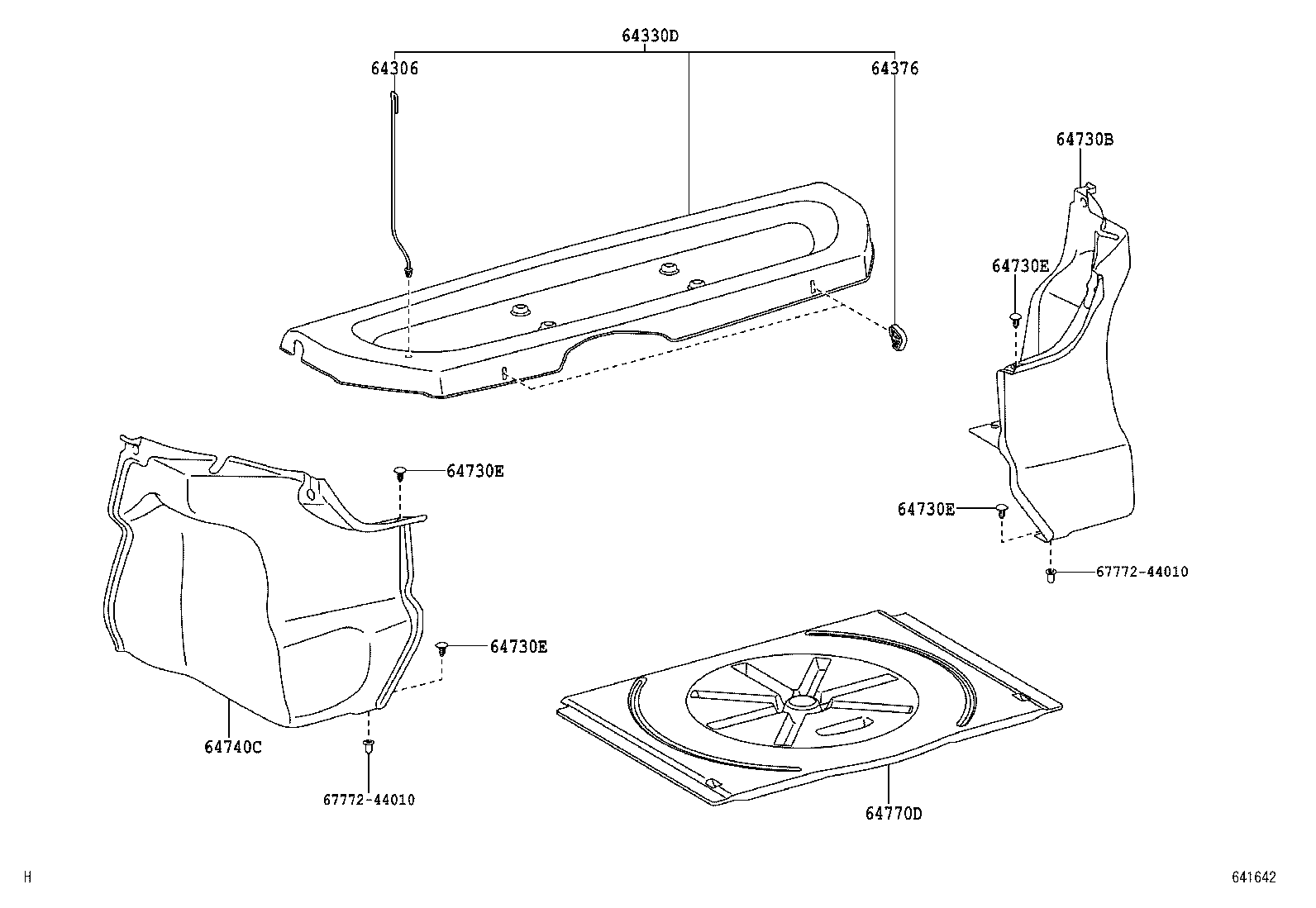

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-0H020 |
KGB10,WNB10 |
1 | ||
| 64306-0H020 |
WNB10 |
1 | ||
| 64306-0H010 |
KGB10,WNB10 |
1 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0H010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 64330-0H011B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 64330-0H030B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-0H010 |
KGB10,WNB10 |
2 | ||
| 64376-0H010 |
WNB10 |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-0H050B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10034C0 |
KGB10,WNB10 BLACK |
4 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10034C0 |
KGB10,WNB10 BLACK |
4 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10034C0 |
KGB10,WNB10 BLACK |
4 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10034C0 |
KGB10,WNB10 BLACK |
4 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0H050B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 64770D - COVER ASSY, SPARE WHEEL | ||||
| 64771-0H010 |
WNB10 |
1 | ||
| 64771-0H010 |
KGB10,WNB10 |
1 | ||
| Common parts | ||||
| 67772-44010 | ||||
