WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )

Click highlighted areas on diagram

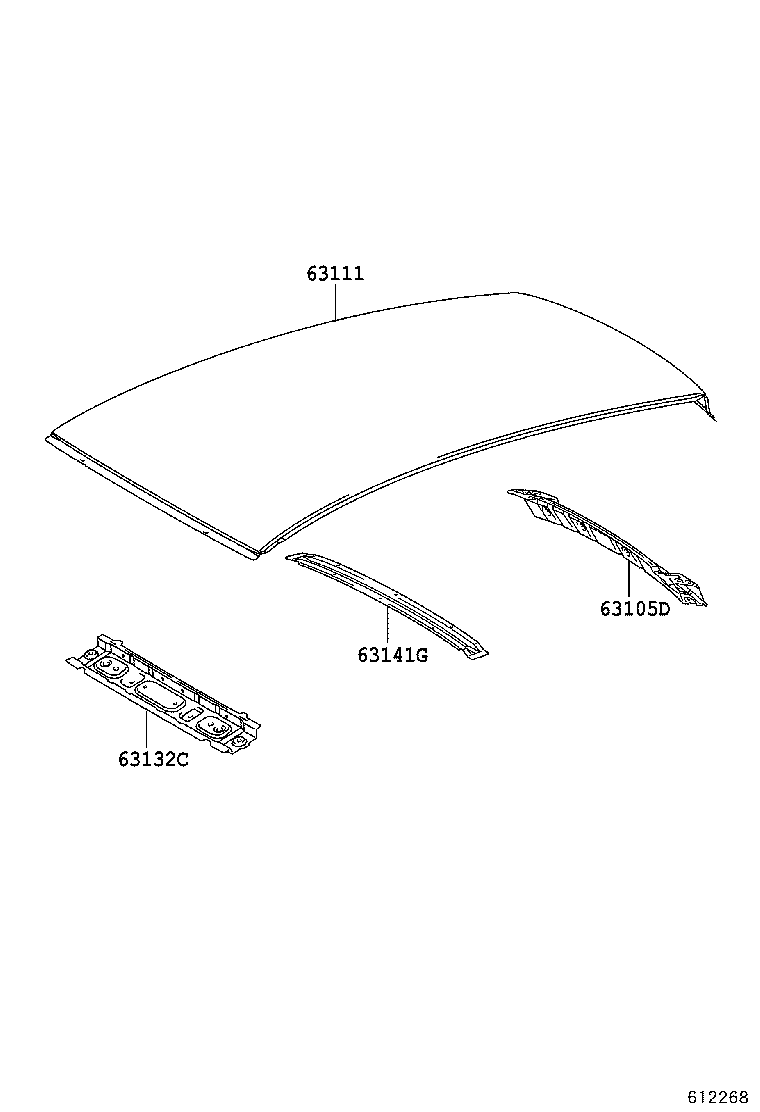

diagram 63105D 63111 63132C 63141G
Part # Description Qty Price
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-0H010

KGB10,WNB10

 1
63111 - PANEL, ROOF
63111-0H010

KGB10,WNB10

 1
63111-0H010

WNB10

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-0H010

KGB10,WNB10

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-0H010

WNB10

 1
63141-0H010

KGB10,WNB10

 1
