WNB10R-AHMGXW (2005)
Toyota Aygo

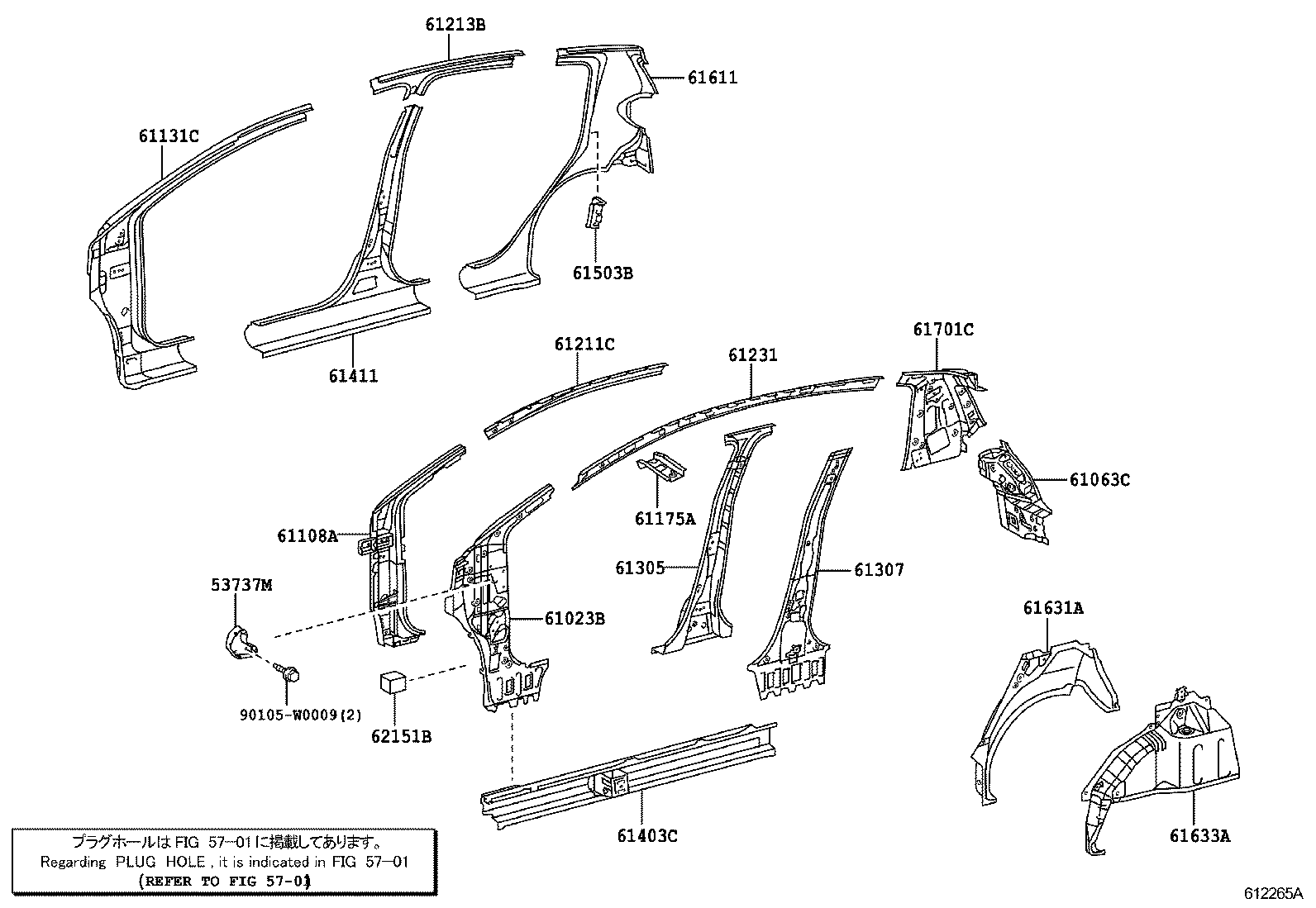

ILLUST NO. 1 OF 2(0502- )5D
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53737M - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-0H010 |
WNB10 |
1 | ||
| 53737-0H010 |
KGB10,WNB10 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0H010 |
KGB10,WNB10 |
1 | ||
| 61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH | ||||
| 61063-0H010 |
KGB10,WNB10 |
1 | ||
| 61063-0H010 |
WNB10 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0H010 |
WNB10 |
1 | ||
| 61108-0H010 |
KGB10,WNB10 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-0H030 |
KGB10,WNB10..5D |
1 | ||
| 61131-0H030 |
WNB10..5D |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-0H010 |
KGB10,WNB10 |
1 | ||
| 61175-0H010 |
WNB10 |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61211-0H010 |
WNB10..5D |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-0H010 |
WNB10..5D |
1 | ||
| 61213-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-0H050 |
WNB10..5D |
1 | ||
| 61231-0H050 |
KGB10,WNB10..5D |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61305-0H010 |
WNB10..5D |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61403-0H010 |
WNB10..5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61411-0H010 |
WNB10..5D |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-0H010 |
WNB10..5D |
1 | ||
| 61503-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61611-0H010 |
WNB10..5D |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-0H010 |
WNB10 |
1 | ||
| 61631-0H010 |
KGB10,WNB10 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-0H010 |
KGB10,WNB10 |
1 | ||
| 61607-0H010 |
WNB10 |
1 | ||
| 61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61701-0H010 |
WNB10..5D |
1 | ||
| 61701-0H010 |
KGB10,WNB10..5D |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-0H010 |
KGB10,WNB10 |
2 | ||
| 62151-0H010 |
WNB10 |
2 | ||
| Common parts | ||||
| 90105-W0009 | ||||
| Linked diagrams | ||||
| 5701 | ||||

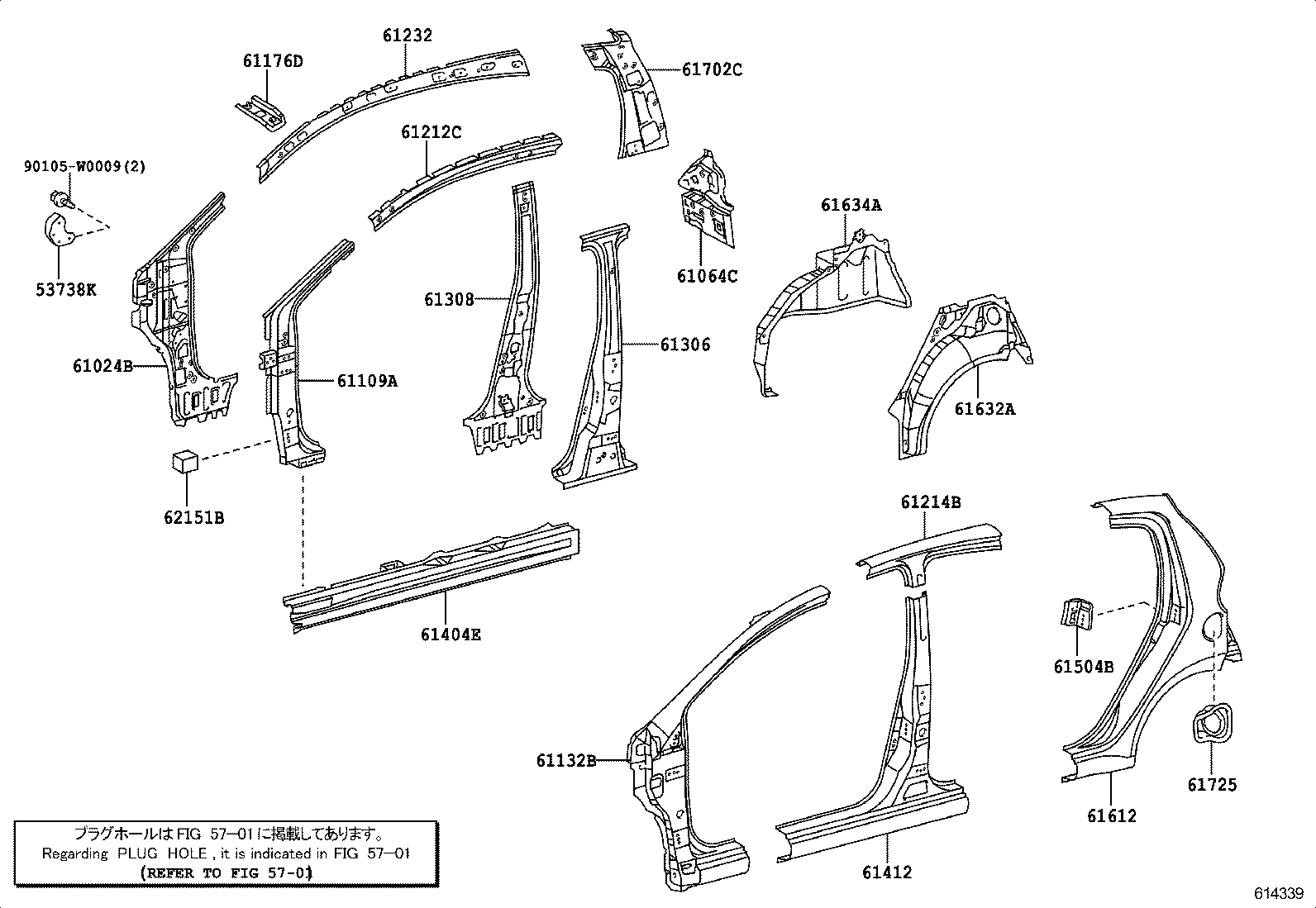

ILLUST NO. 2 OF 2(0502- )5D
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53738K - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53737-0H010 |
KGB10,WNB10 |
1 | ||
| 53737-0H010 |
WNB10 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0H010 |
KGB10,WNB10 |
1 | ||
| 61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH | ||||
| 61064-0H010 |
KGB10,WNB10 |
1 | ||
| 61064-0H010 |
WNB10 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0H010 |
KGB10,WNB10 |
1 | ||
| 61109-0H010 |
WNB10 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-0H030 |
WNB10..5D |
1 | ||
| 61132-0H030 |
KGB10,WNB10..5D |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-0H010 |
KGB10,WNB10 |
1 | ||
| 61176-0H010 |
WNB10 |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61212-0H010 |
WNB10..5D |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61214-0H010 |
WNB10..5D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-0H050 |
KGB10,WNB10..5D |
1 | ||
| 61232-0H050 |
WNB10..5D |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61306-0H010 |
WNB10..5D |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-0H010 |
WNB10..5D |
1 | ||
| 61404-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61412-0H010 |
WNB10..5D |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61504-0H010 |
WNB10..5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0H010 |
WNB10..5D |
1 | ||
| 61612-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-0H010 |
KGB10,WNB10 |
1 | ||
| 61632-0H010 |
WNB10 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-0H010 |
WNB10 |
1 | ||
| 61608-0H010 |
KGB10,WNB10 |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-0H010 |
WNB10..5D |
1 | ||
| 61702-0H010 |
KGB10,WNB10..5D |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-0H010 |
KGB10,WNB10 |
1 | ||
| 61725-0H010 |
WNB10 |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-0H010 |
KGB10,WNB10 |
2 | ||
| 62151-0H010 |
WNB10 |
2 | ||
| Common parts | ||||
| 90105-W0009 | ||||
| Linked diagrams | ||||
| 5701 | ||||
