WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

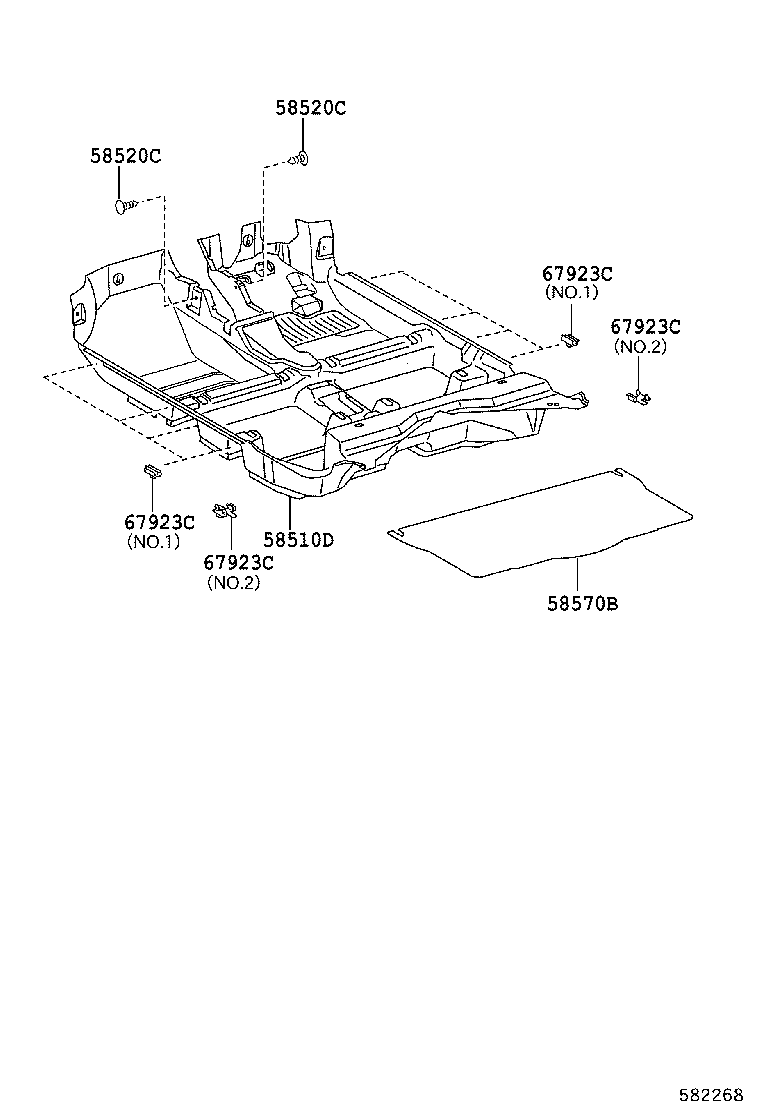

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-0H050B0 |
KGB10,WNB10..RHD..5D DK.GRAY,TRIM1# |
1 | ||
| 58510-0H052B0 |
KGB10,WNB10..RHD..5D DARK GREY,TRIM1# |
1 | ||
| 58510-0H051B0 |
KGB10,WNB10..RHD..5D DARK GREY,TRIM1# |
1 | ||
| 58510-0H052B0 |
KGB10,WNB10..RHD..5D DARK GREY,TRIM1#,2# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-W0006B1 |
KGB10,WNB10 DARK GREY,TRIM1# |
2 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-W0006B1 |
KGB10,WNB10 DARK GREY,TRIM1# |
2 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58570-0H010B1 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-0H030 |
KGB10,WNB10 NO.2 |
2 | ||
| 67923-0H020 |
KGB10,WNB10..5D NO.1 |
6 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-0H030 |
KGB10,WNB10 NO.2 |
2 | ||
| 67923-0H020 |
KGB10,WNB10..5D NO.1 |
6 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-0H030 |
KGB10,WNB10 NO.2 |
2 | ||
| 67923-0H020 |
KGB10,WNB10..5D NO.1 |
6 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-0H030 |
KGB10,WNB10 NO.2 |
2 | ||
| 67923-0H020 |
KGB10,WNB10..5D NO.1 |
6 | ||
