WNB10R-AHMGXW (2005)
Toyota Aygo

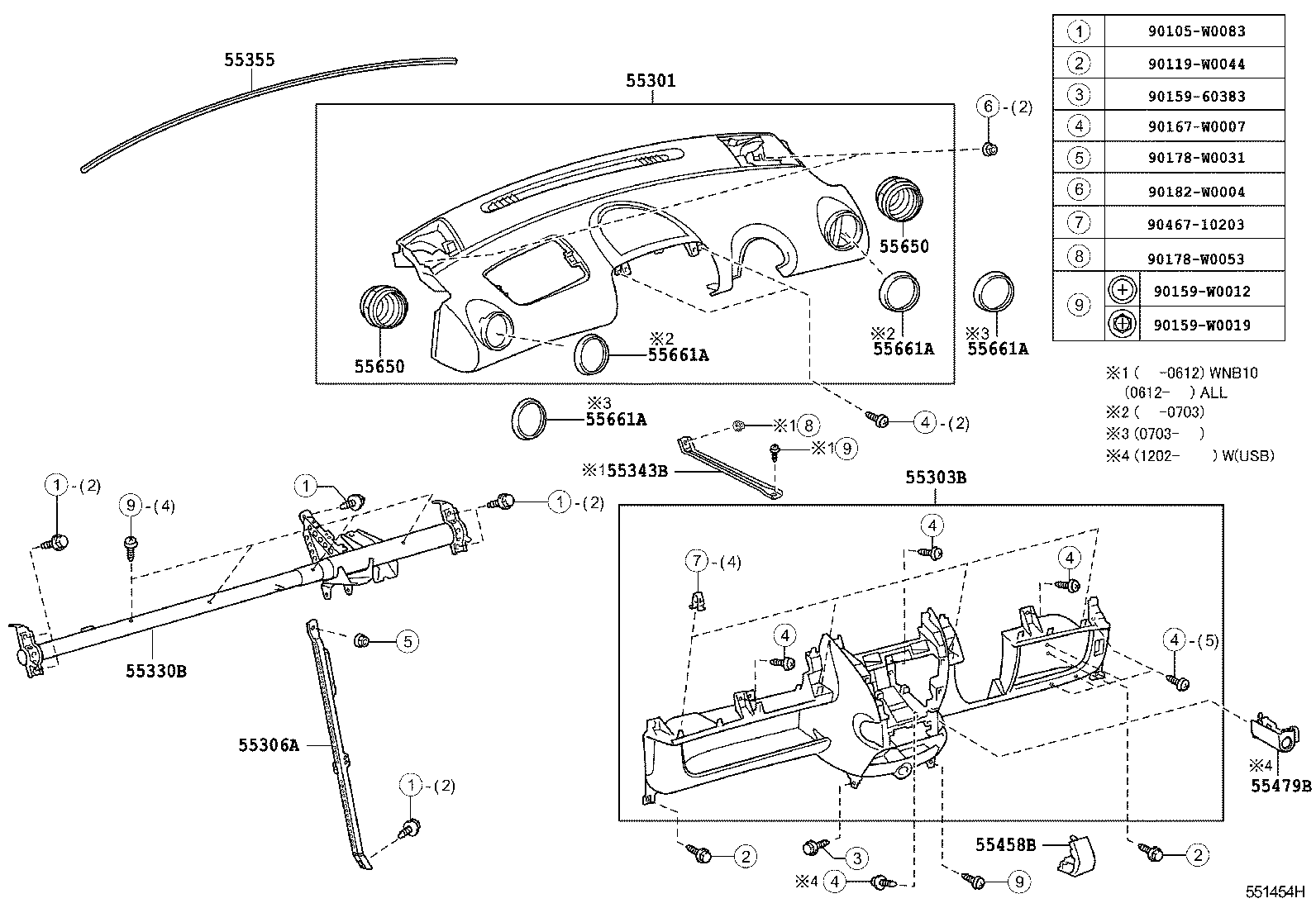

ILLUST NO. 1 OF 2(0502- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-0H904 |
KGB10,WNB10..RHD |
1 | ||
| 55300-0H904 |
WNB10..RHD |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0H020B0 |
KGB10,WNB10..RHD MEDIUM GREY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0H020 |
KGB10,WNB10..RHD |
1 | ||
| 55306-0H020 |
WNB10..RHD |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-0H020 |
WNB10..RHD |
1 | ||
| 55330-0H020 |
KGB10,WNB10..RHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-0H010 |
WNB10 |
1 | ||
| 55343-0H010 |
WNB10 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0H010 |
KGB10,WNB10 |
1 | ||
| 55355-0H010 |
WNB10 |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-0H010B0 |
KGB10,WNB10..RHD MEDIUM GREY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0H010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0H010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
2 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-0H020J4 |
KGB10,WNB10 PACKAGE OPTION 3-T COLOR RING,BLUE ME.,TRIM10&8U7 |
2 | ||
| 55661-0H020J1 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BLUE MC.,TRIM10,11&8M6 |
2 | ||
| 55661-0H020E0 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BEIGE ME.,TRIM10,11&4R0 |
2 | ||
| 55661-0H010 |
KGB10,WNB10 |
2 | ||
| 55661-0H020J3 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,GRAYISH BLUE ME.,TRIM10,11&8R3 |
2 | ||
| 55661-0H010B1 |
KGB10,WNB10 GRAY METALLIC,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,4R0 ,8M6 ,8R0 |
2 | ||
| 55661-0H020D0 |
WNB10 PACKAGE OPTION 3-T COLOR RING,RED M.M.,TRIM1#,2#&3R3 |
2 | ||
| 55661-0H020G0 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,OLIVE M.M.,TRIM10,11&6T7 |
2 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-0H020J4 |
KGB10,WNB10 PACKAGE OPTION 3-T COLOR RING,BLUE ME.,TRIM10&8U7 |
2 | ||
| 55661-0H020J1 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BLUE MC.,TRIM10,11&8M6 |
2 | ||
| 55661-0H020E0 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BEIGE ME.,TRIM10,11&4R0 |
2 | ||
| 55661-0H010 |
KGB10,WNB10 |
2 | ||
| 55661-0H020J3 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,GRAYISH BLUE ME.,TRIM10,11&8R3 |
2 | ||
| 55661-0H010B1 |
KGB10,WNB10 GRAY METALLIC,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,4R0 ,8M6 ,8R0 |
2 | ||
| 55661-0H020D0 |
WNB10 PACKAGE OPTION 3-T COLOR RING,RED M.M.,TRIM1#,2#&3R3 |
2 | ||
| 55661-0H020G0 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,OLIVE M.M.,TRIM10,11&6T7 |
2 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-0H020J4 |
KGB10,WNB10 PACKAGE OPTION 3-T COLOR RING,BLUE ME.,TRIM10&8U7 |
2 | ||
| 55661-0H020J1 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BLUE MC.,TRIM10,11&8M6 |
2 | ||
| 55661-0H020E0 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BEIGE ME.,TRIM10,11&4R0 |
2 | ||
| 55661-0H010 |
KGB10,WNB10 |
2 | ||
| 55661-0H020J3 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,GRAYISH BLUE ME.,TRIM10,11&8R3 |
2 | ||
| 55661-0H010B1 |
KGB10,WNB10 GRAY METALLIC,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,4R0 ,8M6 ,8R0 |
2 | ||
| 55661-0H020D0 |
WNB10 PACKAGE OPTION 3-T COLOR RING,RED M.M.,TRIM1#,2#&3R3 |
2 | ||
| 55661-0H020G0 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,OLIVE M.M.,TRIM10,11&6T7 |
2 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-0H020J4 |
KGB10,WNB10 PACKAGE OPTION 3-T COLOR RING,BLUE ME.,TRIM10&8U7 |
2 | ||
| 55661-0H020J1 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BLUE MC.,TRIM10,11&8M6 |
2 | ||
| 55661-0H020E0 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BEIGE ME.,TRIM10,11&4R0 |
2 | ||
| 55661-0H010 |
KGB10,WNB10 |
2 | ||
| 55661-0H020J3 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,GRAYISH BLUE ME.,TRIM10,11&8R3 |
2 | ||
| 55661-0H010B1 |
KGB10,WNB10 GRAY METALLIC,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,4R0 ,8M6 ,8R0 |
2 | ||
| 55661-0H020D0 |
WNB10 PACKAGE OPTION 3-T COLOR RING,RED M.M.,TRIM1#,2#&3R3 |
2 | ||
| 55661-0H020G0 |
KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,OLIVE M.M.,TRIM10,11&6T7 |
2 | ||
| Common parts | ||||
| 90105-W0083 | ||||
| 90119-W0044 | ||||
| 90159-60383 | ||||
| 90159-W0012 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90178-W0053 | ||||
| 90182-W0004 | ||||
| 90467-10203 | ||||

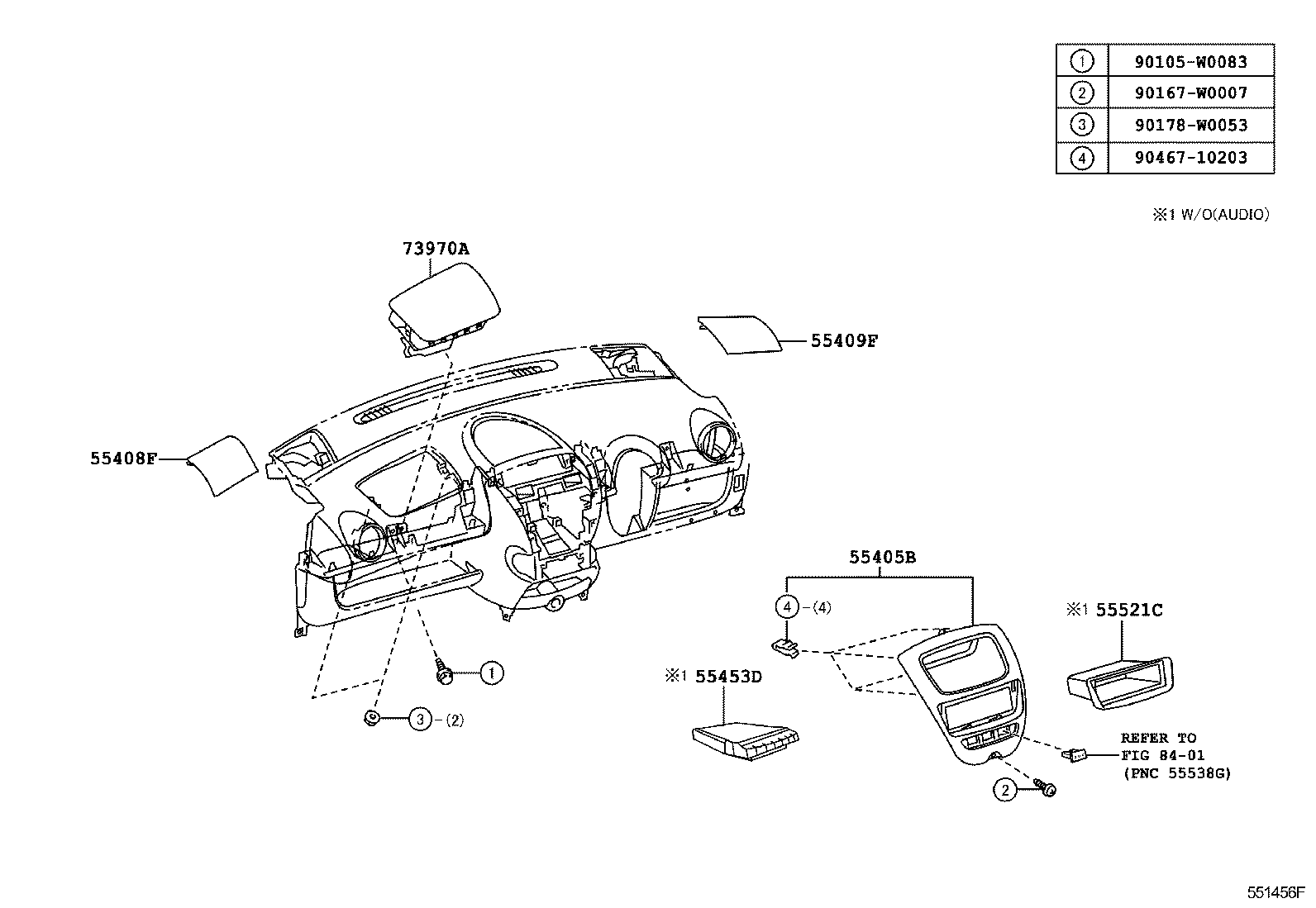

ILLUST NO. 2 OF 2(0502- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0H010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-0H010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-0H010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55456-0H010 |
WNB10 |
1 | ||
| 55456-0H010 |
KGB10,WNB10 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-0H010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0H020B0 |
KGB10,WNB10..RHD DARK GREY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-W0083 | ||||
| 90167-W0007 | ||||
| 90178-W0053 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 8401 | ||||
