WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

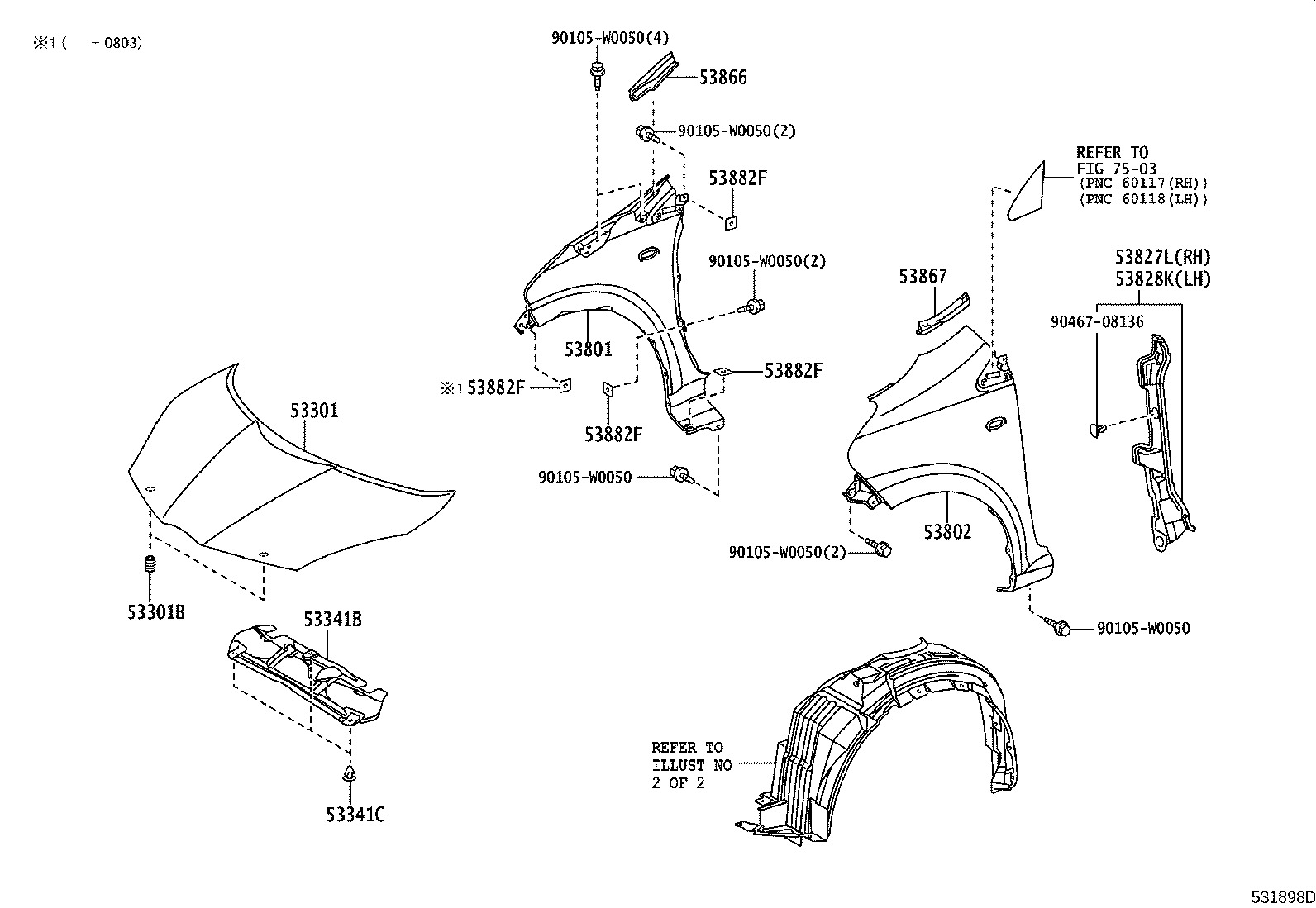

ILLUST NO. 1 OF 2(0502- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0H010 |
KGB10,WNB10 |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
KGB10,WNB10 |
2 | ||
| 90541-15019 |
WNB10 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0H010 |
WNB10 |
1 | ||
| 53341-0H010 |
KGB10,WNB10..LV1 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
KGB10,WNB10..LV1 |
3 | ||
| 90467-09050 |
WNB10 |
3 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-0H010 |
KGB10,WNB10 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-0H010 |
KGB10,WNB10 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0H010 |
KGB10,WNB10 |
1 | ||
| 53827-0H010 |
WNB10 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0H010 |
KGB10,WNB10 |
1 | ||
| 53828-0H010 |
WNB10 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-0H010 |
KGB10,WNB10 |
1 | ||
| 53866-0H010 |
WNB10 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-0H010 |
KGB10,WNB10 |
1 | ||
| 53867-0H010 |
WNB10 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
KGB10,WNB10 |
8 | ||
| 53882-16030 |
KGB10,WNB10 |
6 | ||
| 53882-16030 |
WNB10 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
KGB10,WNB10 |
8 | ||
| 53882-16030 |
KGB10,WNB10 |
6 | ||
| 53882-16030 |
WNB10 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
KGB10,WNB10 |
8 | ||
| 53882-16030 |
KGB10,WNB10 |
6 | ||
| 53882-16030 |
WNB10 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
KGB10,WNB10 |
8 | ||
| 53882-16030 |
KGB10,WNB10 |
6 | ||
| 53882-16030 |
WNB10 |
6 | ||
| Common parts | ||||
| 90105-W0050 | ||||
| 90467-08136 | ||||
| Linked diagrams | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(0502- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-0H030 |
WNB10 |
1 | ||
| 53875-0H030 |
WNB10 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-05114 |
KGB10,WNB10 |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60590 |
KGB10,WNB10 |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-0H030 |
WNB10 |
1 | ||
| 53876-0H030 |
WNB10 |
1 | ||
| Common parts | ||||
| 90105-W0052 | ||||
| 90119-W0089 | ||||
| 90159-60383 | ||||
| 90189-06047 | ||||
| 90467-07201 | ||||
