WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

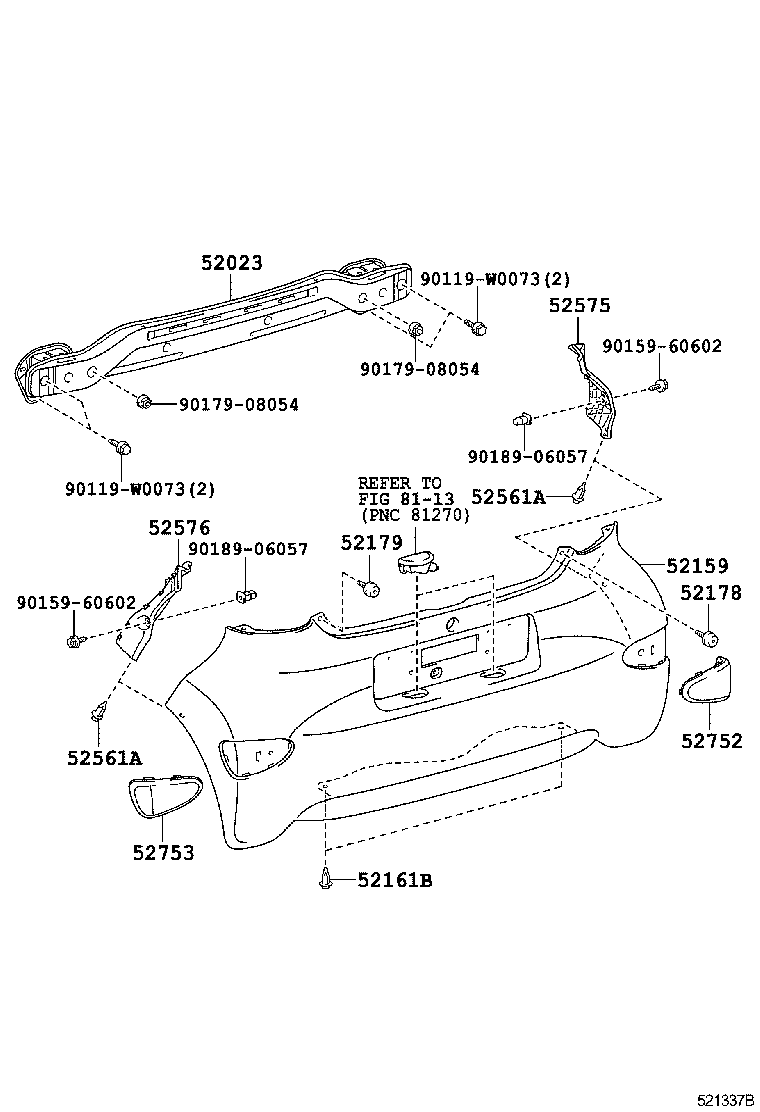

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-0H010 |
KGB10,WNB10 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0H901 |
KGB10,WNB10 PAINT REQ. |
1 | ||
| 52159-0H901 |
WNB10 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KGB10,WNB10 |
2 | ||
| 52161-16010 |
WNB10 |
2 | ||
| 52178 - CUSHION, REAR BUMPER, RH | ||||
| 52188-70010 |
KGB10,WNB10 |
1 | ||
| 52188-70010 |
WNB10 |
1 | ||
| 52179 - CUSHION, REAR BUMPER, LH | ||||
| 52188-70010 |
WNB10 |
1 | ||
| 52188-70010 |
KGB10,WNB10 |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05063C0 |
KGB10,WNB10 BLACK |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05063C0 |
KGB10,WNB10 BLACK |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0H010 |
KGB10,WNB10 |
1 | ||
| 52575-0H010 |
WNB10 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0H010 |
KGB10,WNB10 |
1 | ||
| 52576-0H010 |
WNB10 |
1 | ||
| 52752 - MOULDING, REAR BUMPER SIDE, RH | ||||
| 52752-0H901 |
KGB10,WNB10 |
1 | ||
| 52752-0H901 |
WNB10 |
1 | ||
| 52753 - MOULDING, REAR BUMPER SIDE, LH | ||||
| 52753-0H901 |
WNB10 |
1 | ||
| 52753-0H901 |
KGB10,WNB10 |
1 | ||
| Common parts | ||||
| 90119-W0073 | ||||
| 90159-60602 | ||||
| 90179-08054 | ||||
| 90189-06057 | ||||
| Linked diagrams | ||||
| 8113 | ||||
