WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0502-0812)

Click highlighted areas on diagram

diagram 5102 5102 52021 52521A 52521A 52535 52536 52618 5302 5302 8101 8101 90105W0078 90105W0078 90105W0078 90119W0089 9015960383
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0H012

KGB10,WNB10

 1
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0

KGB10,WNB10

BLACK

 2
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0

KGB10,WNB10

BLACK

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0H010

KGB10,WNB10

 1
52535-0H010

WNB10

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0H010

WNB10

 1
52536-0H010

KGB10,WNB10

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-0H010

WNB10

 1
52618-0H010

KGB10,WNB10

 1
Common parts
90105-W0078
90119-W0089
90159-60383
Linked diagrams
5102
5302
8101

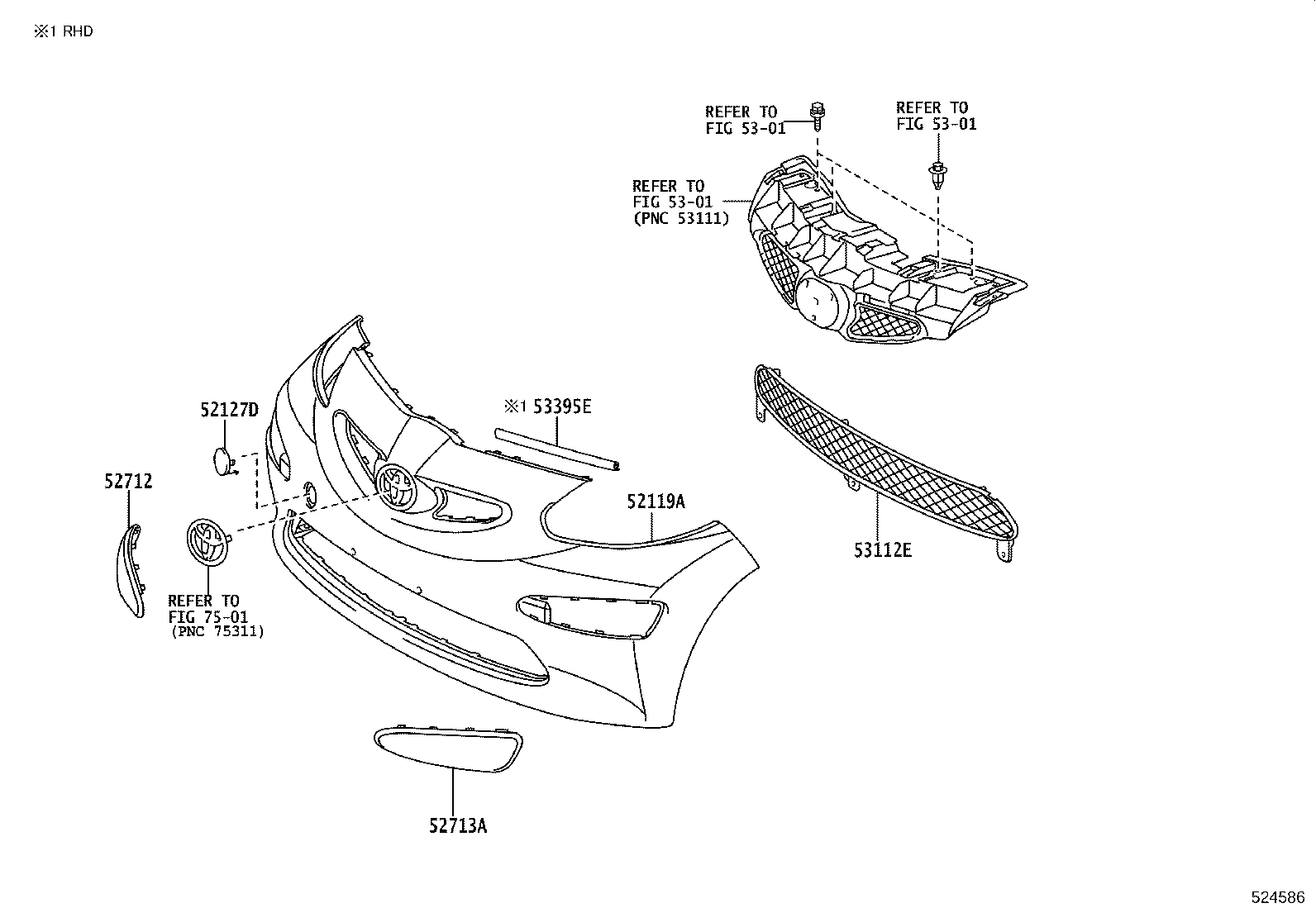

ILLUST NO. 2 OF 2(0502-0812)

Click highlighted areas on diagram

diagram 52119A 52127D 52712 52713A 5301 5301 5301 53112E 53395E 7501
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0H901

KGB10,WNB10

PAINT REQ

 1
52119-0H908

WNB10

PAINT REQ

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0H901

KGB10,WNB10

 1
52127-0H902

WNB10

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-0H901

KGB10,WNB10

 1
52712-0H902

WNB10

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-0H902

WNB10

 1
52713-0H901

KGB10,WNB10

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0H040

WNB10

 1
53112-0H010

KGB10,WNB10

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-0H010

KGB10,WNB10..RHD

 1
53395-0H011

KGB10,WNB10..RHD

 1
53395-0H011

WNB10

 2
Linked diagrams
5301
7501
