WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

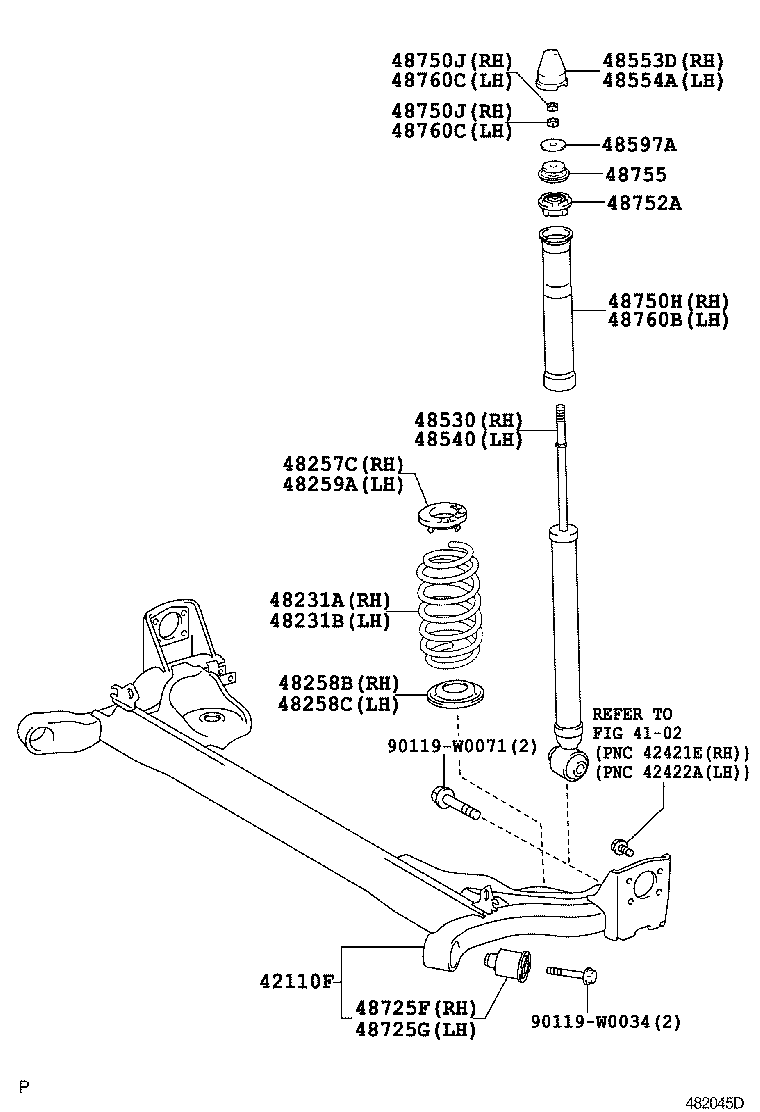

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-0H010 |
WNB10 |
1 | ||
| 42110-0H010 |
KGB10,WNB10 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-0H020 |
WNB10 |
1 | ||
| 48231-0H020 |
KGB10,WNB10 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-0H020 |
KGB10,WNB10 |
1 | ||
| 48231-0H020 |
WNB10 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-0H010 |
KGB10,WNB10 |
1 | ||
| 48257-0H010 |
WNB10 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-0H010 |
KGB10,WNB10 |
1 | ||
| 48258-0H010 |
WNB10 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-0H010 |
WNB10 |
1 | ||
| 48258-0H010 |
KGB10,WNB10 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-0H010 |
KGB10,WNB10 |
1 | ||
| 48257-0H010 |
WNB10 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-0H010 |
KGB10,WNB10 MARK 48530-0H010 |
1 | ||
| 48530-0H010 |
WNB10 MARK 48530-0H010 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-0H010 |
WNB10 MARK 48530-0H010 |
1 | ||
| 48530-0H010 |
KGB10,WNB10 MARK 48530-0H010 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-52010 |
WNB10 |
1 | ||
| 48553-52010 |
KGB10,WNB10 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-52010 |
KGB10,WNB10 |
1 | ||
| 48553-52010 |
WNB10 |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
KGB10,WNB10 |
2 | ||
| 90201-10320 |
WNB10 |
2 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-0H010 |
KGB10,WNB10 |
1 | ||
| 48725-0H010 |
WNB10 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-0H010 |
WNB10 |
1 | ||
| 48725-0H010 |
KGB10,WNB10 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-0H010 |
KGB10,WNB10 |
1 | ||
| 48750-0H010 |
WNB10 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94130-61000 |
WNB10 |
2 | ||
| 94130-61000 |
KGB10,WNB10 |
2 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94130-61000 |
WNB10 |
2 | ||
| 94130-61000 |
KGB10,WNB10 |
2 | ||
| 48752A - STOPPER, REAR SUSPENSION SUPPORT | ||||
| 48752-0H010 |
KGB10,WNB10 |
2 | ||
| 48752-0H010 |
WNB10 |
2 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-0H010 |
KGB10,WNB10 |
2 | ||
| 48755-0H010 |
WNB10 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-0H010 |
KGB10,WNB10 |
1 | ||
| 48750-0H010 |
WNB10 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94130-61000 |
KGB10,WNB10 |
2 | ||
| 94130-61000 |
WNB10 |
2 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94130-61000 |
KGB10,WNB10 |
2 | ||
| 94130-61000 |
WNB10 |
2 | ||
| Common parts | ||||
| 90119-W0034 | ||||
| 90119-W0071 | ||||
| Linked diagrams | ||||
| 4102 | ||||
