WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )RHD

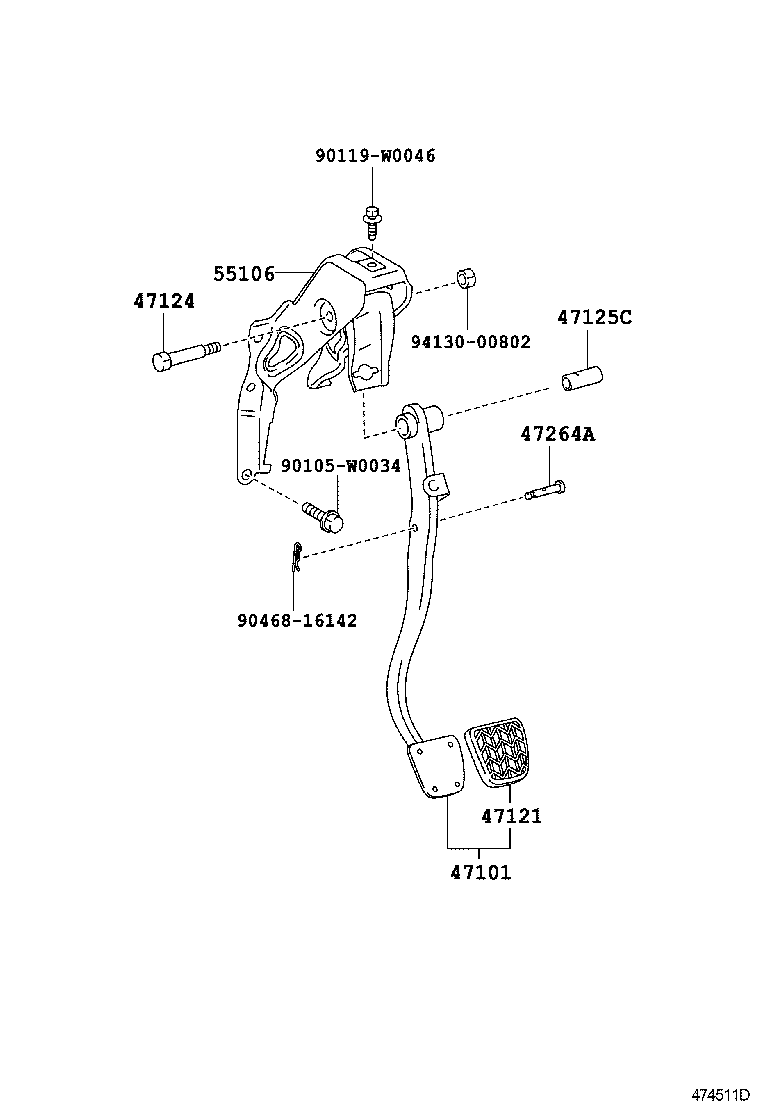

Click highlighted areas on diagram

diagram 47101 47121 47124 47125C 47264A 55106 90105W0034 90119W0046 9046816142 9413000802
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-0H020

KGB10,WNB10..RHD

 1
47121 - PAD, BRAKE PEDAL
31321-0H010

KGB10,WNB10

 1
47125C - COLLAR(FOR BRAKE PEDAL BRACKET)
47144-0H020

KGB10,WNB10..RHD

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

WNB10

 1
90249-08051

KGB10,WNB10

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-0H040

KGB10,WNB10..RHD

 1
Common parts
90105-W0034
90119-W0046
90468-16142
94130-00802
