WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

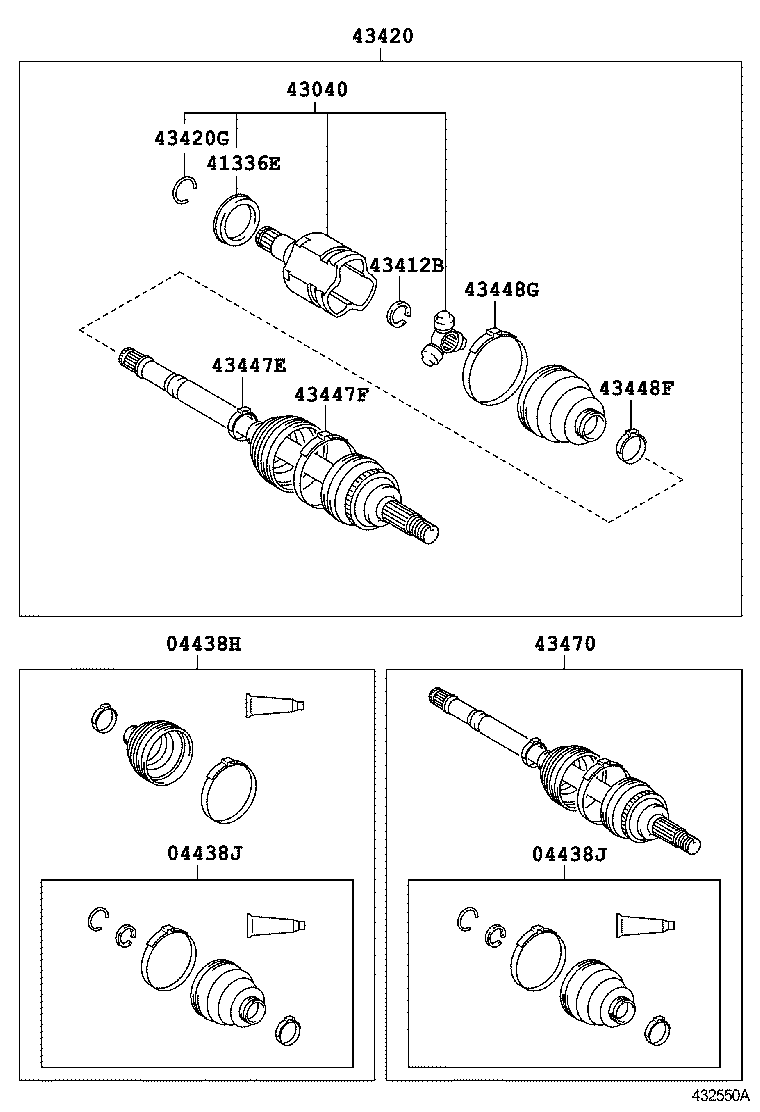

Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-0H030 |
WNB10 |
1 | ||
| 04428-0H030 |
WNB10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-0H011 |
KGB10,WNB10 |
1 | ||
| 04438-0H011 |
WNB10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-0H011 |
KGB10,WNB10 |
1 | ||
| 04438-0H011 |
WNB10 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-0H010 |
WNB10 |
1 | ||
| 41336-0H010 |
KGB10,WNB10 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-0H010 |
KGB10,WNB10 |
1 | ||
| 43403-0H010 |
WNB10 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-0H010 |
KGB10,WNB10 |
1 | ||
| 43425-0H010 |
WNB10 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0H020 |
WNB10 |
1 | ||
| 43420-0H020 |
WNB10 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-0H040 |
KGB10,WNB10 |
1 | ||
| 43425-0H040 |
WNB10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-0H060 |
WNB10 |
1 | ||
| 42345-0H060 |
WNB10 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-0H050 |
WNB10 |
1 | ||
| 42345-0H050 |
WNB10 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0H020 |
KGB10,WNB10 |
1 | ||
| 42345-0H020 |
WNB10 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0H010 |
WNB10 |
1 | ||
| 42345-0H010 |
KGB10,WNB10 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09D00 |
WNB10 |
1 | ||
| 43470-09D00 |
WNB10 |
1 | ||
(0502- )WNB10

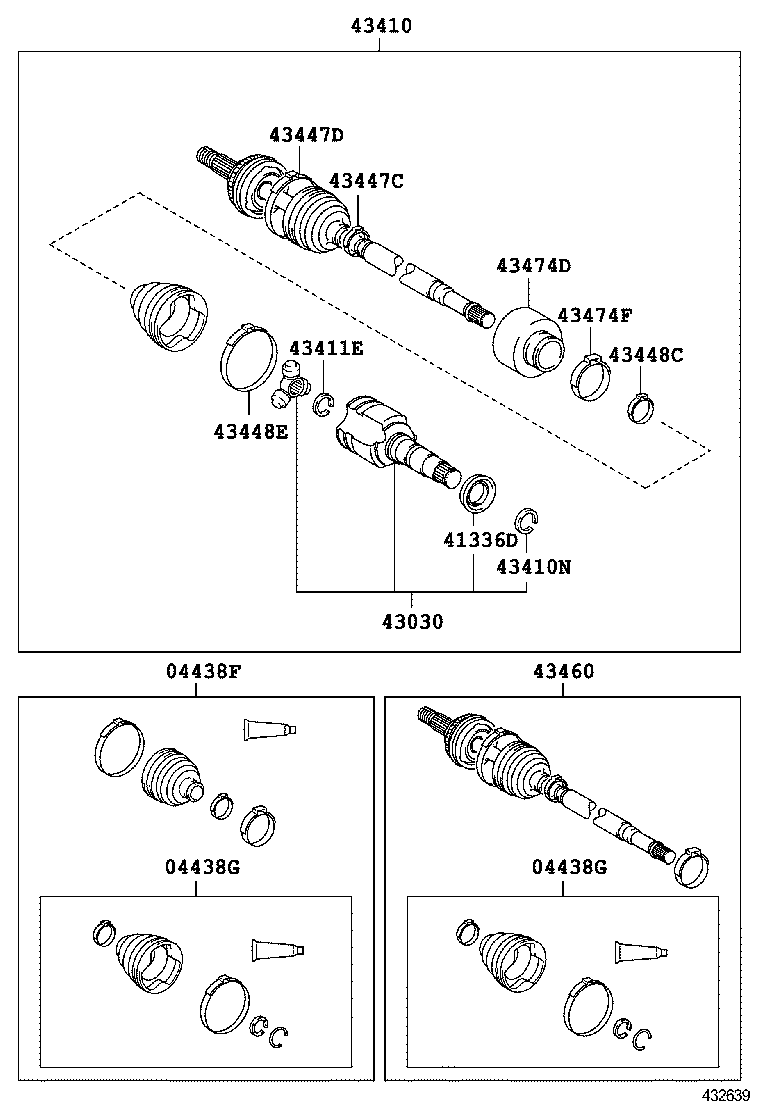

Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-0H030 |
WNB10 |
1 | ||
| 04427-0H030 |
WNB10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-0H011 |
KGB10,WNB10 |
1 | ||
| 04437-0H011 |
WNB10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-0H011 |
KGB10,WNB10 |
1 | ||
| 04437-0H011 |
WNB10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-0H010 |
WNB10 |
1 | ||
| 41336-0H010 |
KGB10,WNB10 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-0H010 |
WNB10 |
1 | ||
| 43403-0H010 |
KGB10,WNB10 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0H020 |
WNB10 |
1 | ||
| 43410-0H020 |
WNB10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 43425-0H040 |
KGB10,WNB10 |
1 | ||
| 43425-0H040 |
WNB10 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-0H010 |
WNB10 |
1 | ||
| 43425-0H010 |
KGB10,WNB10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0H060 |
WNB10 |
1 | ||
| 42345-0H060 |
WNB10 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0H050 |
WNB10 |
1 | ||
| 42345-0H050 |
WNB10 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0H020 |
WNB10 |
1 | ||
| 42345-0H020 |
KGB10,WNB10 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0H010 |
KGB10,WNB10 |
1 | ||
| 42345-0H010 |
WNB10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09C90 |
WNB10 |
1 | ||
| 43460-09C90 |
WNB10 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0H010 |
WNB10 |
1 | ||
| 43474-0H010 |
WNB10 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-0H070 |
WNB10 |
1 | ||
| 42345-0H070 |
WNB10 |
1 | ||
