WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

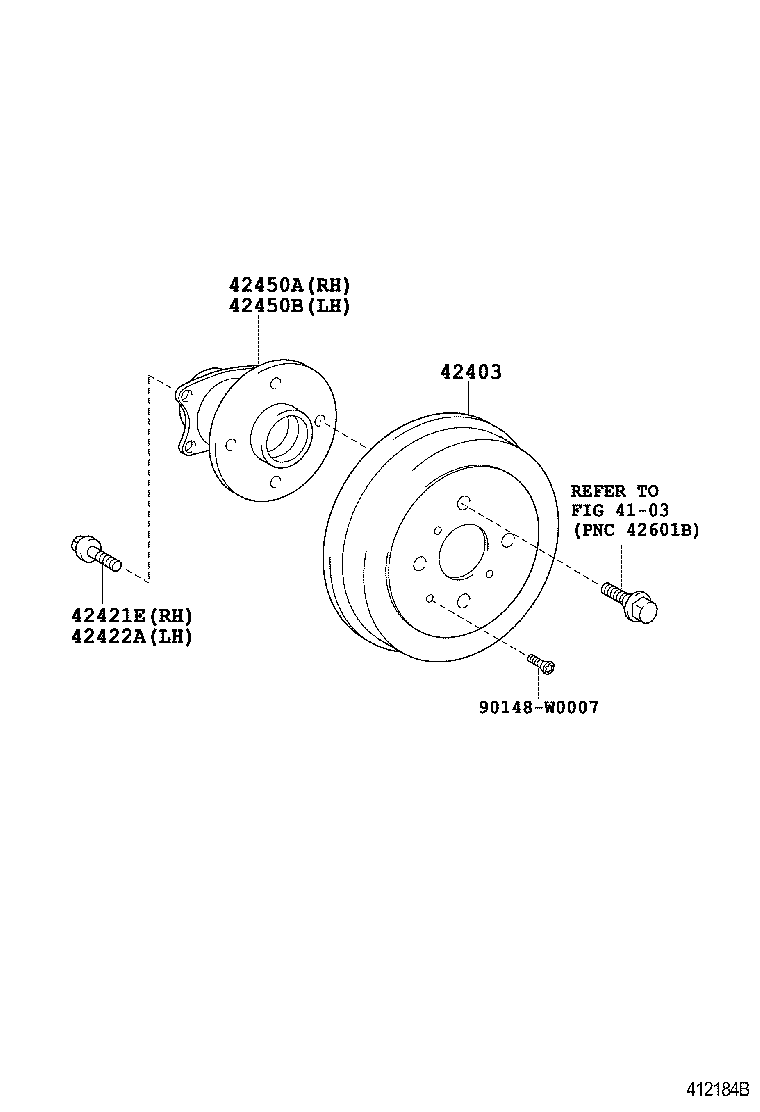

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-0H010 |
WNB10 |
2 | ||
| 42431-0H010 |
KGB10,WNB10 |
2 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-W0002 |
KGB10,WNB10 |
4 | ||
| 90105-W0002 |
WNB10 |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-W0002 |
KGB10,WNB10 |
4 | ||
| 90105-W0002 |
WNB10 |
4 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-0H010 |
WNB10 |
1 | ||
| 42450-0H010 |
KGB10,WNB10 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-0H010 |
WNB10 |
1 | ||
| 42450-0H010 |
KGB10,WNB10 |
1 | ||
| Common parts | ||||
| 90148-W0007 | ||||
| Linked diagrams | ||||
| 4103 | ||||
