WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )5F

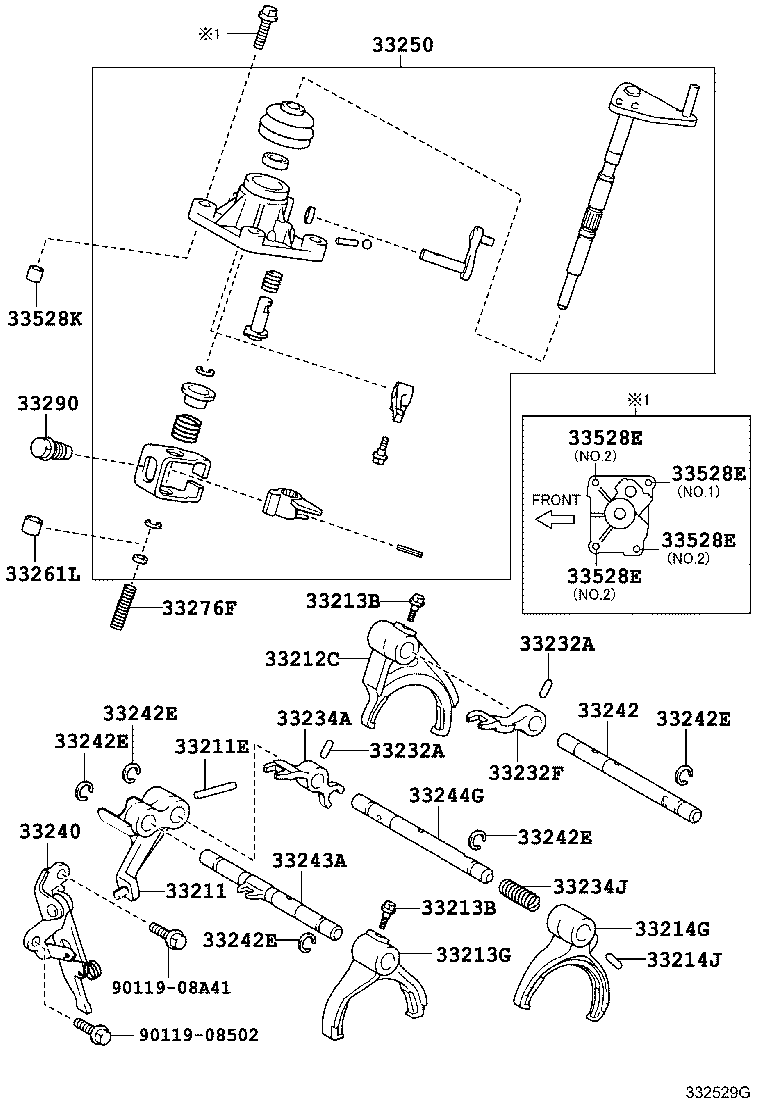

Click highlighted areas on diagram

C551,C552

diagram 33211 33211E 33212C 33213B 33213B 33213G 33214G 33214J 33232A 33232A 33232F 33234A 33234J 33240 33242 33242E 33242E 33242E 33242E 33242E 33243A 33244G 33250 33261L 33276F 33290 33528E 33528E 33528E 33528E 33528K 9011908502 9011908A41
Part # Description Qty Price
33211 - FORK, REVERSE SHIFT
33211-0H010

WNB10

 1
33211-0H010

WNB10

 1
33211E - PIN, STRAIGHT(FOR REVERSE SHIFT FORK)
90250-W0004

WNB10

 1
90250-W0004

WNB10

 1
33212C - FORK, GEAR SHIFT, NO.1
33212-0H010

KGB10,WNB10

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06115

WNB10

 2
90105-06115

WNB10

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06115

WNB10

 2
90105-06115

WNB10

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-0H010

WNB10

 1
33213-0H010

WNB10

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-0H010

WNB10

 1
33214-0H010

WNB10

 1
33214J - PIN, STRAIGHT(FOR 5TH SHIFT FORK)
90250-W0003

WNB10

 1
90250-W0003

WNB10

 1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-05001

WNB10

 2
90254-05001

WNB10

 2
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-05001

WNB10

 2
90254-05001

WNB10

 2
33232F - HEAD, GEAR SHIFT, NO.1
33232-52010

WNB10;KGB10..5FS

 1
33234A - HEAD, GEAR SHIFT, NO.3
33234-52010

WNB10

 1
33234-52010

WNB10

 1
33234J - SPRING, COMPRESSION (FOR SHIFT RETURN)
90501-W0003

WNB10

 1
90501-W0003

WNB10

 1
33240 - BRACKET ASSY, REVERSE SHIFT ARM
33240-52010

WNB10

 1
33240-52010

WNB10

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-0H010

WNB10

 1
33242-0H010

WNB10

 1
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

WNB10

 5
90520-12003

WNB10

 5
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

WNB10

 5
90520-12003

WNB10

 5
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

WNB10

 5
90520-12003

WNB10

 5
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

WNB10

 5
90520-12003

WNB10

 5
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

WNB10

 5
90520-12003

WNB10

 5
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-0H010

KGB10,WNB10..5F

 1
33244G - SHAFT, GEAR SHIFT FORK, NO.3
33244-0H010

WNB10

 1
33244-0H010

WNB10

 1
33250 - SHAFT ASSY, SHIFT & SELECT LEVER
33250-0H010

KGB10,WNB10..5F

 1
33250-0H010

KGB10,WNB10..5F

 1
33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
90384-W0003

WNB10

 1
90384-W0003

WNB10

 1
33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
90501-W0002

WNB10

 1
90501-W0002

WNB10

 1
33290 - BALL ASSY, LOCK, NO.1
33290-0H020

WNB10

 1
33290-0H020

WNB10

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-08429

KGB10,WNB10..5F

*8-1.25X35-30,NO.1 & NO.2

 4
90119-08429

KGB10,WNB10..5F

*8-1.25X35-30,NO.1 & NO.2

 4
90119-08429

WNB10

*8-1.25X35-30,NO.1

 1
91611-60835

WNB10

*8-1.25PX35-30,NO.2

 3
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-08429

KGB10,WNB10..5F

*8-1.25X35-30,NO.1 & NO.2

 4
90119-08429

KGB10,WNB10..5F

*8-1.25X35-30,NO.1 & NO.2

 4
90119-08429

WNB10

*8-1.25X35-30,NO.1

 1
91611-60835

WNB10

*8-1.25PX35-30,NO.2

 3
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-08429

KGB10,WNB10..5F

*8-1.25X35-30,NO.1 & NO.2

 4
90119-08429

KGB10,WNB10..5F

*8-1.25X35-30,NO.1 & NO.2

 4
90119-08429

WNB10

*8-1.25X35-30,NO.1

 1
91611-60835

WNB10

*8-1.25PX35-30,NO.2

 3
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-08429

KGB10,WNB10..5F

*8-1.25X35-30,NO.1 & NO.2

 4
90119-08429

KGB10,WNB10..5F

*8-1.25X35-30,NO.1 & NO.2

 4
90119-08429

WNB10

*8-1.25X35-30,NO.1

 1
91611-60835

WNB10

*8-1.25PX35-30,NO.2

 3
33528K - PIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
90253-11001

WNB10

 2
90253-11001

WNB10

 2
Common parts
90119-08502
90119-08A41
