WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0505- )2WZTV

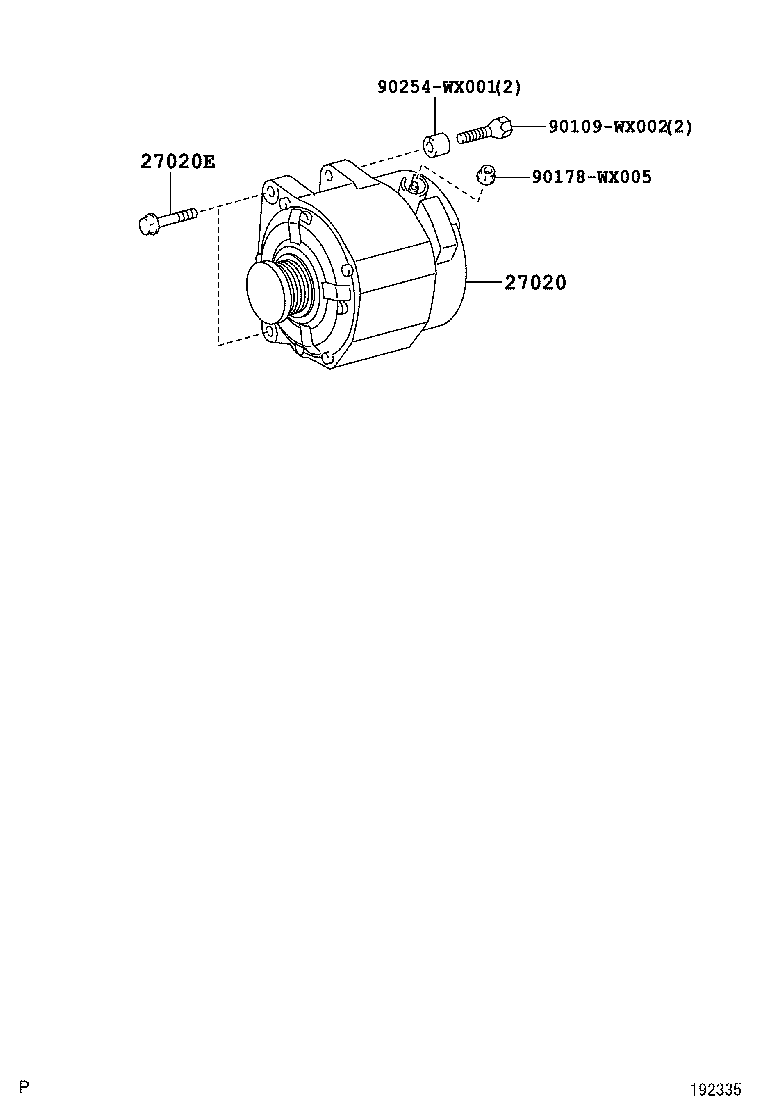

Click highlighted areas on diagram

12V 90A,150A

diagram 27020 27020E 90109WX002 90178WX005 90254WX001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-YV010

2WZTV..WNB10

12V 90A

 1
27060-YV010

2WZTV..WNB10

12V 90A

 1
27020E - BOLT(FOR ALTERNATOR)
90109-WX001

2WZTV..WNB10

 2
90109-WX001

2WZTV..WNB10

 2
Common parts
90109-WX002
90178-WX005
90254-WX001
