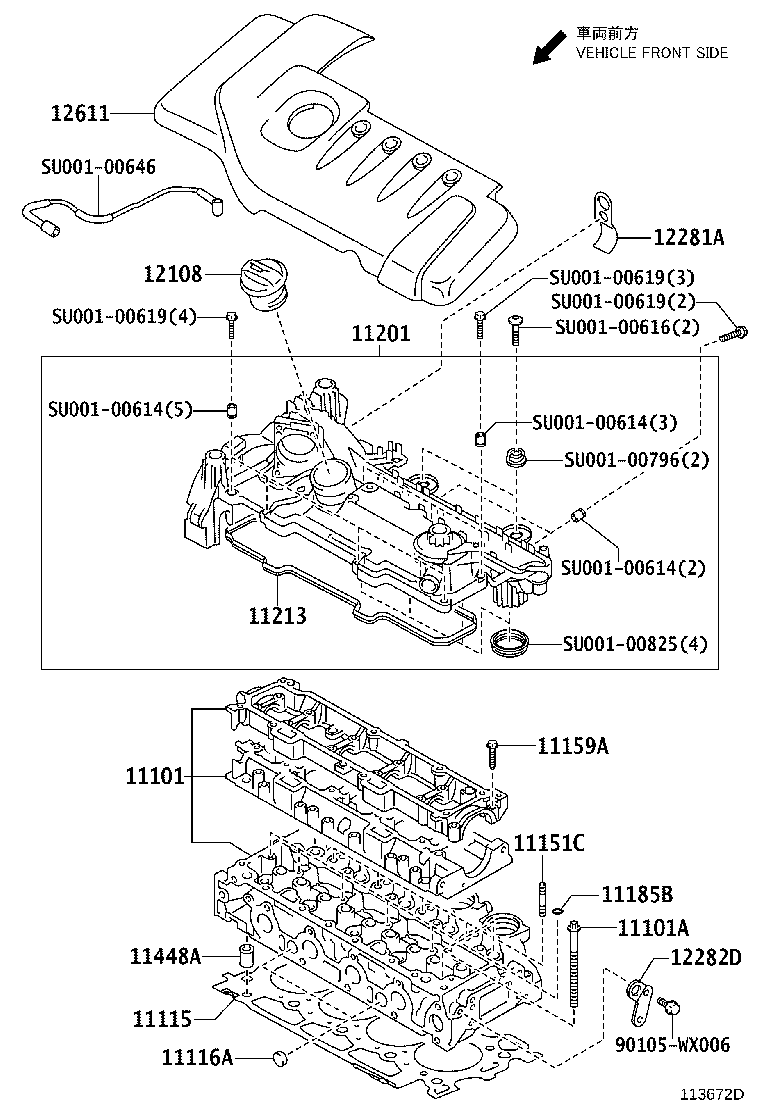

WNB10R-AHMGXW (2005)
Toyota Aygo
(0505- )2WZTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| SU001-00492 |
2WZTV..WNB10 |
1 | ||
| SU001-00492 |
2WZTV..WNB10 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| SU001-00795 |
2WZTV..WNB10 |
10 | ||
| SU001-00745 |
2WZTV..WNB10 |
10 | ||
| SU001-00874 |
2WZTV..WNB10 |
10 | ||
| SU001-00795 |
2WZTV..WNB10 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| SU001-00493 |
2WZTV..WNB10 T=1.25 |
1 | ||
| SU001-00496 |
2WZTV..WNB10 T=1.40 |
1 | ||
| SU001-00494 |
2WZTV..WNB10 T=1.30 |
1 | ||
| SU001-00495 |
2WZTV..WNB10 T=1.35 |
1 | ||
| SU001-00497 |
2WZTV..WNB10 T=1.45 |
1 | ||
| SU001-00493 |
2WZTV..WNB10 T=1.25 |
1 | ||
| SU001-00496 |
2WZTV..WNB10 T=1.40 |
1 | ||
| SU001-00497 |
2WZTV..WNB10 T=1.45 |
1 | ||
| SU001-00495 |
2WZTV..WNB10 T=1.35 |
1 | ||
| SU001-00494 |
2WZTV..WNB10 T=1.30 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| SU001-00500 |
2WZTV..WNB10 |
2 | ||
| SU001-00500 |
2WZTV..WNB10 |
2 | ||
| 11151C - BOLT, STUD(FOR CAMSHAFT CAP) | ||||
| SU001-00505 |
2WZTV..WNB10 |
4 | ||
| SU001-00505 |
2WZTV..WNB10 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| SU001-00502 |
2WZTV..WNB10 |
25 | ||
| SU001-00502 |
2WZTV..WNB10 |
25 | ||
| 11185B - RING, O | ||||
| SU001-00503 |
2WZTV..WNB10 |
5 | ||
| SU001-00821 |
2WZTV..WNB10 |
5 | ||
| SU001-00821 |
2WZTV..WNB10 |
5 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| SU001-00789 |
2WZTV..WNB10 |
1 | ||
| SU001-00789 |
2WZTV..WNB10 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| SU001-00822 |
2WZTV..WNB10 |
1 | ||
| SU001-00611 |
2WZTV..WNB10 |
1 | ||
| SU001-00822 |
2WZTV..WNB10 |
1 | ||
| 11448A - ORIFICE, CYLINDER HEAD OIL | ||||
| SU001-00499 |
2WZTV..WNB10 |
1 | ||
| SU001-00499 |
2WZTV..WNB10 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| SU001-00612 |
2WZTV..WNB10 |
1 | ||
| SU001-00612 |
2WZTV..WNB10 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| SU001-00607 |
2WZTV..WNB10 |
1 | ||
| SU001-00607 |
2WZTV..WNB10 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| SU001-00608 |
2WZTV..WNB10 |
1 | ||
| SU001-00608 |
2WZTV..WNB10 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12601-YV010 |
2WZTV..WNB10 |
1 | ||
| 12601-YV010 |
2WZTV..WNB10 |
1 | ||
| Common parts | ||||
| 90105-WX006 | ||||
| SU001-00614 | ||||
| SU001-00616 | ||||
| SU001-00619 | ||||
| SU001-00646 | ||||
| SU001-00796 | ||||
| SU001-00825 | ||||
