WNB10L-AGMGXW (2005)

Toyota Aygo

Production May 2005 - Dec 2008
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0505- )WNB10..LHD

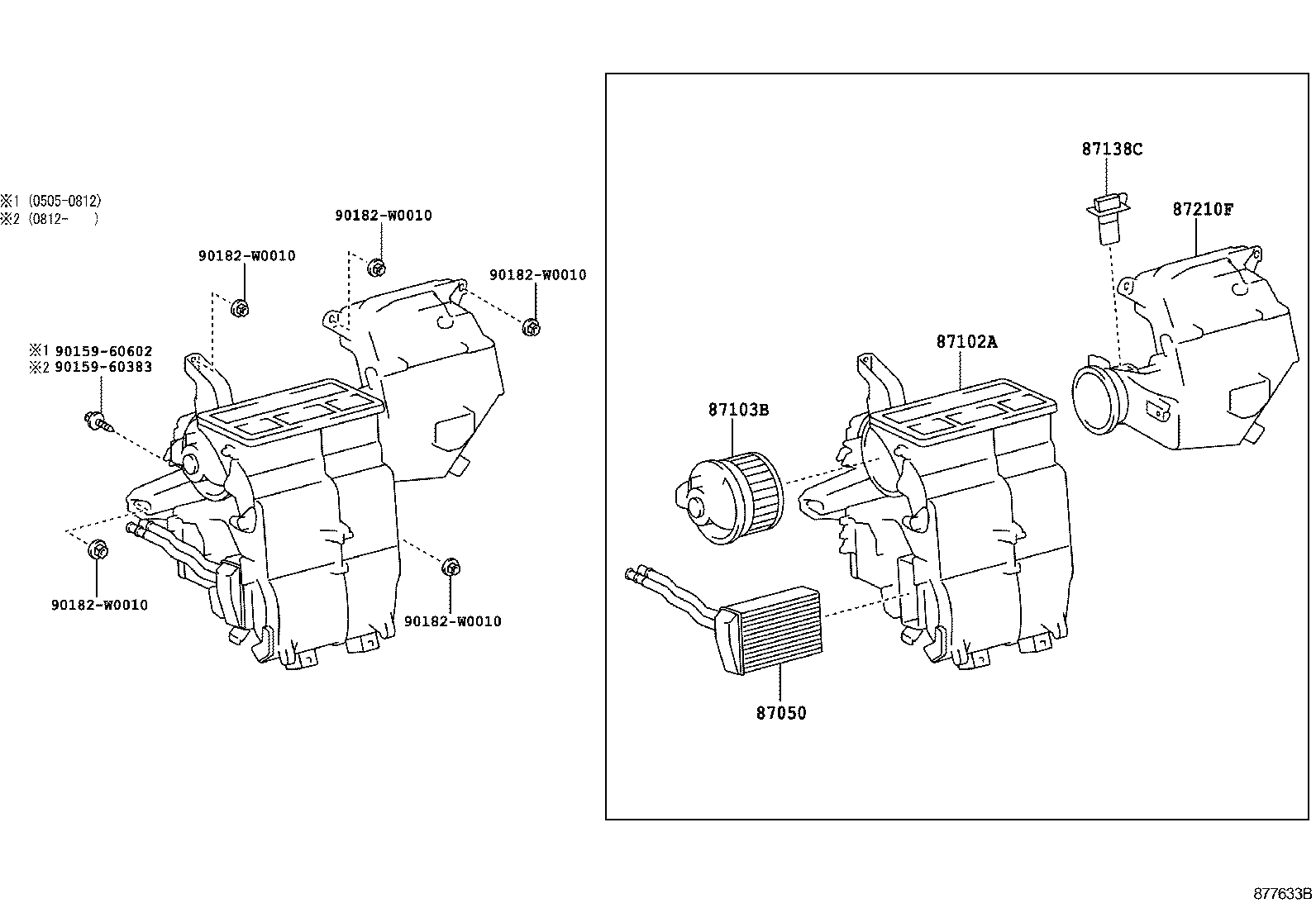

Click highlighted areas on diagram

diagram 87050 87102A 87103B 87138C 87210F 9015960383 9015960602 90182W0010 90182W0010 90182W0010 90182W0010 90182W0010
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0H040

WNB10

 1
87102A - CASE SUB-ASSY, RADIATOR
87102-0H040

WNB10

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0H020

KGB10,WNB10..LHD

 1
87103-0H010

KGB10,WNB10..LHD

FRONT AIR CONDITIONER-WITH

 1
87103-0H010

KGB10,WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
87138C - RESISTOR, BLOWER
87138-0H010

KGB10,WNB10

 1
87210F - CASE ASSY, AIR DAMPER
87210-0H010

KGB10,WNB10..LHD

FRONT AIR CONDITIONER-WITH

 1
87210-0H010

KGB10,WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
87210-0H020

KGB10,WNB10..LHD

 1
Common parts
90159-60383
90159-60602
90182-W0010

(0505- )WNB10..LHD

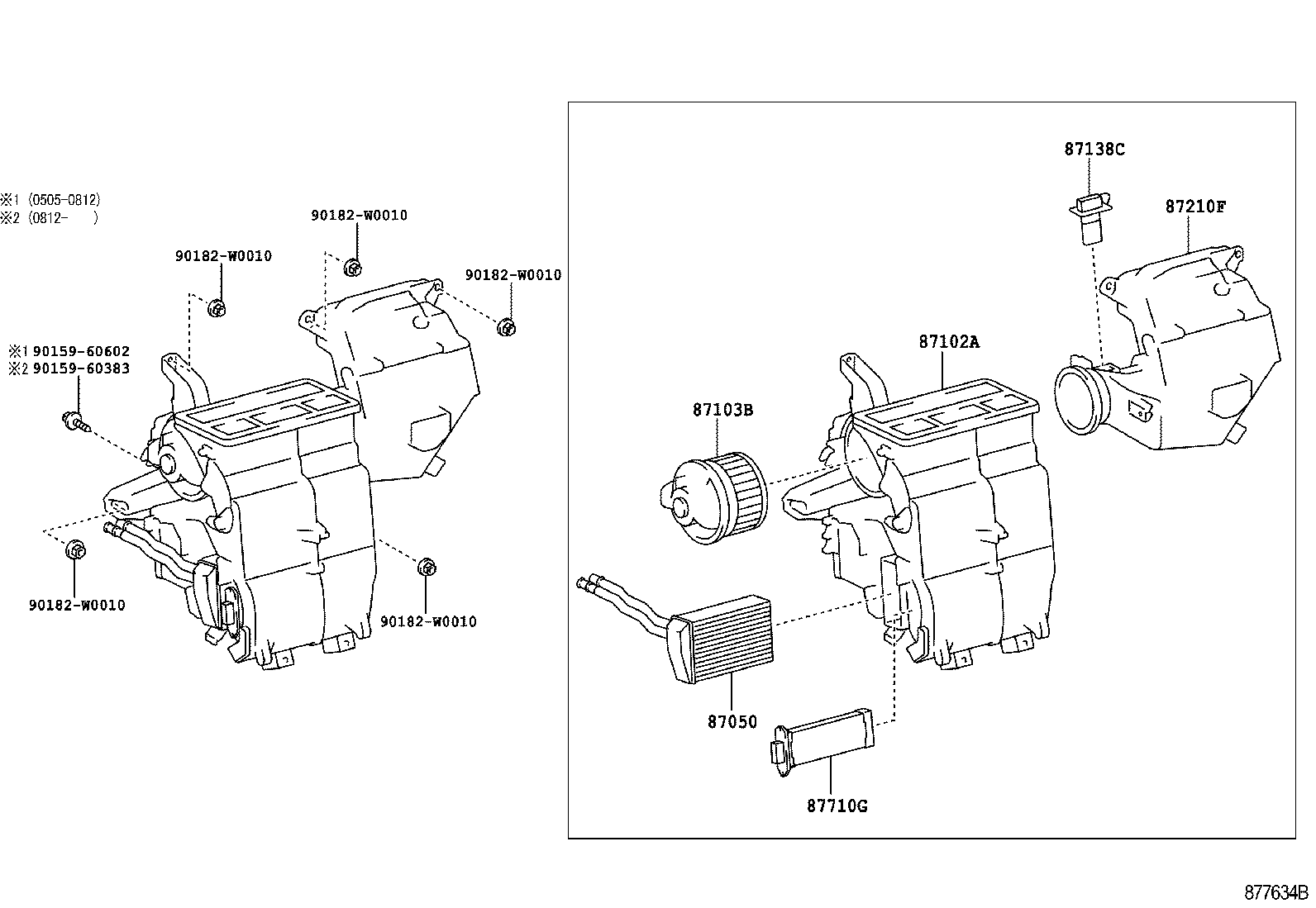

Click highlighted areas on diagram

COLD SPEC

diagram 87050 87102A 87103B 87138C 87210F 87710G 9015960383 9015960602 90182W0010 90182W0010 90182W0010 90182W0010 90182W0010
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0H040

WNB10

 1
87102A - CASE SUB-ASSY, RADIATOR
87102-0H040

WNB10

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0H020

KGB10,WNB10..LHD

 1
87103-0H010

KGB10,WNB10..LHD

FRONT AIR CONDITIONER-WITH

 1
87103-0H010

KGB10,WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
87138C - RESISTOR, BLOWER
87138-0H010

KGB10,WNB10

 1
87210F - CASE ASSY, AIR DAMPER
87210-0H010

KGB10,WNB10..LHD

FRONT AIR CONDITIONER-WITH

 1
87210-0H010

KGB10,WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
87210-0H020

KGB10,WNB10..LHD

 1
87710G - QUICK HEATER ASSY
87710-0H010

WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)

 1
87710-0H010

WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
Common parts
90159-60383
90159-60602
90182-W0010

(0505- )WNB10..LHD

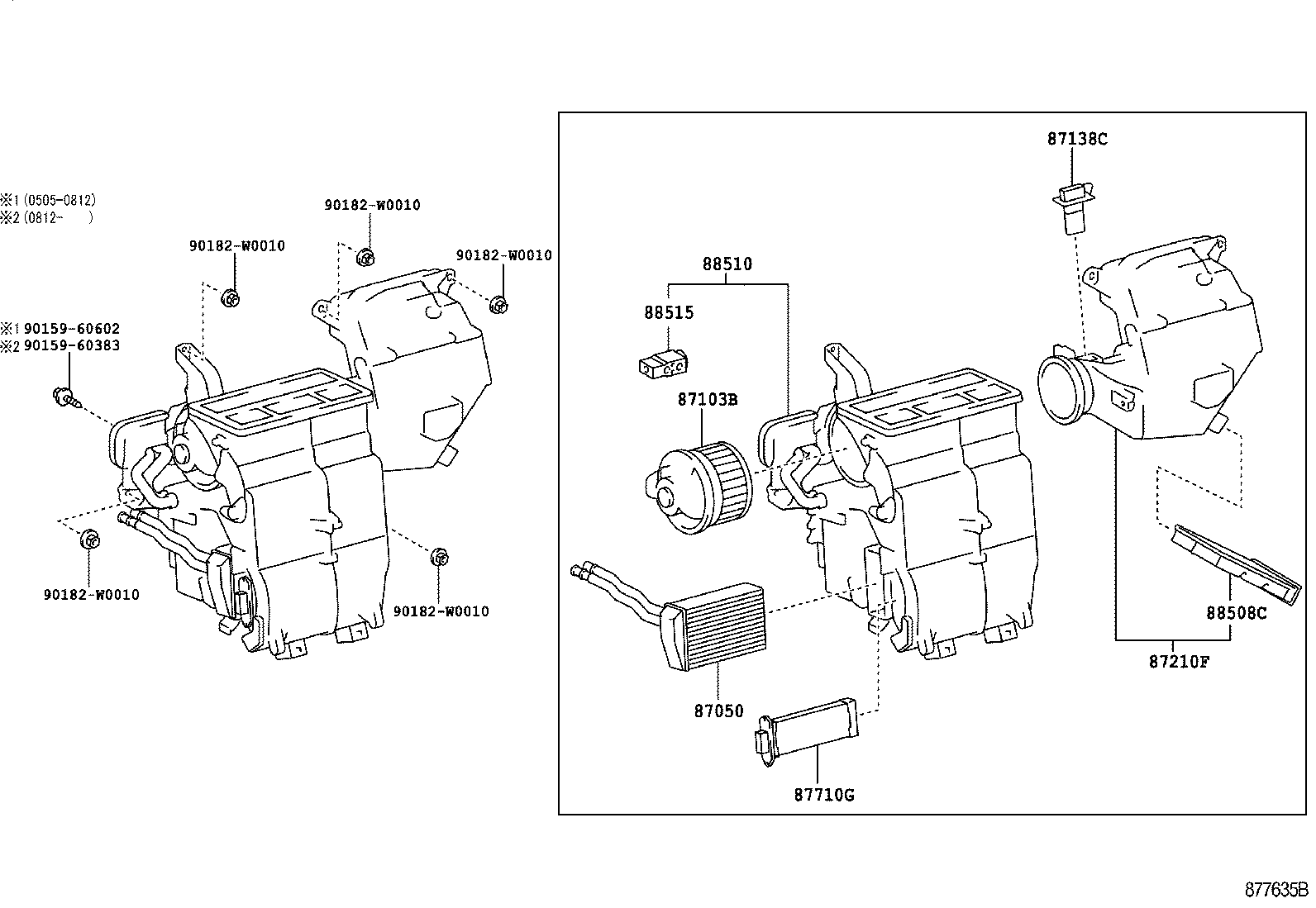

Click highlighted areas on diagram

COLD SPEC & W(AIR CONDITIONER)

diagram 87050 87103B 87138C 87210F 87710G 88508C 88510 88515 9015960383 9015960602 90182W0010 90182W0010 90182W0010 90182W0010 90182W0010
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0H040

WNB10

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0H020

KGB10,WNB10..LHD

 1
87103-0H010

KGB10,WNB10..LHD

FRONT AIR CONDITIONER-WITH

 1
87103-0H010

KGB10,WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
87138C - RESISTOR, BLOWER
87138-0H010

KGB10,WNB10

 1
87210F - CASE ASSY, AIR DAMPER
87210-0H010

KGB10,WNB10..LHD

FRONT AIR CONDITIONER-WITH

 1
87210-0H010

KGB10,WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
87210-0H020

KGB10,WNB10..LHD

 1
87710G - QUICK HEATER ASSY
87710-0H010

WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)

 1
87710-0H010

WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
88508C - FILTER SUB-ASSY, AIR
88508-0H010

KGB10,WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
88508-0H010

KGB10,WNB10

FRONT AIR CONDITIONER-WITH

 1
88510 - UNIT ASSY, COOLER
88510-0H040

WNB10

FRONT AIR CONDITIONER-WITH

 1
88510-0H040

WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
88515 - VALVE, COOLER EXPANSION
88515-0H010

KGB10,WNB10..LHD

COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH

 1
88515-0H010

KGB10,WNB10

FRONT AIR CONDITIONER-WITH

 1
Common parts
90159-60383
90159-60602
90182-W0010
