WNB10L-AGMGXW (2005)
Toyota Aygo

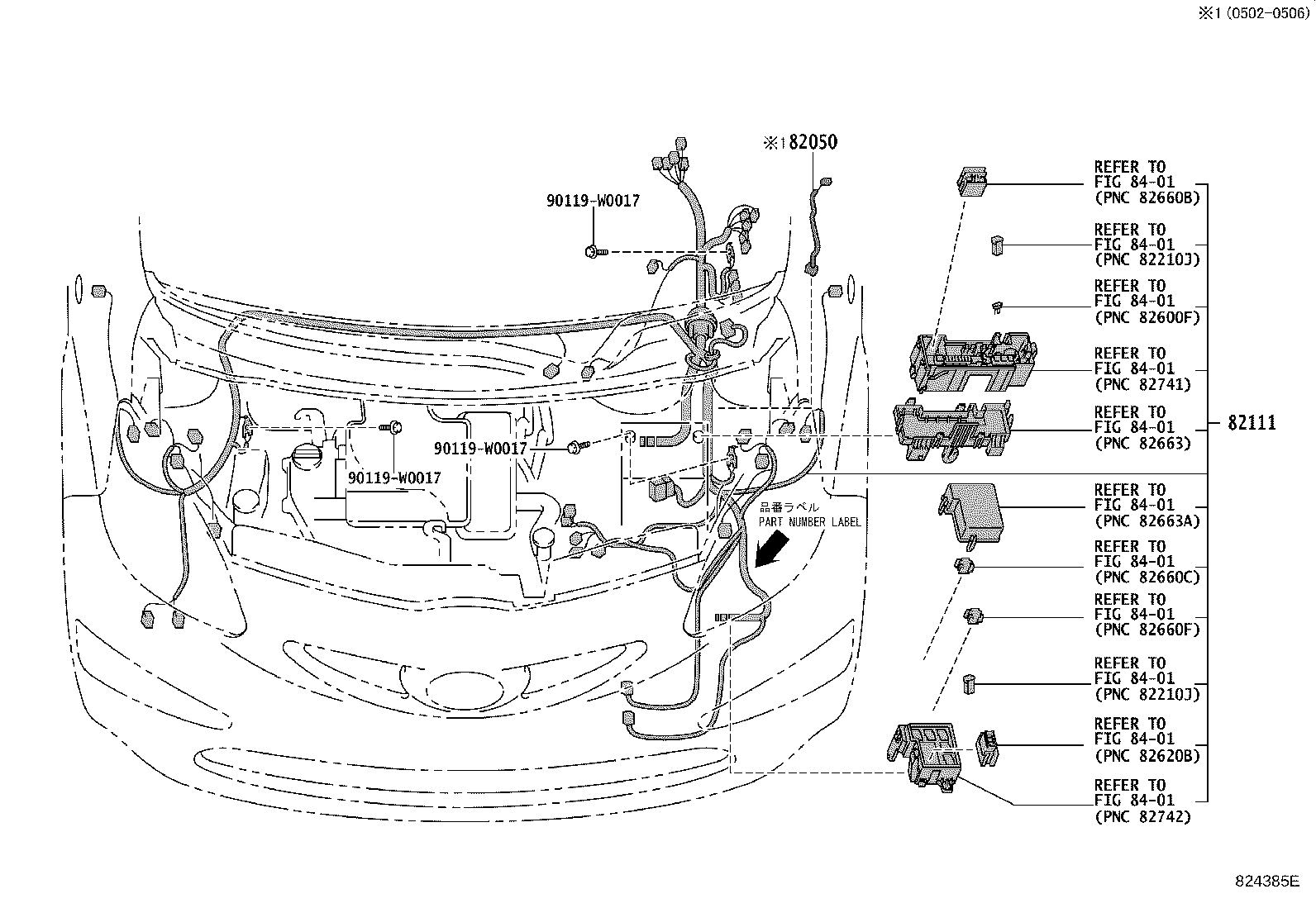

ILLUST NO. 1 OF 7(0505- )WNB10..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-0H010 |
KGB10,WNB10 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0H130 |
WNB10..LHD COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&DAYTIME RUNNING LIGHT SYSTEM-WITH&BATTERY-L2-640A,60AH |
1 | ||
| 82111-0H100 |
WNB10..LHD COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&BATTERY-L2-640A,60AH |
1 | ||
| 82111-0H140 |
WNB10..LHD COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L2-640A,60AH |
1 | ||
| 82111-0H110 |
WNB10..LHD FRONT AIR CONDITIONER-WITH |
1 | ||
| 82111-0H120 |
WNB10..LHD COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&FRONT AIR CONDITIONER-WITH&BATTERY-L2-640A,60AH |
1 | ||
| 82111-0H090 |
WNB10..LHD |
1 | ||
| 82111-0H570 |
WNB10..LHD WITH(VSC) |
1 | ||
| 82111-0H610 |
WNB10..LHD COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&WITH(VSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH&BATTERY-L2-640A,60AH |
1 | ||
| 82111-0H620 |
WNB10..LHD COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&WITH(VSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L2-640A,60AH |
1 | ||
| 82111-0H590 |
WNB10..LHD WITH(VSC)&FRONT AIR CONDITIONER-WITH |
1 | ||
| 82111-0H580 |
WNB10..LHD COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&WITH(VSC)&BATTERY-L2-640A,60AH |
1 | ||
| 82111-0H600 |
WNB10..LHD COLD AREA SPEC=WITH(WITHOUT REAR DUCT)&WITH(VSC)&FRONT AIR CONDITIONER-WITH&BATTERY-L2-640A,60AH |
1 | ||
| 82111-0H090 |
WNB10..LHD PART NUMBER LABEL=82111-0H090 |
1 | ||
| 82111-0H100 |
WNB10..LHD PART NUMBER LABEL=82111-0H100 |
1 | ||
| 82111-0H140 |
WNB10..LHD PART NUMBER LABEL=82111-0H140 |
1 | ||
| 82111-0H120 |
WNB10..LHD PART NUMBER LABEL=82111-0H120 |
1 | ||
| 82111-0H110 |
WNB10..LHD PART NUMBER LABEL=82111-0H110 |
1 | ||
| 82111-0H130 |
WNB10..LHD PART NUMBER LABEL=82111-0H130 |
1 | ||
| 82111-0H600 |
WNB10..LHD PART NUMBER LABEL=82111-0H600 |
1 | ||
| 82111-0H580 |
WNB10..LHD PART NUMBER LABEL=82111-0H580 |
1 | ||
| 82111-0H610 |
WNB10..LHD PART NUMBER LABEL=82111-0H610 |
1 | ||
| 82111-0H570 |
WNB10..LHD PART NUMBER LABEL=82111-0H570 |
1 | ||
| 82111-0H590 |
WNB10..LHD PART NUMBER LABEL=82111-0H590 |
1 | ||
| 82111-0H620 |
WNB10..LHD PART NUMBER LABEL=82111-0H620 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 8401 | ||||

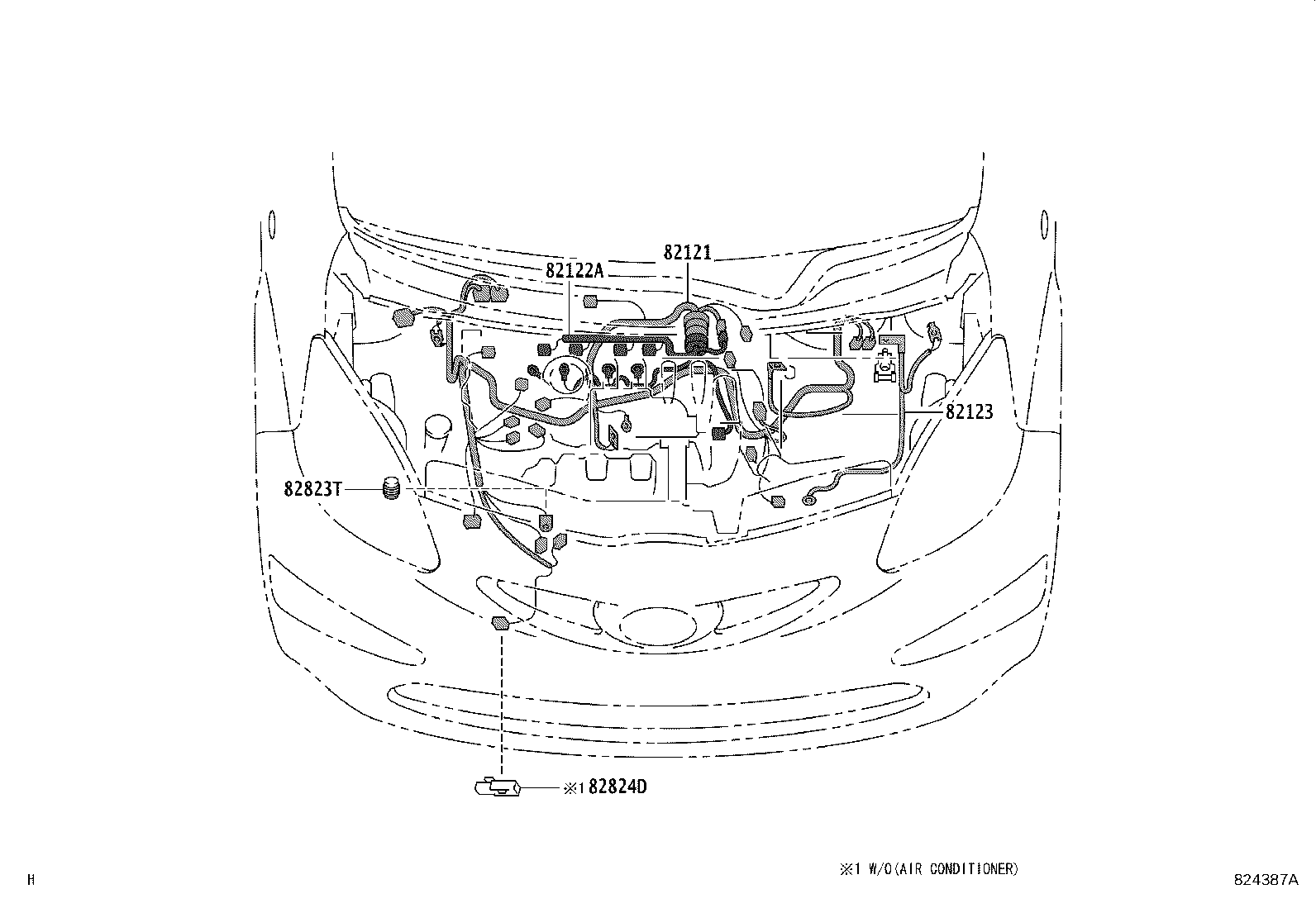

ILLUST NO. 2 OF 7(0505- )WNB10..LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-YV070 |
WNB10..LHD |
1 | ||
| 82121-YV071 |
WNB10..LHD |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| SU001-00692 |
WNB10 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0H020 |
WNB10 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-YV010 |
WNB10 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-0H080 |
WNB10 |
1 | ||
