WNB10L-AGMGXW (2005)
Toyota Aygo
Production
May 2005
-
Dec 2008
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502-1202)LHD

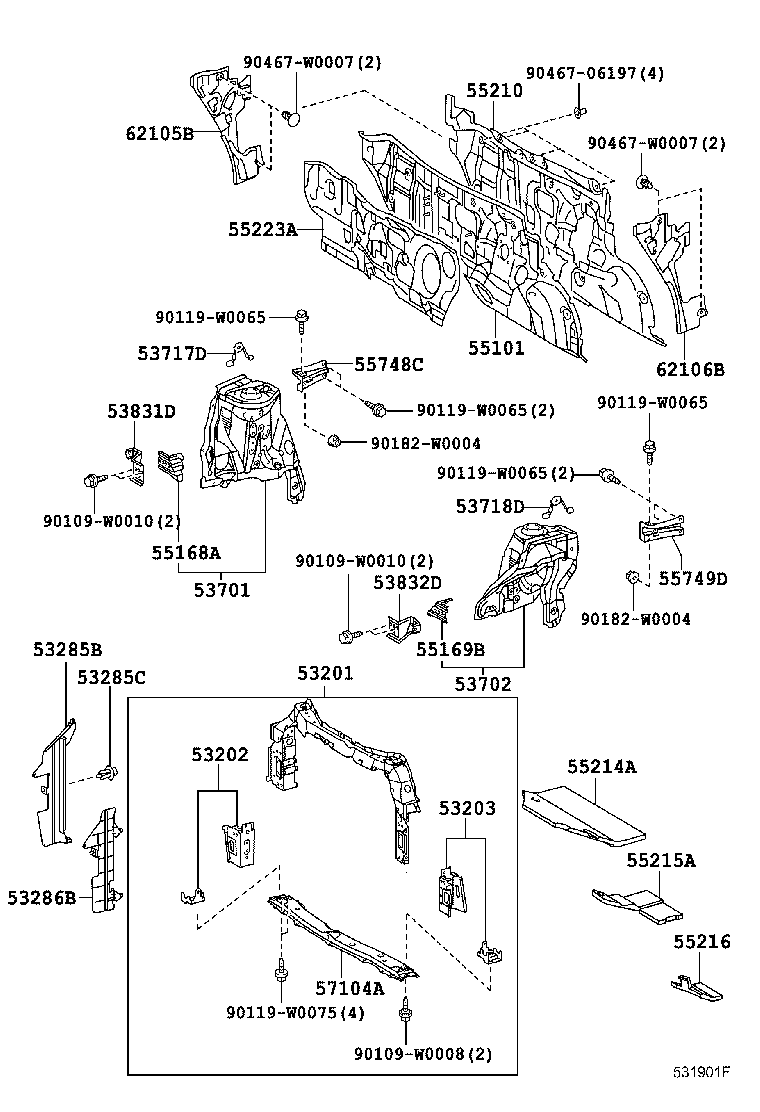

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-0H902 |
KGB10,WNB10 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0H010 |
KGB10,WNB10 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0H010 |
KGB10,WNB10 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-0H040 |
WNB10 |
1 | ||
| 53285-0H040 |
WNB10 FRONT AIR CONDITIONER-WITH |
1 | ||
| 53285-0H010 |
WNB10 |
1 | ||
| 53285C - CLIP(FOR RADIATOR SIDE AIR SEAL) | ||||
| 90467-08217 |
KGB10,WNB10 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-0H010 |
WNB10 FRONT AIR CONDITIONER-WITH |
1 | ||
| 53286-0H010 |
WNB10 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0H010 |
KGB10,WNB10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0H010 |
KGB10,WNB10 |
1 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53717-0H010 |
KGB10,WNB10 |
1 | ||
| 53717-0H010 |
KGB10,WNB10 |
1 | ||
| 53718D - GUSSET, FENDER APRON, LH | ||||
| 53717-0H010 |
KGB10,WNB10 |
1 | ||
| 53717-0H010 |
KGB10,WNB10 |
1 | ||
| 53831D - PANEL, FRONT FENDER SIDE, RH | ||||
| 53831-0H010 |
KGB10,WNB10 |
1 | ||
| 53832D - PANEL, FRONT FENDER SIDE, LH | ||||
| 53832-0H010 |
KGB10,WNB10 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0H040 |
WNB10..LHD;KGB10..LHD..5FS |
1 | ||
| 55101-0H030 |
WNB10..LHD;KGB10..LHD..5FS FRONT AIR CONDITIONER-WITH |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-0H010 |
KGB10,WNB10 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-0H010 |
KGB10,WNB10 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0H010 |
KGB10,WNB10..LHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-0H010 |
KGB10,WNB10..LHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-0H010 |
KGB10,WNB10..LHD |
1 | ||
| 55216 - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-0H010 |
KGB10,WNB10..LHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0H011 |
KGB10,WNB10..LHD..LV1 |
1 | ||
| 55223-0H010 |
KGB10,WNB10..LHD..LV1 |
1 | ||
| 55748C - BRACE,COWL TOP INNER TO PILLAR, RH | ||||
| 55748-0H010 |
KGB10,WNB10 |
1 | ||
| 55749D - BRACE,COWL TOP INNER TO PILLAR, LH | ||||
| 55749-0H010 |
KGB10,WNB10 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-0H010 |
KGB10,WNB10 |
1 | ||
| 62105B - INSULATOR SUB-ASSY, COWL SIDE, RH | ||||
| 62105-0H010 |
KGB10,WNB10 |
1 | ||
| 62106B - INSULATOR SUB-ASSY, COWL SIDE, LH | ||||
| 62106-0H010 |
KGB10,WNB10 |
1 | ||
| Common parts | ||||
| 90109-W0008 | ||||
| 90109-W0010 | ||||
| 90119-W0065 | ||||
| 90119-W0075 | ||||
| 90182-W0004 | ||||
| 90467-06197 | ||||
| 90467-W0007 | ||||
