WNB10L-AGMGXW (2005)

Toyota Aygo

Production May 2005 - Dec 2008
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0505- )WNB10..LHD

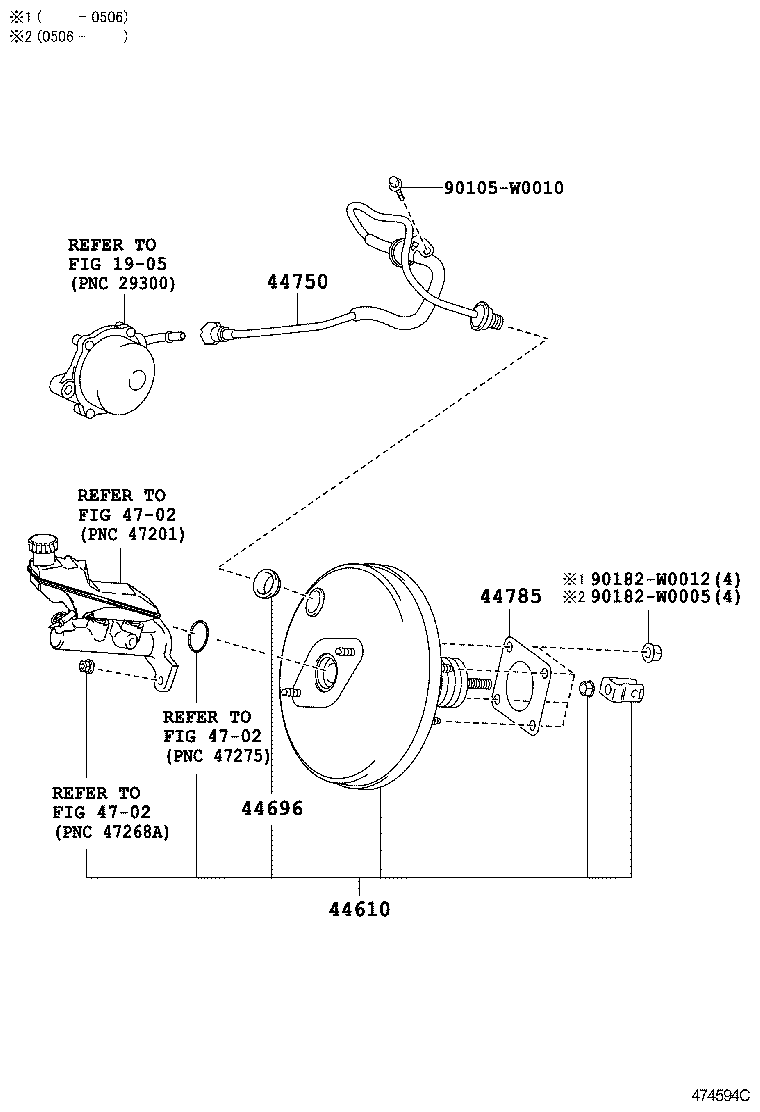

Click highlighted areas on diagram

diagram 1905 44610 44696 44750 44785 4702 4702 4702 90105W0010 90182W0005 90182W0012
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09200

KGB10,WNB10..LHD

 1
44696 - GROMMET, CHECK VALVE
44692-0H010

KGB10,WNB10

 1
44750 - HOSE ASSY, VACUUM
44750-0H030

WNB10..LHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

KGB10,WNB10

 1
Common parts
90105-W0010
90182-W0005
90182-W0012
Linked diagrams
1905
4702
