WNB10L-AGMGXW (2005)

Toyota Aygo

Production May 2005 - Dec 2008
Engine 2WZTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0502-0812)KGB10..LHD ; (0502- )WNB10..LHD

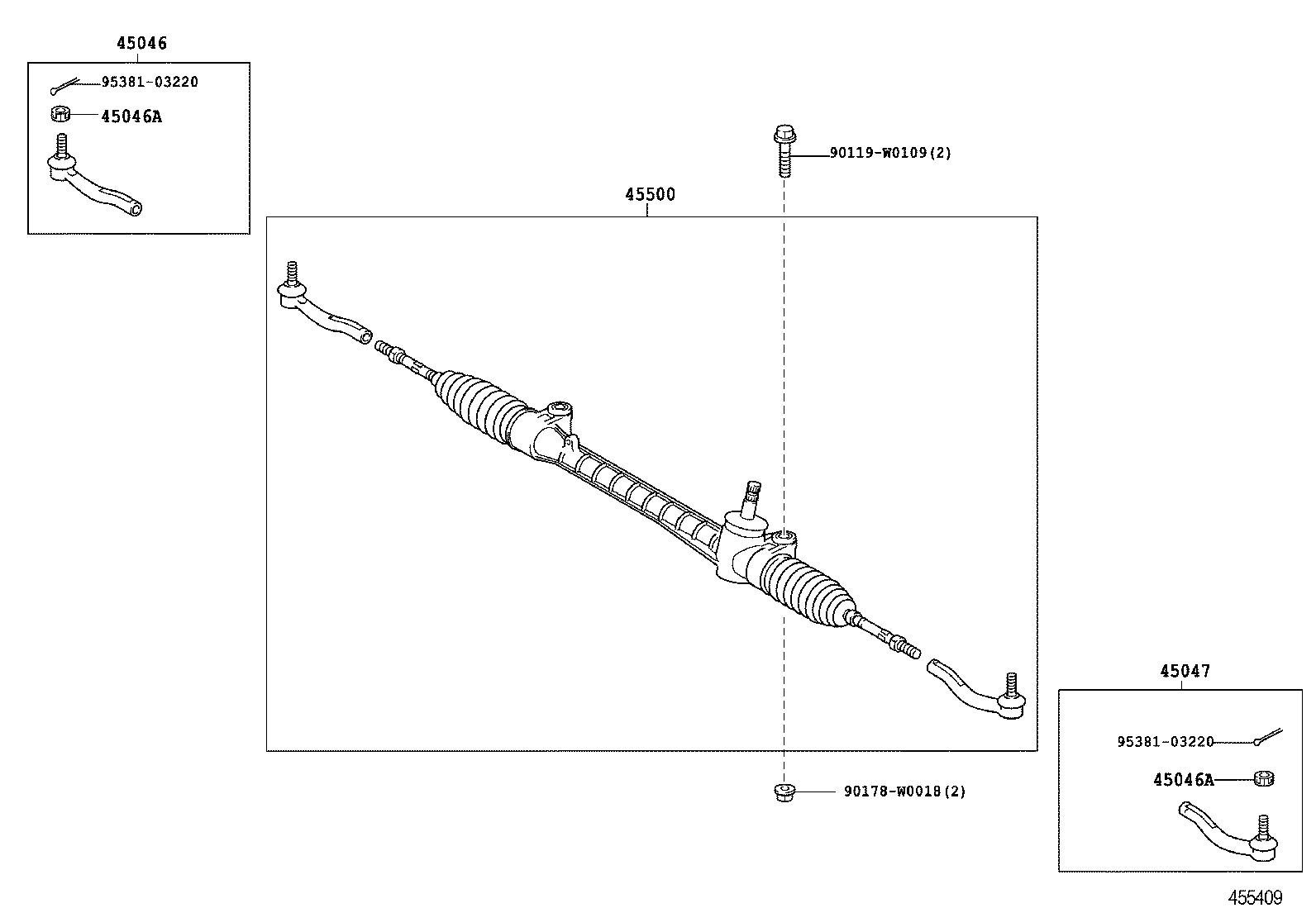

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45500 90119W0109 90178W0018 9538103220 9538103220
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09295

KGB10,WNB10

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KGB10,WNB10

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KGB10,WNB10

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09125

KGB10,WNB10

 1
45500 - LINK ASSY, STEERING
45500-0H010

KGB10,WNB10..LHD..LV1

 1
Common parts
90119-W0109
90178-W0018
95381-03220
