PAB40R-AHMGKW (2014)
Toyota Aygo

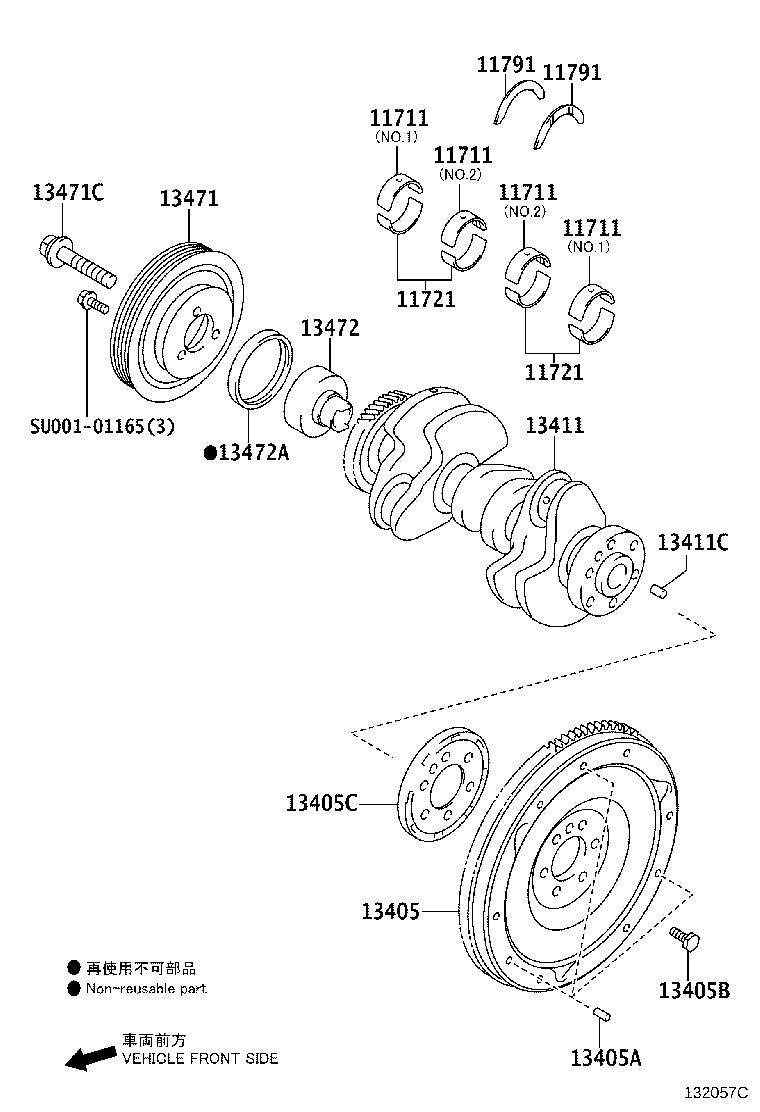

ILLUST NO. 1 OF 5(1405- )1PP
CRANK SHAFT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| SU001-01021 |
1PP..PAB40 NO.1:REFER ILLUST. |
2 | ||
| SU001-01022 |
1PP..PAB40 NO.2:REFER ILLUST. |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| SU001-01021 |
1PP..PAB40 NO.1:REFER ILLUST. |
2 | ||
| SU001-01022 |
1PP..PAB40 NO.2:REFER ILLUST. |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| SU001-01021 |
1PP..PAB40 NO.1:REFER ILLUST. |
2 | ||
| SU001-01022 |
1PP..PAB40 NO.2:REFER ILLUST. |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| SU001-01021 |
1PP..PAB40 NO.1:REFER ILLUST. |
2 | ||
| SU001-01022 |
1PP..PAB40 NO.2:REFER ILLUST. |
2 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| SU001-01026 |
1PP..PAB40 1.783,MAROON |
2 | ||
| SU001-01024 |
1PP..PAB40 1.799,GREEN |
2 | ||
| SU001-01023 |
1PP..PAB40 1.807,YELLOW |
2 | ||
| SU001-01025 |
1PP..PAB40 1.791,BLUE |
2 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| SU001-01026 |
1PP..PAB40 1.783,MAROON |
2 | ||
| SU001-01024 |
1PP..PAB40 1.799,GREEN |
2 | ||
| SU001-01023 |
1PP..PAB40 1.807,YELLOW |
2 | ||
| SU001-01025 |
1PP..PAB40 1.791,BLUE |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| SU001-01027 |
1PP..PAB40 |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| SU001-01027 |
1PP..PAB40 |
2 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| SU001-01019 |
1PP..PAB40 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| SU001-00533 |
1PP..PAB40 L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| SU001-00812 |
1PP..PAB40 |
6 | ||
| 13405C - SPACER, NO.1(FOR FLYWHEEL) | ||||
| SU001-01020 |
1PP..PAB40 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| SU001-01011 |
1PP..PAB40 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| SU001-A0130 |
1PP..PAB40 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| SU001-01016 |
1PP..PAB40 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| SU001-01184 |
1PP..PAB40 |
1 | ||
| SU001-01018 |
1PP..PAB40 |
1 | ||
| SU001-01017 |
1PP..PAB40 |
1 | ||
| 13472 - HUB, CRANKSHAFT PULLEY | ||||
| SU001-01013 |
1PP..PAB40 |
1 | ||
| 13472A - SEAL, OIL(FOR CRANKSHAFT PULLEY HUB) | ||||
| SU001-01014 |
1PP..PAB40 |
1 | ||
| Common parts | ||||
| SU001-01165 | ||||

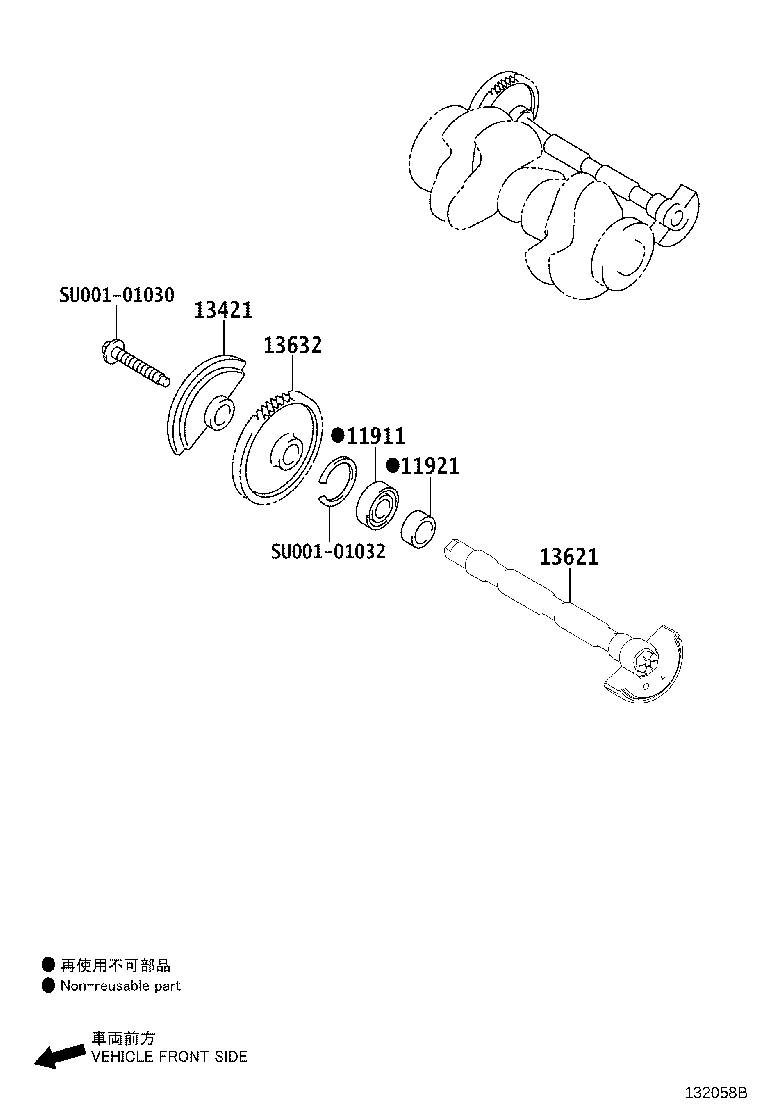

ILLUST NO. 4 OF 5(1405- )1PP
BALANCE SHAFT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11911 - BEARING, BALANCESHAFT, NO.1 | ||||
| SU001-01034 |
1PP..PAB40 |
1 | ||
| 11921 - BEARING, BARANCESHAFT, NO.2 | ||||
| SU001-01033 |
1PP..PAB40 |
1 | ||
| 13421 - WEIGHT, BALANCE | ||||
| SU001-01031 |
1PP..PAB40 |
1 | ||
| 13621 - BALANCESHAFT, NO.1 | ||||
| SU001-01028 |
1PP..PAB40 |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| SU001-01029 |
1PP..PAB40 |
1 | ||
| Common parts | ||||
| SU001-01030 | ||||
| SU001-01032 | ||||

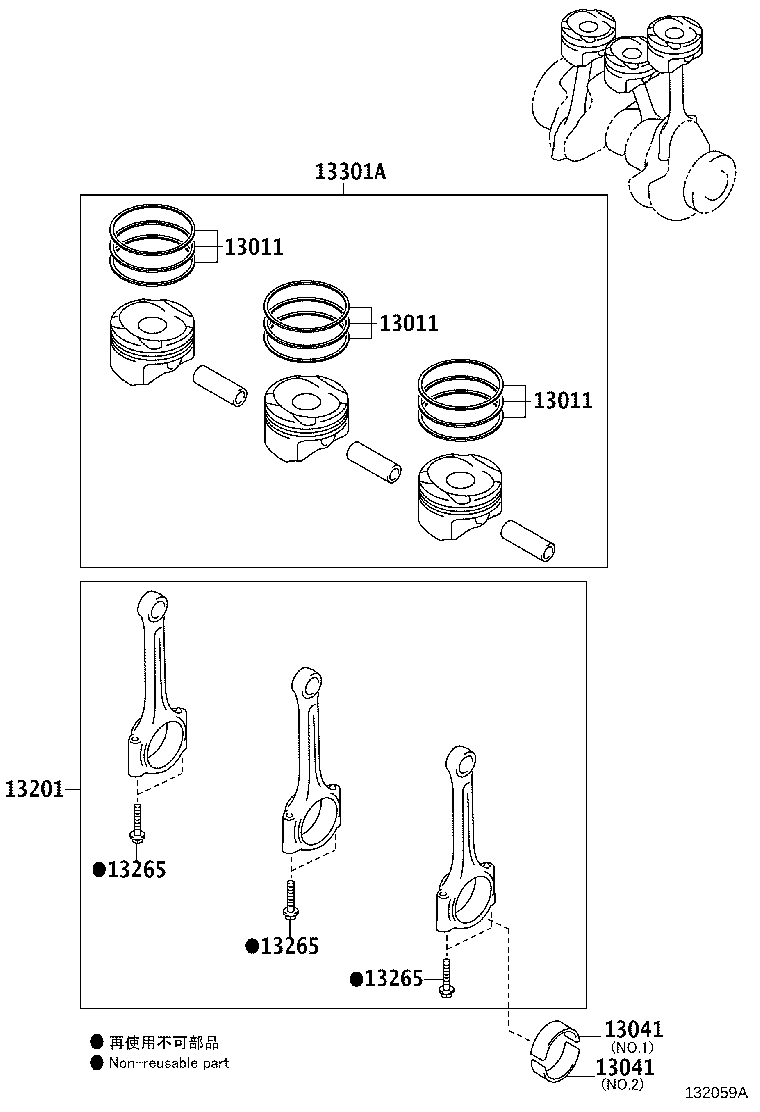

ILLUST NO. 5 OF 5(1405- )1PP
PISTON & CONNECTING ROD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13011 - RING SET, PISTON | ||||
| SU001-01043 |
1PP..PAB40 |
3 | ||
| 13011 - RING SET, PISTON | ||||
| SU001-01043 |
1PP..PAB40 |
3 | ||
| 13011 - RING SET, PISTON | ||||
| SU001-01043 |
1PP..PAB40 |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| SU001-01037 |
1PP..PAB40 NO.2,1.486-1.492 |
3 | ||
| SU001-01038 |
1PP..PAB40 NO.2,1.493-1.499 |
3 | ||
| SU001-01040 |
1PP..PAB40 NO.1 |
3 | ||
| SU001-01036 |
1PP..PAB40 NO.2,1.471-1.477 |
3 | ||
| SU001-01039 |
1PP..PAB40 NO.2,1.500-1.506 |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| SU001-01037 |
1PP..PAB40 NO.2,1.486-1.492 |
3 | ||
| SU001-01038 |
1PP..PAB40 NO.2,1.493-1.499 |
3 | ||
| SU001-01040 |
1PP..PAB40 NO.1 |
3 | ||
| SU001-01036 |
1PP..PAB40 NO.2,1.471-1.477 |
3 | ||
| SU001-01039 |
1PP..PAB40 NO.2,1.500-1.506 |
3 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| SU001-01035 |
1PP..PAB40 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| SU001-01041 |
1PP..PAB40 |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| SU001-01041 |
1PP..PAB40 |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| SU001-01041 |
1PP..PAB40 |
6 | ||
| 13301A - PISTON SET, W/PISTON RING | ||||
| SU001-01042 |
1PP..PAB40 |
1 | ||

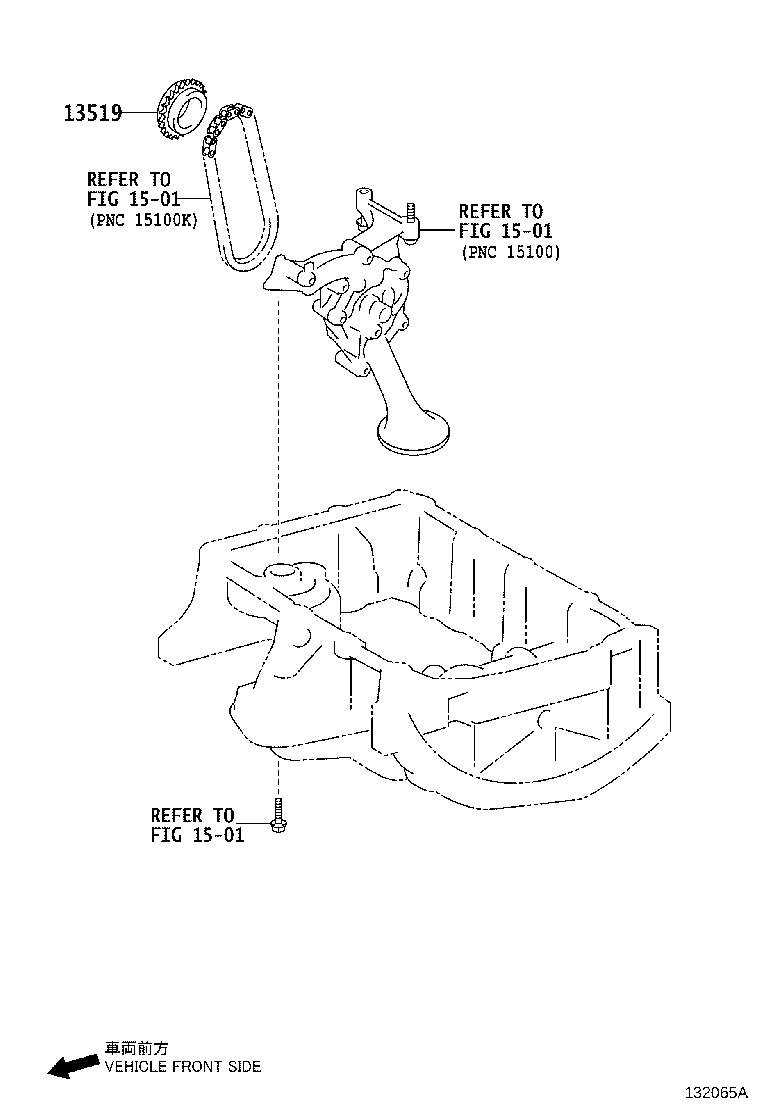

ILLUST NO. 3 OF 5(1405- )1PP
OIL PUMP DRIVE GEAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| SU001-01106 |
1PP..PAB40 |
1 | ||
| Linked diagrams | ||||
| 1501 | ||||

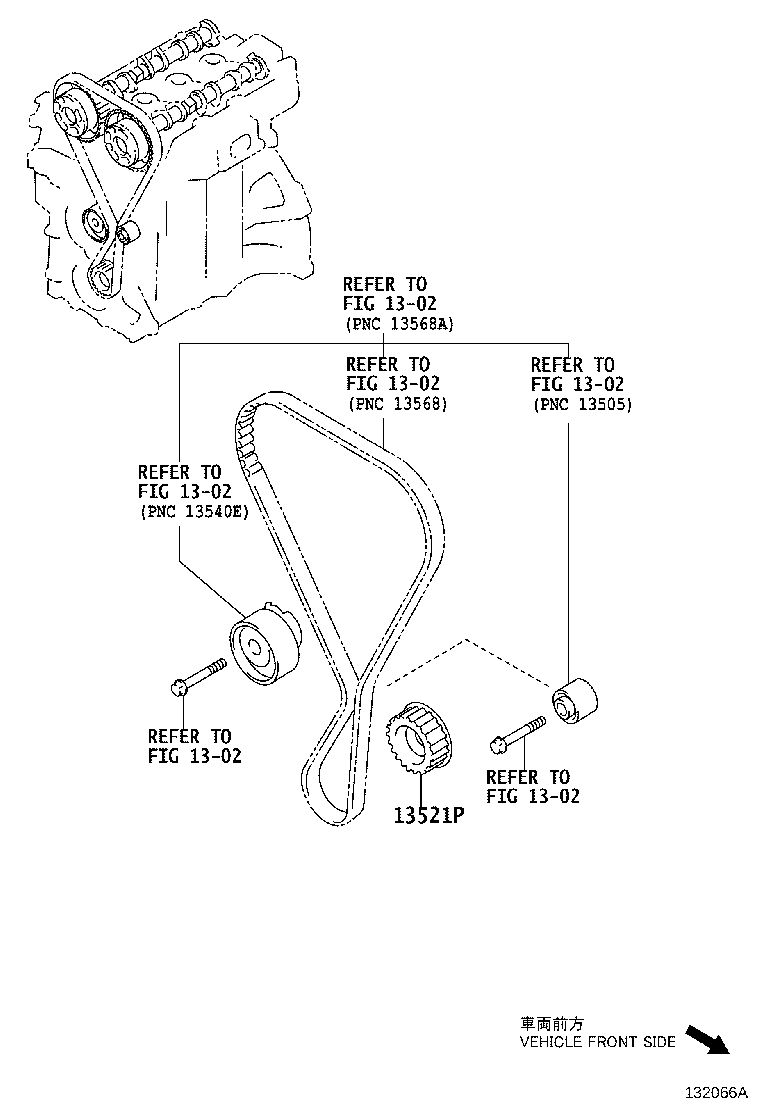

ILLUST NO. 2 OF 5(1405- )1PP
CRANKSHAFT TIMING PULLEY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| SU001-01052 |
1PP..PAB40 |
1 | ||
| Linked diagrams | ||||
| 1302 | ||||
