PAB40L-AHMGKW (2014)
Toyota Aygo
Production
May 2014
-
May 2018
Engine
1PP
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(1405- )
Click highlighted areas on diagram
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-YV010 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55900-YV020 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 55900-YV030 |
KGB40,PAB40..LV1 |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-YV010 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55900-YV020 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 55900-YV030 |
KGB40,PAB40..LV1 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-YV010 |
KGB40,PAB40 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-YV010 |
KGB40,PAB40 |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 2 OF 3(1405- )LHD
Click highlighted areas on diagram

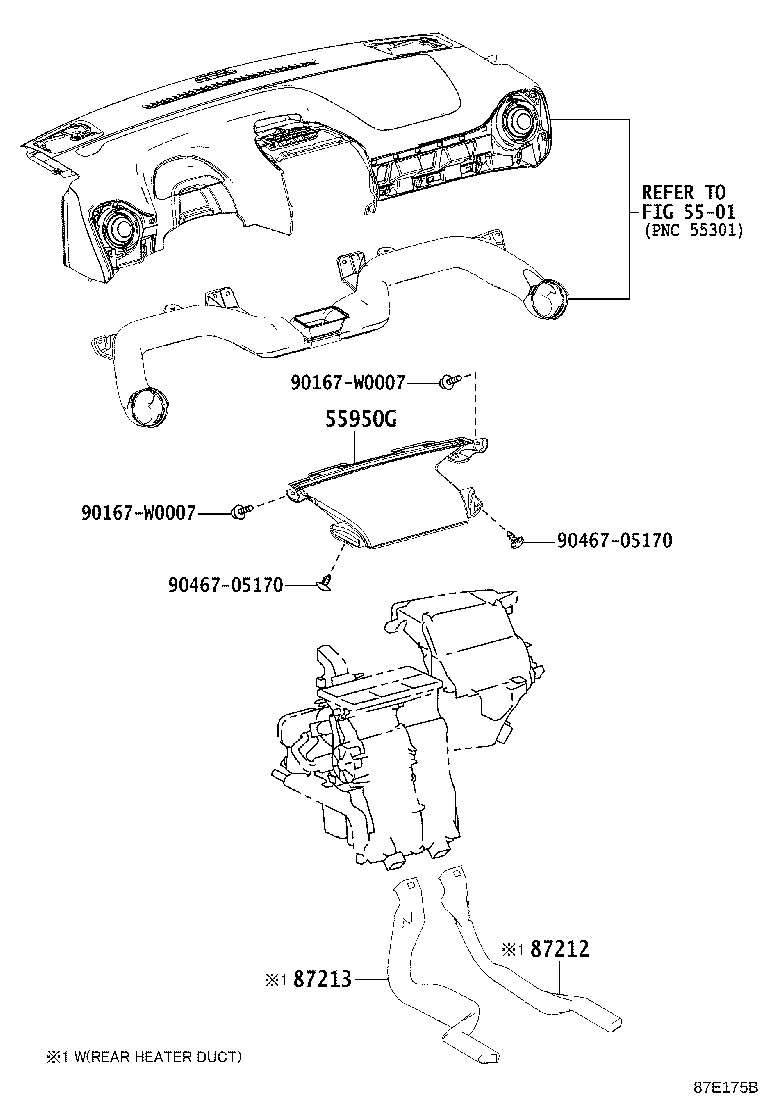

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0H020 |
KGB40,PAB40 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-0H010 |
KGB40,PAB40..LHD COLD AREA SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-0H010 |
KGB40,PAB40..LHD COLD AREA SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 3 OF 3(1405- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-YV010 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| SU001-A1331 |
PAB40 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
KGB40,PAB40 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
