PAB40L-AHMGKW (2014)
Toyota Aygo
(1405- )LHD

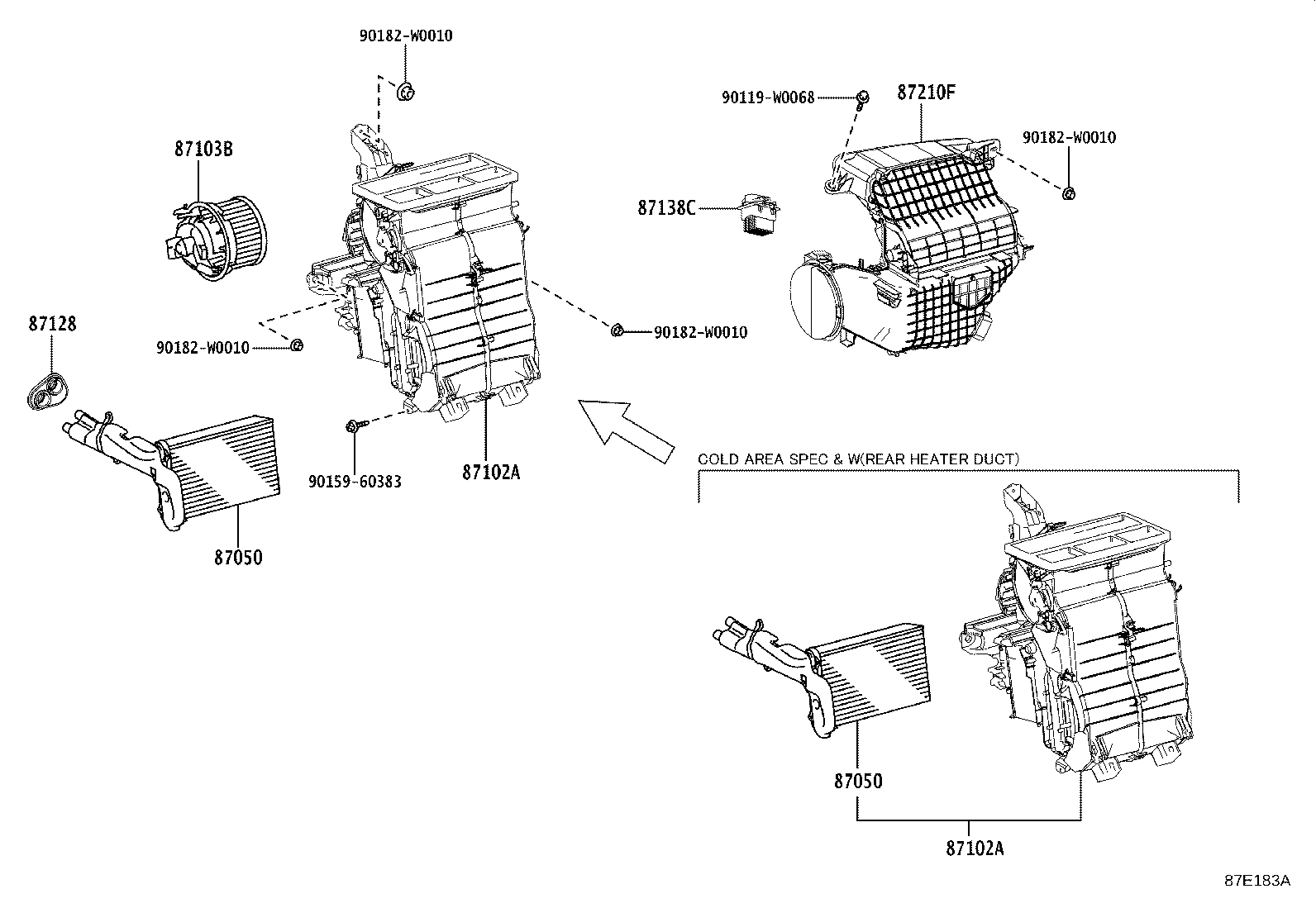

MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-YV030 |
KGB40,PAB40..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-YV030 |
KGB40,PAB40..LHD |
1 | ||
| 87102A - CASE SUB-ASSY, RADIATOR | ||||
| 87102-YV020 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87102-YV030 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87102A - CASE SUB-ASSY, RADIATOR | ||||
| 87102-YV020 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87102-YV030 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-YV010 |
KGB40,PAB40..LHD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0H010 |
KGB40,PAB40 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87138-YV020 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87138-YV010 |
KGB40,PAB40 |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-YV010 |
KGB40,PAB40..LHD..LV1 |
1 | ||
| 87210-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87210-YV020 |
KGB40,PAB40..LHD..LV1 FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87210-YV050 |
KGB40,PAB40..LHD..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87210-YV050 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| Common parts | ||||
| 90119-W0068 | ||||
| 90159-60383 | ||||
| 90182-W0010 | ||||
(1405- )LHD

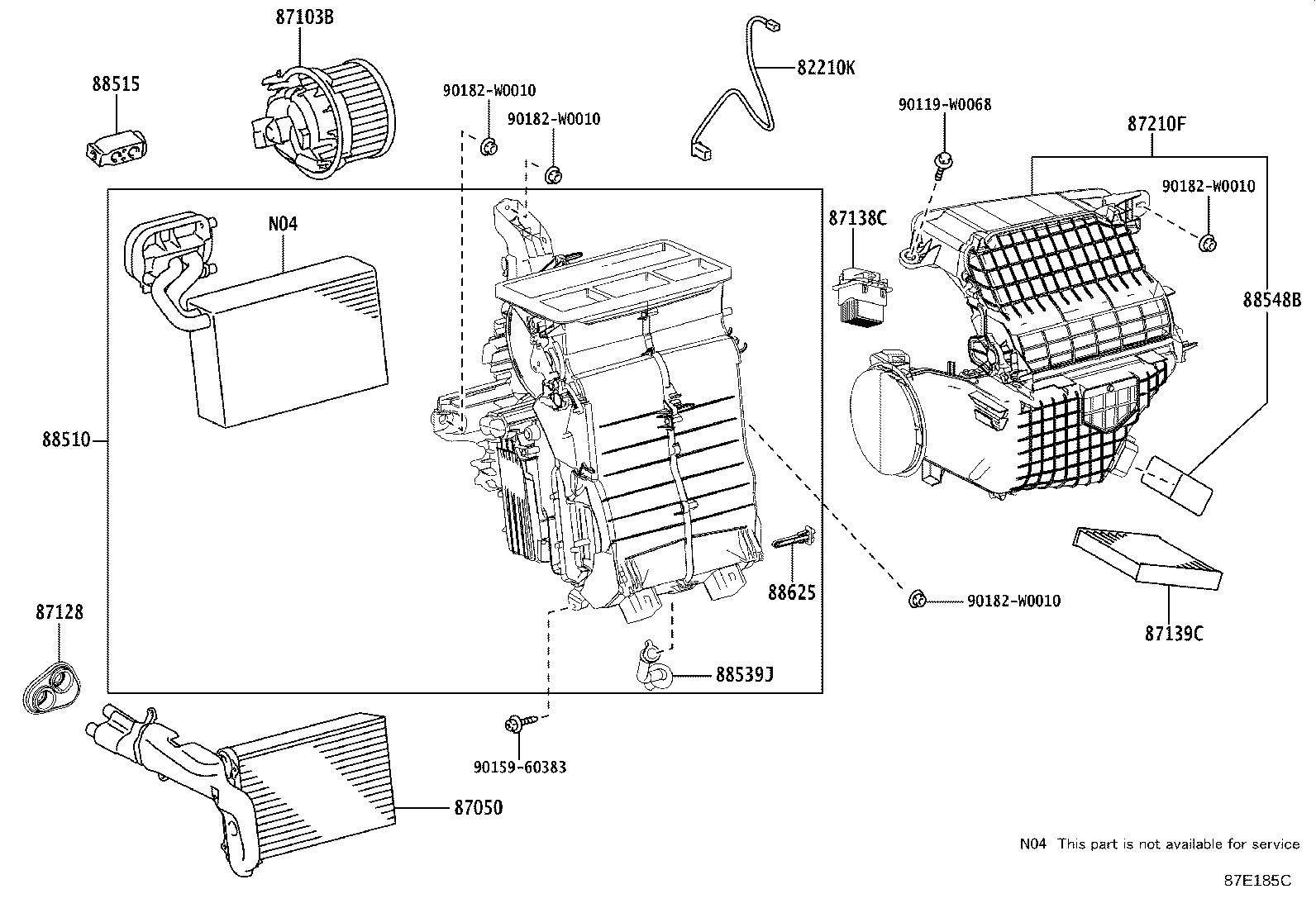

MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 82212-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82212-YV020 |
KGB40,PAB40..LHD..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-YV030 |
KGB40,PAB40..LHD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-YV010 |
KGB40,PAB40..LHD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0H010 |
KGB40,PAB40 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87138-YV020 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87138-YV010 |
KGB40,PAB40 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88508-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-YV010 |
KGB40,PAB40..LHD..LV1 |
1 | ||
| 87210-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87210-YV020 |
KGB40,PAB40..LHD..LV1 FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87210-YV050 |
KGB40,PAB40..LHD..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87210-YV050 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-YV050 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88510-YV040 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88510-YV030 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 88510-YV020 |
KGB40,PAB40..LV1 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-YV020 |
KGB40,PAB40..LV1 |
1 | ||
| Common parts | ||||
| 90119-W0068 | ||||
| 90159-60383 | ||||
| 90182-W0010 | ||||
(1405- )LHD

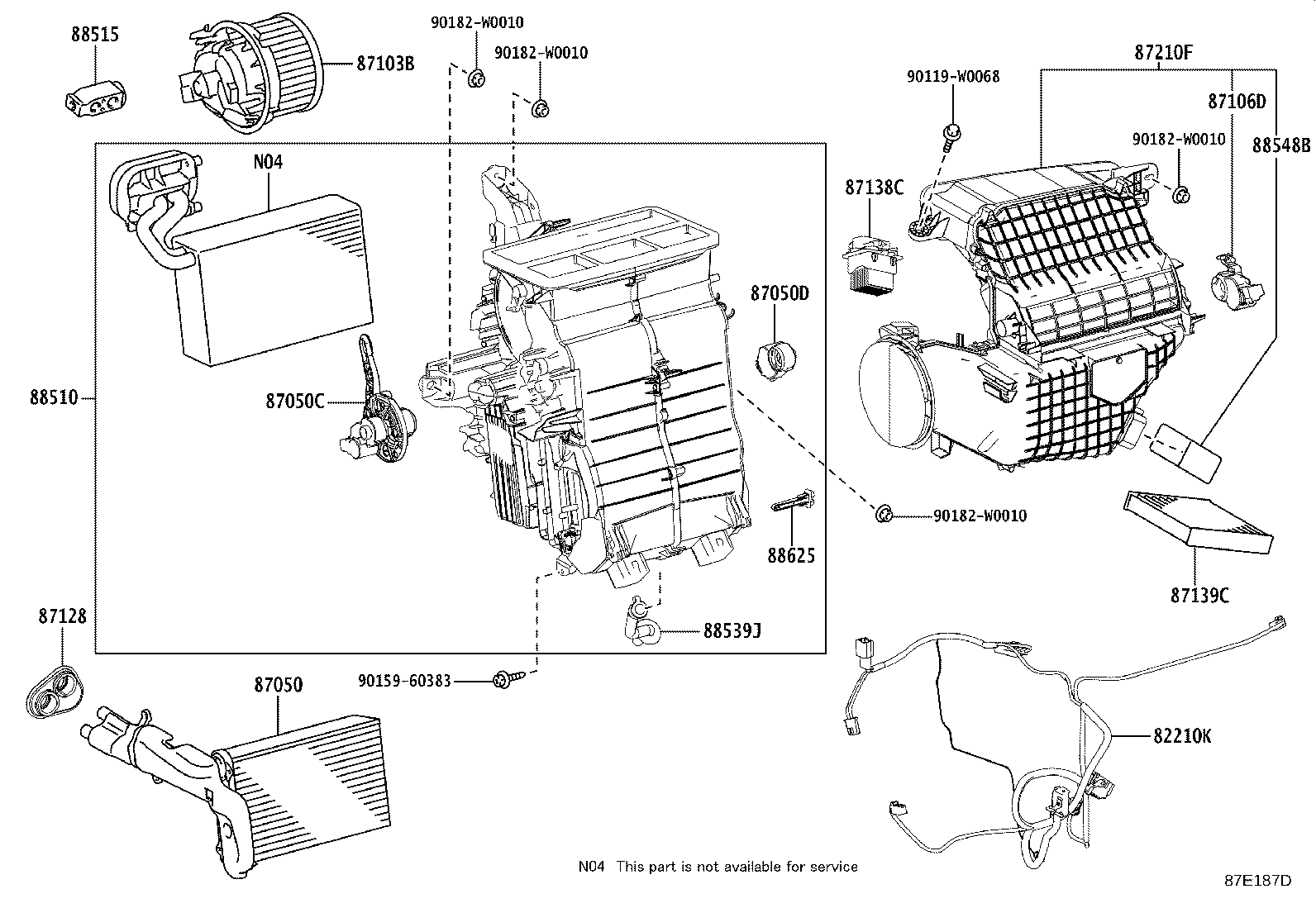

AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 82212-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82212-YV020 |
KGB40,PAB40..LHD..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-YV030 |
KGB40,PAB40..LHD |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-YV010 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87106-YV010 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-YV030 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87106-YV030 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-YV010 |
KGB40,PAB40..LHD |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87106-YV020 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0H010 |
KGB40,PAB40 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87138-YV020 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87138-YV010 |
KGB40,PAB40 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88508-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-YV010 |
KGB40,PAB40..LHD..LV1 |
1 | ||
| 87210-YV020 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87210-YV020 |
KGB40,PAB40..LHD..LV1 FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87210-YV050 |
KGB40,PAB40..LHD..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87210-YV050 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-YV050 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88510-YV040 |
KGB40,PAB40..LV1 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88510-YV030 |
KGB40,PAB40..LHD..LV1 COLD AREA SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 88510-YV020 |
KGB40,PAB40..LV1 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-YV010 |
KGB40,PAB40..LV1 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-YV020 |
KGB40,PAB40..LV1 |
1 | ||
| Common parts | ||||
| 90119-W0068 | ||||
| 90159-60383 | ||||
| 90182-W0010 | ||||
