PAB40L-AHMGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1PP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )LHD

Click highlighted areas on diagram

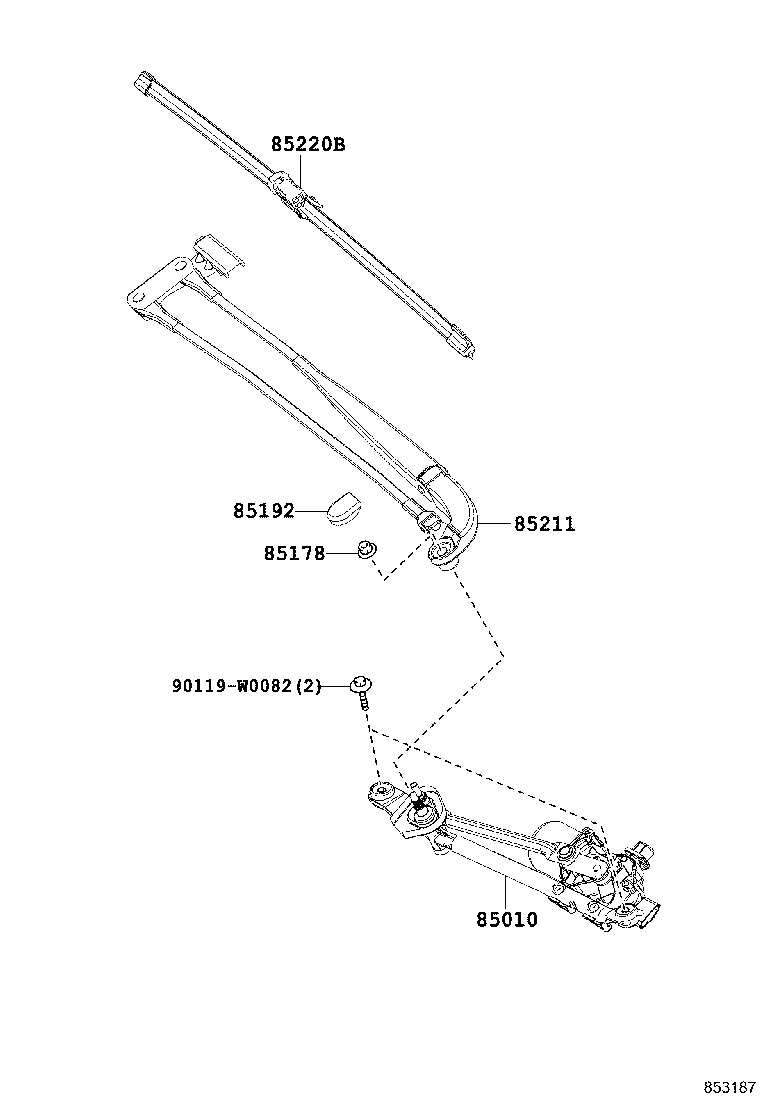

diagram 85010 85178 85192 85211 85220B 90119W0082
Part # Description Qty Price
85010 - MOTOR & LINK ASSY, FR WIPER
85010-0H030

KGB40,PAB40..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-W0009

KGB40,PAB40

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-02010

KGB40,PAB40

 1
85211 - ARM, FRONT WIPER
85221-0H020

KGB40,PAB40..LHD

 1
85220B - BLADE, FRONT WIPER
85222-0H020

KGB40,PAB40..LHD

 1
Common parts
90119-W0082
