PAB40L-AHMGKW (2014)
Toyota Aygo

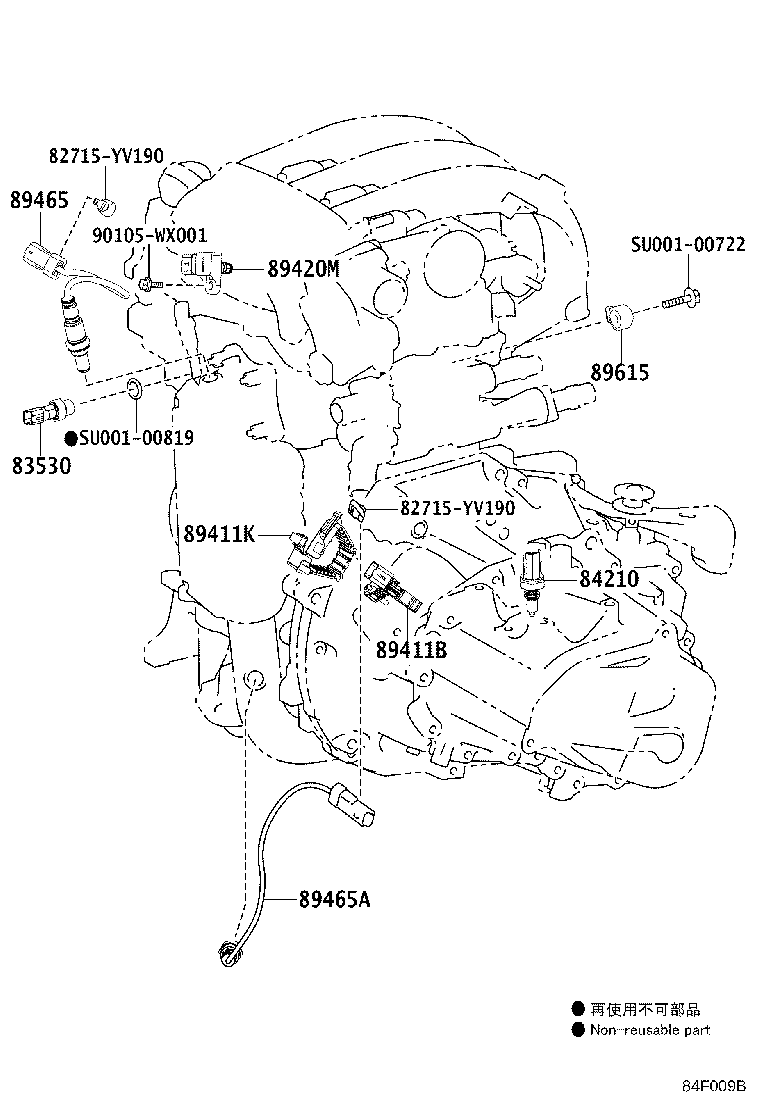

ILLUST NO. 1 OF 8(1405- )PAB40
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| SU001-01085 |
PAB40 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| SU001-A0799 |
PAB40 |
1 | ||
| 89411B - SENSOR, SPEED | ||||
| SU001-01175 |
PAB40 |
1 | ||
| 89411K - PROTECTOR, ENGINE SPEED SENSOR | ||||
| SU001-01119 |
PAB40 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| SU001-01102 |
PAB40 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-YV010 |
PAB40 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-YV010 |
PAB40 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| SU001-01118 |
PAB40 |
1 | ||
| Common parts | ||||
| 82715-YV190 | ||||
| 90105-WX001 | ||||
| SU001-00722 | ||||
| SU001-00819 | ||||
ILLUST NO. 7 OF 8(1405- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87481 - SWITCH ASSY, HEATER | ||||
| 87481-YV010 |
KGB40,PAB40..LHD..LV1 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
2 | ||
| 87481-YV010 |
KGB40,PAB40..LHD..LV1 SEAT COVER MATERIAL-FABRIC(STOT MOJEE)&SEAT HEATER-WITH |
2 | ||
| 87481-YV010 |
KGB40,PAB40..LHD..LV1 SEAT HEATER-WITH |
2 | ||
| 87481 - SWITCH ASSY, HEATER | ||||
| 87481-YV010 |
KGB40,PAB40..LHD..LV1 SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
2 | ||
| 87481-YV010 |
KGB40,PAB40..LHD..LV1 SEAT COVER MATERIAL-FABRIC(STOT MOJEE)&SEAT HEATER-WITH |
2 | ||
| 87481-YV010 |
KGB40,PAB40..LHD..LV1 SEAT HEATER-WITH |
2 | ||
| Linked diagrams | ||||
| 7101 | ||||
ILLUST NO. 6 OF 8(1405- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0H030 |
KGB40,PAB40 |
1 | ||
| 84140-0H080 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&FRONT FOG LAMP-WITH&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84140-0H060 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&FRONT FOG LAMP-WITH |
1 | ||
| 84140-0H070 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84140-0H050 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84140-0H040 |
KGB40,PAB40..LV1 FRONT FOG LAMP-WITH |
1 | ||
| 84140-0H070 |
KGB40,PAB40..LV1 LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84140-0H080 |
KGB40,PAB40..LV1 FRONT FOG LAMP-WITH&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0H010C0 |
KGB40,PAB40..5F..LV1 STEERING SWITCH-AUDIO & TELEPHONE,PSA PIANO BLACK HXU,TRIM0#,1#,2#,4#,8# |
1 | ||
| 84250-0H030C0 |
KGB40,PAB40..5F..LV1 STEERING SWITCH-AUDIO,TELEPHONE,LANE DEPARTURE ALEART,GLOSS BLACK,TRIM2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-0D050 |
KGB40,PAB40..LV1 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-0D050 |
KGB40,PAB40..LV1 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06030 |
KGB40,PAB40 |
1 | ||
| 84450-06030 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0H020 |
KGB40,PAB40 |
1 | ||
| Common parts | ||||
| 90159-W0023 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 4501 | ||||

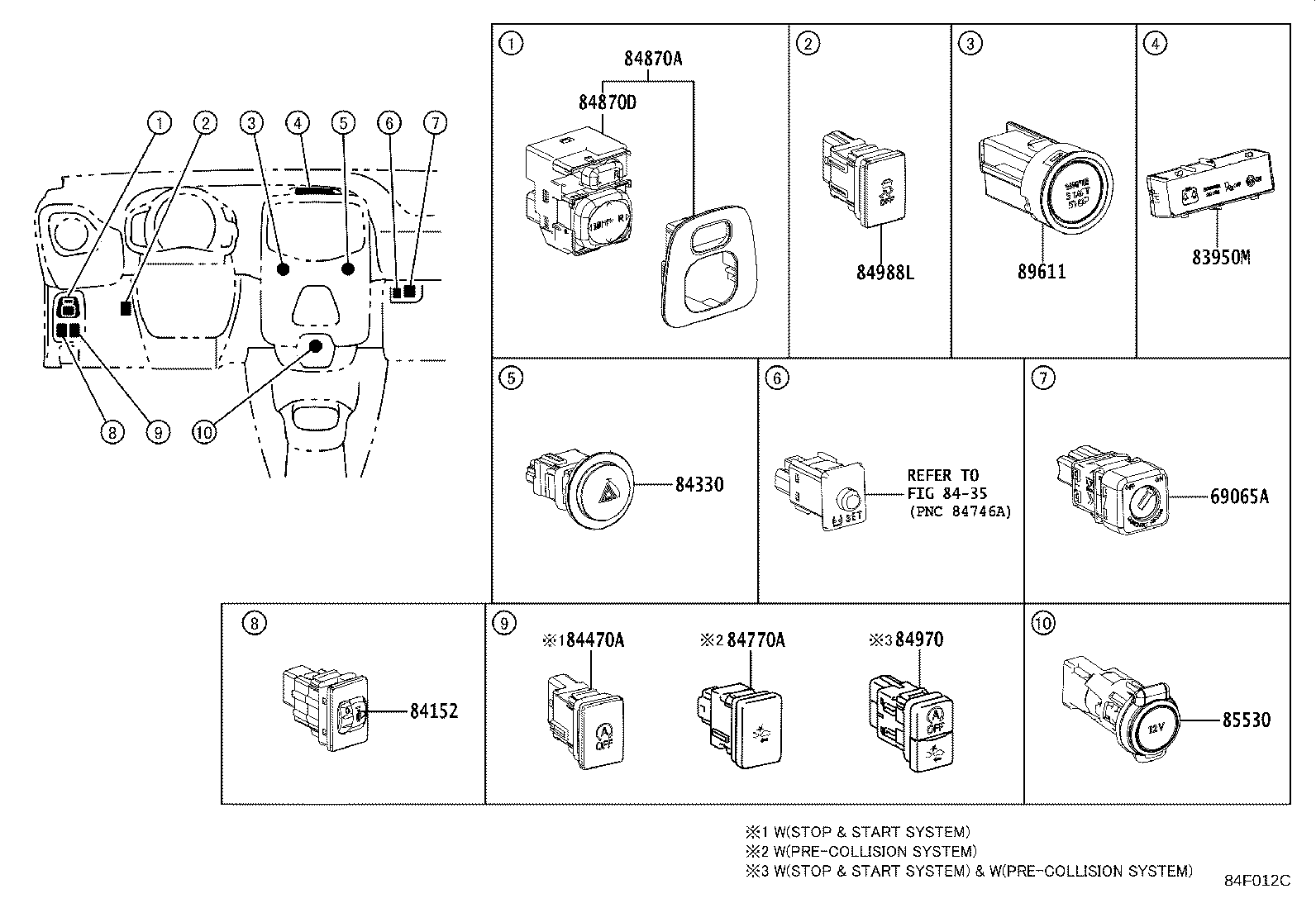

ILLUST NO. 5 OF 8(1405- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-0H020 |
KGB40,PAB40 |
1 | ||
| 69065-0H021 |
KGB40,PAB40 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0H020 |
KGB40,PAB40 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D090 |
KGB40,PAB40 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0H020 |
KGB40,PAB40 |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-0H010 |
KGB40,PAB40..LV1 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0H010 |
KGB40,PAB40..LV1 |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-0D040 |
KGB40,PAB40..LV1 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0H010 |
KGB40,PAB40 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-YV010 |
KGB40,PAB40 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0H011 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-0H012 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-0H010 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
ILLUST NO. 8 OF 8(1405- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0H010 |
KGB40,PAB40 |
1 | ||
| 83320-70010 |
KGB40,PAB40 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
KGB40,PAB40 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
KGB40,PAB40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D040 |
KGB40,PAB40..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D040 |
KGB40,PAB40..5D |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
KGB40,PAB40 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
KGB40,PAB40 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0H010 |
KGB40,PAB40 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0H010 |
KGB40,PAB40 |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-0H010 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84840H - SWITCH ASSY, GLASS HATCH LOCK | ||||
| 69743-0H010 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-0H010 |
KGB40,PAB40..LV1 CANVAS ROOF-WITH(BLACK) |
1 | ||
| 84862-0H010 |
KGB40,PAB40..LV1 CANVAS ROOF-WITH(RED) |
1 | ||
| 89720 - COMPUTER ASSY, SLIDING ROOF CONTROL | ||||
| 89720-0H010 |
KGB40,PAB40..LV1 CANVAS ROOF-WITH(BLACK) |
1 | ||
| 89720-0H010 |
KGB40,PAB40..LV1 CANVAS ROOF-WITH(RED) |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90105-W0095 | ||||
| 90901-48003 | ||||
ILLUST NO. 2 OF 8(1405- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-YV020 |
PAB40 |
1 | ||
| Common parts | ||||
| 90166-WX006 | ||||
| 90178-W0024 | ||||

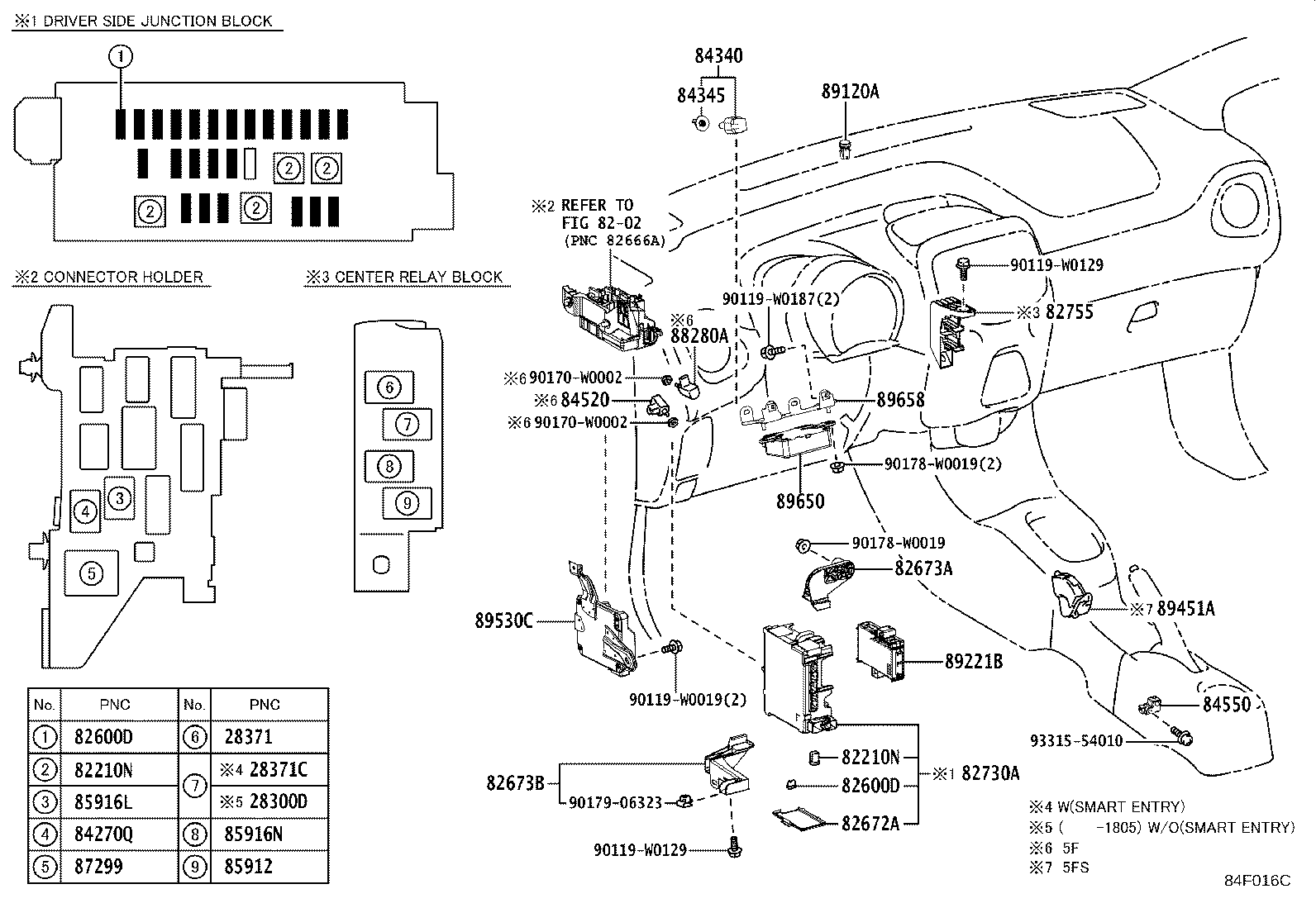

ILLUST NO. 4 OF 8(1405- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90080-87020 |
1PP..PAB40 |
1 | ||
| 90080-87020 |
1PP..PAB40 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90080-87021 |
1KRFE,1PP..KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87021 |
1KRFE,1PP..KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
KGB40,PAB40 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
KGB40,PAB40 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
KGB40,PAB40 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
KGB40,PAB40 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
KGB40,PAB40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
KGB40,PAB40 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KGB40,PAB40 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
KGB40,PAB40 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
KGB40,PAB40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
KGB40,PAB40 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
KGB40,PAB40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
KGB40,PAB40 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KGB40,PAB40 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
KGB40,PAB40 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
KGB40,PAB40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
KGB40,PAB40 15A,MINI FUSE,BLUE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0H010 |
KGB40,PAB40 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0H010 |
KGB40,PAB40..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0H020 |
KGB40,PAB40..LHD |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0H060 |
PAB40 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82730-0H060 |
PAB40 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 82730-0H050 |
PAB40 |
1 | ||
| 82730-0H060 |
PAB40 LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-12020 |
KGB40,PAB40 |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90080-87021 |
KGB40,PAB40 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
KGB40,PAB40 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KGB40,PAB40 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KGB40,PAB40..5F..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-0H010 |
KGB40,PAB40 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87021 |
KGB40,PAB40 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87021 |
KGB40,PAB40 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87021 |
KGB40,PAB40 |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90080-87031 |
KGB40,PAB40 |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-70010 |
KGB40,PAB40..5F |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
KGB40,PAB40..LV1 LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0H010 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89221-0H010 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89221-0H010 |
KGB40,PAB40..LV1 LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0H090 |
KGB40,PAB40 |
1 | ||
| 89650-0H100 |
KGB40,PAB40..LV1 CANVAS ROOF-WITH(RED) |
1 | ||
| 89650-0H100 |
KGB40,PAB40..LV1 CANVAS ROOF-WITH(BLACK) |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| 89658-0H010 |
KGB40,PAB40..LHD |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 90119-W0129 | ||||
| 90119-W0187 | ||||
| 90170-W0002 | ||||
| 90178-W0019 | ||||
| 90179-06323 | ||||
| 93315-54010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 3 OF 8(1405- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1KRFE,1PP..KGB40,PAB40 |
1 | ||
| 28300-28010 |
1KRFE,1PP..KGB40,PAB40 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
KGB40,PAB40 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08304 |
KGB40,PAB40 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08295 |
KGB40,PAB40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
KGB40,PAB40 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
KGB40,PAB40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
KGB40,PAB40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
KGB40,PAB40 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
KGB40,PAB40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
KGB40,PAB40 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
KGB40,PAB40 25A,MINI FUSE |
1 | ||
| 90982-09023 |
KGB40,PAB40 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KGB40,PAB40 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-0H020 |
PAB40 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
KGB40,PAB40 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0H060 |
KGB40,PAB40 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0H070 |
KGB40,PAB40 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0H040 |
KGB40,PAB40 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0H050 |
KGB40,PAB40 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0H050 |
KGB40,PAB40 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-0H060 |
KGB40,PAB40 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87021 |
KGB40,PAB40..LV1 FRONT FOG LAMP-WITH |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
KGB40,PAB40 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87021 |
KGB40,PAB40 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
KGB40,PAB40..LV1 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87021 |
KGB40,PAB40 |
1 | ||
| 88185A - RELAY, PRE-COLLISION CITY HEATER | ||||
| 90080-87021 |
KGB40,PAB40..LV1 PRE-COLLISION SYSTEM-WITH |
1 | ||
| Common parts | ||||
| 90119-W0187 | ||||
| 91631-B0618 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
