Toyota Aygo PAB40 WIRING & CLAMP

PAB40L-AHMGKW (2014)

Toyota Aygo

Production May 2014 - May 2018

Engine 1PP

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(1405- )LHD

Click highlighted areas on diagram

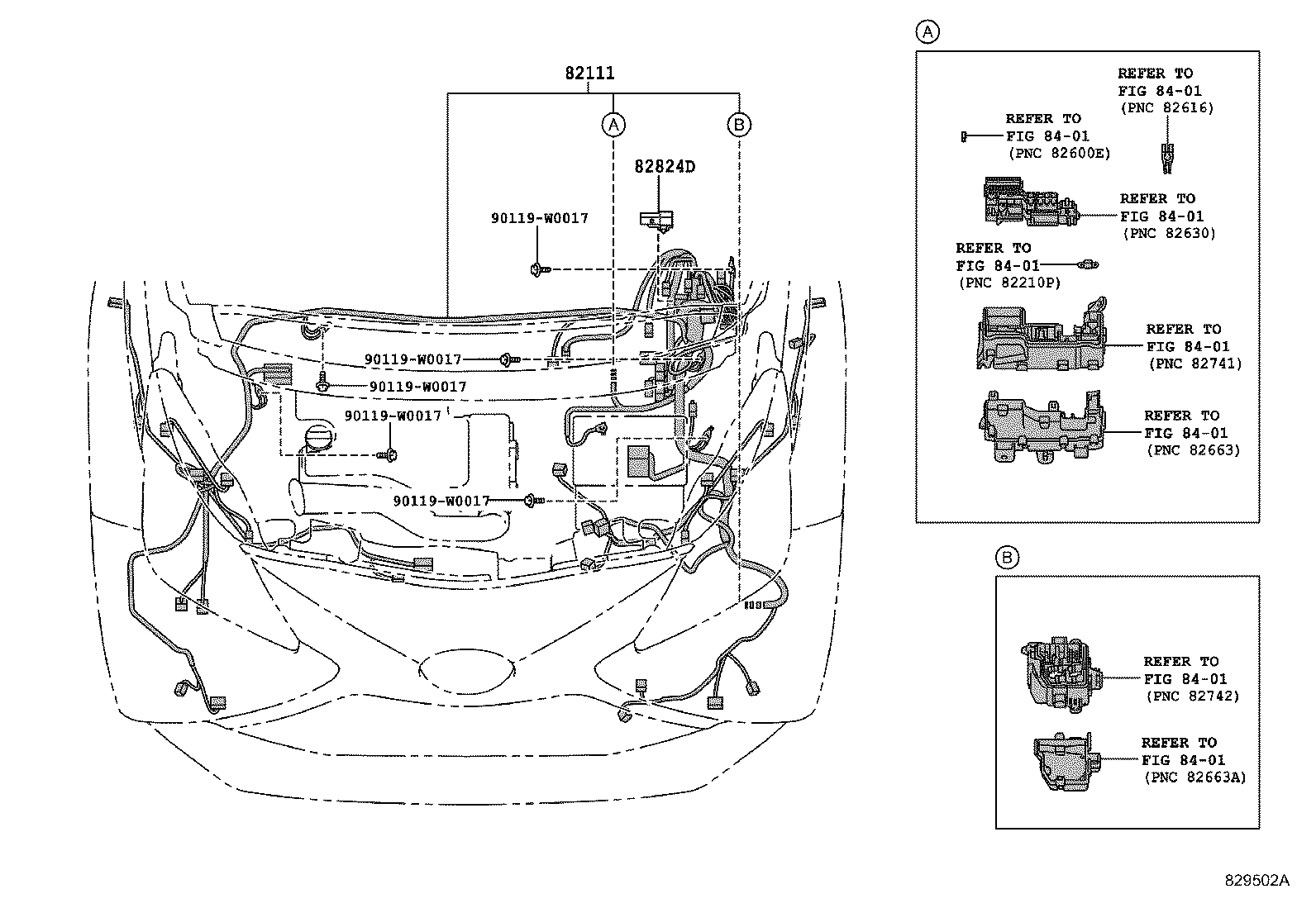

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-0HF50	PAB40..LHD	05/2014 - 05/2015	1
82111-0HP10	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)&FRONT FOG LAMP-WITH	05/2015 - 12/2016	1
82111-0HP10	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2015 - 12/2016	1
82111-0HT40	PAB40..LHD	05/2015 - 12/2016	1
82111-0HS60	PAB40..LHD FRONT FOG LAMP-WITH	05/2015 - 12/2016	1
82111-0HP11	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)	12/2016 - 05/2018	1
82111-0HP11	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)&FRONT FOG LAMP-WITH	12/2016 - 05/2018	1
82111-0HS61	PAB40..LHD FRONT FOG LAMP-WITH	12/2016 - 05/2018	1
82111-0HT41	PAB40..LHD	12/2016 - 05/2018	1
82824D - CONNECTOR, WIRING HARNESS
90980-11300	PAB40..LHD	05/2014 - 05/2015	1
90980-11300	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2015	1
Common parts
90119-W0017
Linked diagrams
8401

ILLUST NO. 2 OF 8(1405- )PAB40

Click highlighted areas on diagram

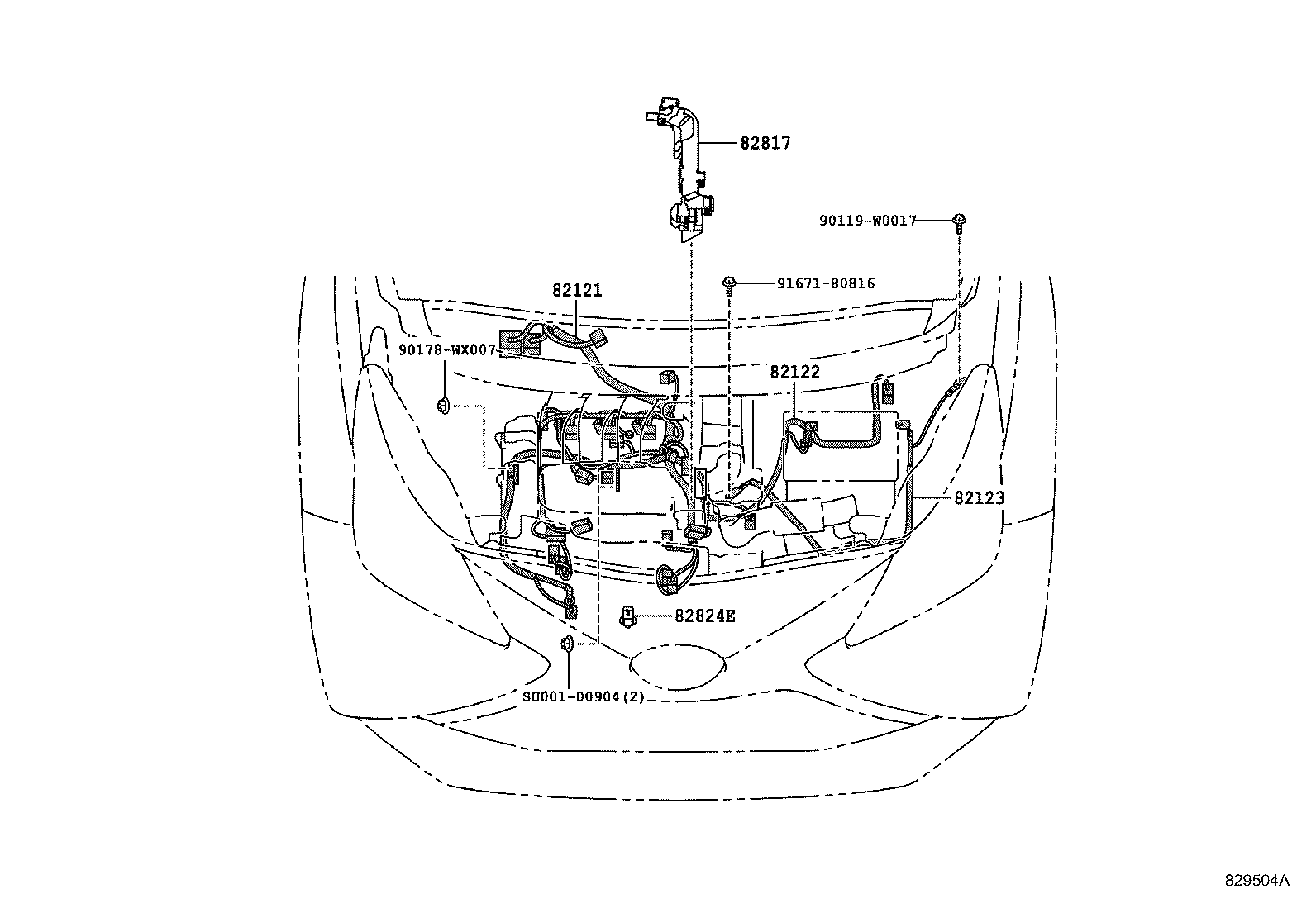

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
SU001-01149	PAB40	05/2014 - 05/2018	1
82122 - WIRE, ENGINE, NO.2
82122-YV010	PAB40 FRONT AIR CONDITIONER-WITHOUT	05/2014 - 05/2018	1
82122-YV020	PAB40	05/2014 - 05/2018	1
82123 - WIRE, ENGINE, NO.3
82123-0H040	PAB40	05/2014 - 05/2018	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
SU001-01150	PAB40	05/2014 - 05/2018	1
82824E - CONNECTOR, WIRING HARNESS
SU001-01151	PAB40	05/2014 - 05/2018	1
Common parts
90119-W0017
90178-WX007
91671-80816
SU001-00904

ILLUST NO. 3 OF 8(1405- )LHD

Click highlighted areas on diagram

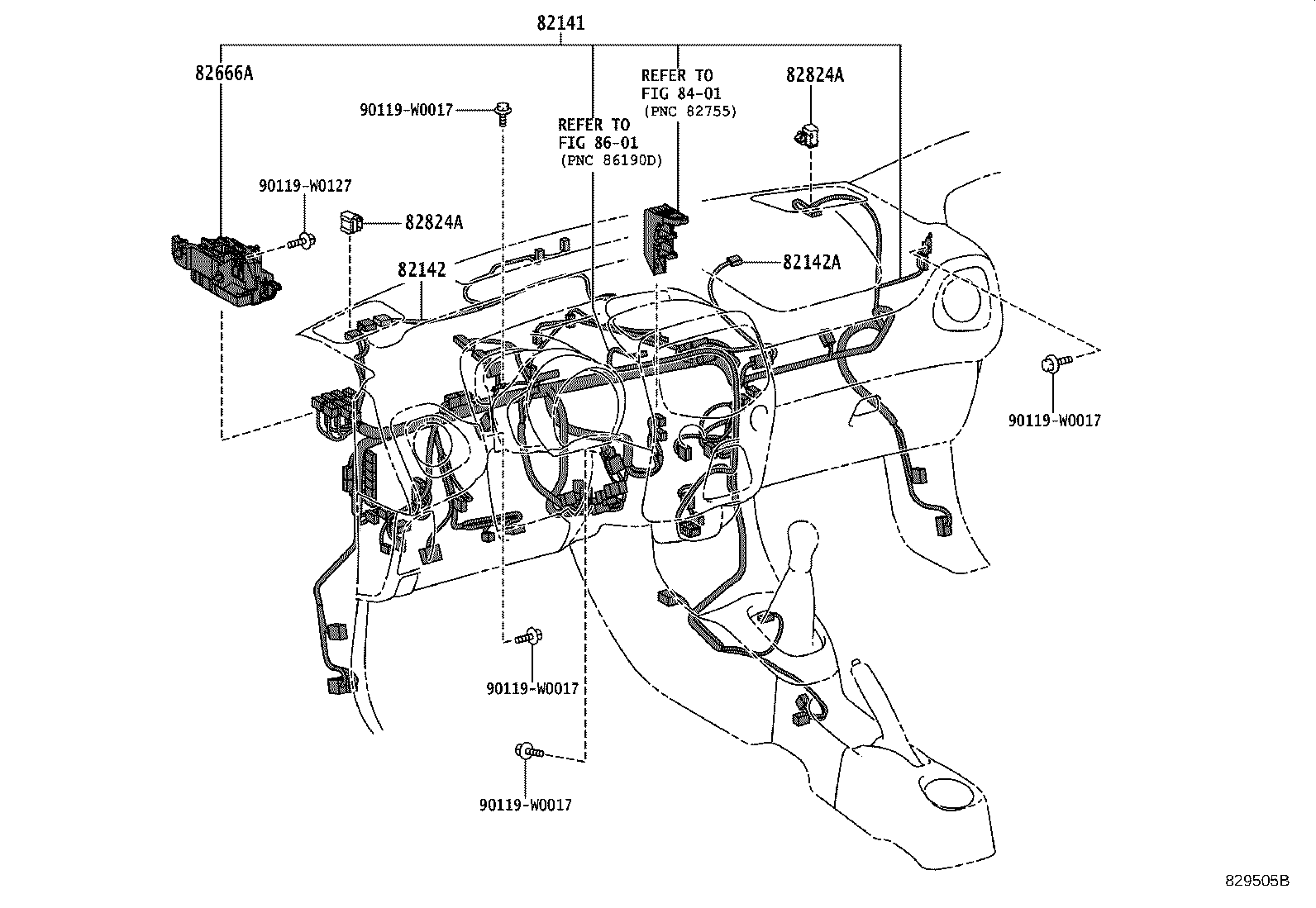

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-0H600	PAB40..LHD	05/2014 - 05/2015	1
82141-0H640	KGB40,PAB40..LHD..5F..LV1 LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO	05/2014 - 05/2015	1
82141-0H730	KGB40,PAB40..LHD..5F..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2015	1
82141-0H740	KGB40,PAB40..LHD..5F..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO	05/2014 - 05/2015	1
82141-0HA90	KGB40,PAB40..LHD..5F..LV1 BACK MONITOR-WITH	05/2015 - 11/2016	1
82141-0HB20	KGB40,PAB40..LHD..5F..LV1 LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO&BACK MONITOR-WITH	05/2015 - 11/2016	1
82141-0HB20	KGB40,PAB40..LHD..5F..LV1 LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO	05/2015 - 11/2016	1
82141-0HB90	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2015 - 11/2016	1
82141-0HC00	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO&BACK MONITOR-WITH	05/2015 - 11/2016	1
82141-0HB90	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2015 - 11/2016	1
82141-0HC00	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO	05/2015 - 11/2016	1
82141-0HE60	PAB40..LHD	05/2015 - 11/2016	1
82141-0HA91	KGB40,PAB40..LHD..5F..LV1 BACK MONITOR-WITH	12/2016 - 05/2018	1
82141-0HB21	KGB40,PAB40..LHD..5F..LV1 LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO	12/2016 - 05/2018	1
82141-0HB21	KGB40,PAB40..LHD..5F..LV1 LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO&BACK MONITOR-WITH	12/2016 - 05/2018	1
82141-0HB91	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)	12/2016 - 05/2018	1
82141-0HC01	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO	12/2016 - 05/2018	1
82141-0HB91	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	12/2016 - 05/2018	1
82141-0HC01	PAB40..LHD WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO&BACK MONITOR-WITH	12/2016 - 05/2018	1
82141-0HE61	PAB40..LHD	12/2016 - 05/2018	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-0H020	KGB40,PAB40..LHD..LV1 LIGHT CONTROL SYSTEM-WITH	05/2014 - 05/2018	1
82142-0H010	KGB40,PAB40	05/2014 - 05/2018	1
82666A - HOLDER, CONNECTOR NO.2
82666-0H110	KGB40,PAB40..LHD	05/2014 - 05/2018	1
82824A - CONNECTOR, WIRING HARNESS
82824-52310	KGB40..LHD..5D..5FS;KGB40,PAB40..5F..LV1 AUDIO-AM/FM & 2SPEAKER	05/2014 - 05/2018	2
82824-52310	PAB40 AUDIO-RADIO LESS & WITHOUT(SPEAKER)	05/2014 - 05/2018	2
82824A - CONNECTOR, WIRING HARNESS
82824-52310	KGB40..LHD..5D..5FS;KGB40,PAB40..5F..LV1 AUDIO-AM/FM & 2SPEAKER	05/2014 - 05/2018	2
82824-52310	PAB40 AUDIO-RADIO LESS & WITHOUT(SPEAKER)	05/2014 - 05/2018	2
Common parts
90119-W0017
90119-W0127
Linked diagrams
8401
8601

ILLUST NO. 4 OF 8(1405- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0H370	KGB40,PAB40..LHD..5D..LV1	05/2014 - 05/2018	1
82151-0H380	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82152 - WIRE, FRONT DOOR, LH
82152-0H290	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82152-0H280	KGB40,PAB40..LHD..5D..LV1	05/2014 - 05/2018	1
82153 - WIRE, REAR DOOR, NO.1
82153-0H020	KGB40,PAB40..5D	05/2014 - 05/2018	1
82153-0H030	KGB40,PAB40..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82154 - WIRE, REAR DOOR, NO.2
82153-0H020	KGB40,PAB40..5D	05/2014 - 05/2018	1
82153-0H030	KGB40,PAB40..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82184 - WIRE, BACK DOOR, NO.1
82184-0H040	KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82184-0H030	KGB40,PAB40	05/2014 - 05/2018	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-0H070	KGB40,PAB40	05/2014 - 05/2018	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-0H080	KGB40,PAB40	05/2014 - 05/2018	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-0H230	KGB40,PAB40	05/2014 - 05/2018	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-0H240	KGB40,PAB40	05/2014 - 05/2018	1

ILLUST NO. 5 OF 8(1405- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-0H730	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&SEAT HEATER-WITH	05/2014 - 05/2015	1
82161-0H730	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)	05/2014 - 05/2015	1
82161-0H730	KGB40,PAB40..LHD..5D..LV1 SEAT HEATER-WITH	05/2014 - 05/2015	1
82161-0H760	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H730	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2015	1
82161-0H760	KGB40,PAB40..LHD..5D..LV1 SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H760	KGB40,PAB40..LHD..5D..LV1 BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H750	KGB40,PAB40..LHD..5D	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2015	1
82161-0H760	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2015	1
82161-0H760	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H760	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0H730	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&SEAT HEATER-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2015	1
82161-0H770	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2015	1
82161-0HA90	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)	05/2015 - 05/2018	1
82161-0HA90	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2015 - 05/2018	1
82161-0HB20	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HA90	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&SEAT HEATER-WITH	05/2015 - 05/2018	1
82161-0HB20	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HB20	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HA90	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&SEAT HEATER-WITH	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HB20	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HB10	KGB40,PAB40..LHD..5D	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2015 - 05/2018	1
82161-0HC30	KGB40,PAB40..LHD..5D..LV1 SEAT HEATER-WITH&BACK MONITOR-WITH	05/2015 - 05/2018	1
82161-0HC20	KGB40,PAB40..LHD..5D..LV1 SEAT HEATER-WITH	05/2015 - 05/2018	1
82161-0HB30	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2015 - 05/2018	1
82161-0HC30	KGB40,PAB40..LHD..5D..LV1 BACK MONITOR-WITH	05/2015 - 05/2018	1
82163 - WIRE, FLOOR, NO.3
82163-0H010	KGB40,PAB40	05/2014 - 05/2018	1
82171 - WIRE, ROOF, NO.1
82171-0H240	KGB40,PAB40..LHD..LV1 PRE-COLLISION SYSTEM-WITH&CANVAS ROOF-WITH(BLACK)	05/2015 - 12/2016	1
82171-0H230	KGB40,PAB40..LHD..LV1 PRE-COLLISION SYSTEM-WITH	05/2015 - 12/2016	1
82171-0H090	PAB40..LHD;KGB40..LHD..5FS CANVAS ROOF-WITH(BLACK)	05/2014 - 05/2018	1
82171-0H240	KGB40,PAB40..LHD..LV1 PRE-COLLISION SYSTEM-WITH&CANVAS ROOF-WITH(RED)	05/2015 - 12/2016	1
82171-0H080	KGB40,PAB40..LHD..LV1	05/2014 - 05/2018	1
82171-0H090	PAB40..LHD;KGB40..LHD..5FS CANVAS ROOF-WITH(RED)	05/2014 - 05/2018	1
82171-0H070	KGB40..LHD..5D..5FS;KGB40,PAB40..LHD..5F..LV1 AUDIO-RADIO LESS & 4SPEAKER	05/2014 - 05/2018	1
82171-0H070	KGB40..LHD..5D..5FS;KGB40,PAB40..LHD..5F..LV1 AUDIO-AM/FM & 2SPEAKER	05/2014 - 05/2018	1
82171-0H320	KGB40,PAB40..LHD..LV1 PRE-COLLISION SYSTEM-WITH&CANVAS ROOF-WITH(RED)	12/2016 - 05/2018	1
82171-0H070	PAB40..LHD AUDIO-RADIO LESS & WITHOUT(SPEAKER)	05/2014 - 05/2018	1
82171-0H310	KGB40,PAB40..LHD..LV1 PRE-COLLISION SYSTEM-WITH	12/2016 - 05/2018	1
82171-0H320	KGB40,PAB40..LHD..LV1 PRE-COLLISION SYSTEM-WITH&CANVAS ROOF-WITH(BLACK)	12/2016 - 05/2018	1
82172 - WIRE, ROOF, NO.2
82172-0H010	KGB40,PAB40..LV1 CANVAS ROOF-WITH(BLACK)	05/2014 - 05/2018	1
82172-0H010	KGB40,PAB40..LV1 CANVAS ROOF-WITH(RED)	05/2014 - 05/2018	1
82173 - WIRE, ROOF, NO.3
82173-0H010	KGB40,PAB40..LV1 CANVAS ROOF-WITH(BLACK)	05/2014 - 05/2018	1
82173-0H010	KGB40,PAB40..LV1 CANVAS ROOF-WITH(RED)	05/2014 - 05/2018	1
82345 - DIODE
82345-12030	KGB40,PAB40..LV1 PRE-COLLISION SYSTEM-WITH	12/2016 - 05/2018	1
82345A - DIODE
82345-12060	KGB40,PAB40..LV1 PRE-COLLISION SYSTEM-WITH	12/2016 - 05/2018	1
82666B - HOLDER, CONNECTOR NO.3
82666-0H130	KGB40,PAB40..LHD	05/2014 - 05/2018	1
82666C - HOLDER, CONNECTOR NO.4
82666-0H140	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH&BACK MONITOR-WITH	05/2014 - 05/2018	1
82666-0H140	KGB40,PAB40..LHD..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITH	05/2014 - 05/2018	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-0H080	KGB40,PAB40	05/2014 - 05/2018	1
82824 - CONNECTOR, WIRING HARNESS
82824-0H100	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2018	1
82824-0H100	KGB40,PAB40..LHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2018	1
82824-0H100	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(BLACK)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82824-0H100	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT HEATER-WITH	05/2014 - 05/2018	1
82824-0H100	KGB40,PAB40..5D..LV1;KGB40,PAB40..LHD..3D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
82824-0H100	KGB40,PAB40..LHD..5D..LV1 CANVAS ROOF-WITH(RED)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)	05/2014 - 05/2018	1
Common parts
73981-YV010
82817-0H360
90119-W0017
90980-11726
90980-11967
Linked diagrams
5804

ILLUST NO. 6 OF 8(1405- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-0H040
82715-0H050
82715-0H091
82715-0H100
82715-0H120
82715-0H140
82715-0H160
82715-0H200
82715-0H250
82715-0H280
82715-0H290
82715-0H300
82715-0H310
82715-0H320
82715-35A20
82715-YY020
90105-W0038
90105-W0158
90119-W0017
90119-W0027
90119-W0056
91671-80614
SU001-01152
SU001-01153
SU001-A1619
SU001-A1620
SU001-A1881

ILLUST NO. 7 OF 8(1405- )

Click highlighted areas on diagram

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10942
90980-11070
90980-11162
90980-11194
90980-11660
90980-12490
90980-12699
90980-WA027
90980-WA052

ILLUST NO. 8 OF 8(1405- )

Click highlighted areas on diagram

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10997
90980-12551
90980-12553
90980-12555
90980-12790

PAB40L-AHMGKW (2014)

ILLUST NO. 1 OF 8(1405- )LHD

ILLUST NO. 2 OF 8(1405- )PAB40

ILLUST NO. 3 OF 8(1405- )LHD

ILLUST NO. 4 OF 8(1405- )

ILLUST NO. 5 OF 8(1405- )

ILLUST NO. 6 OF 8(1405- )

ILLUST NO. 7 OF 8(1405- )

ILLUST NO. 8 OF 8(1405- )

Part Price Details
