PAB40L-AHMGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1PP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )LHD

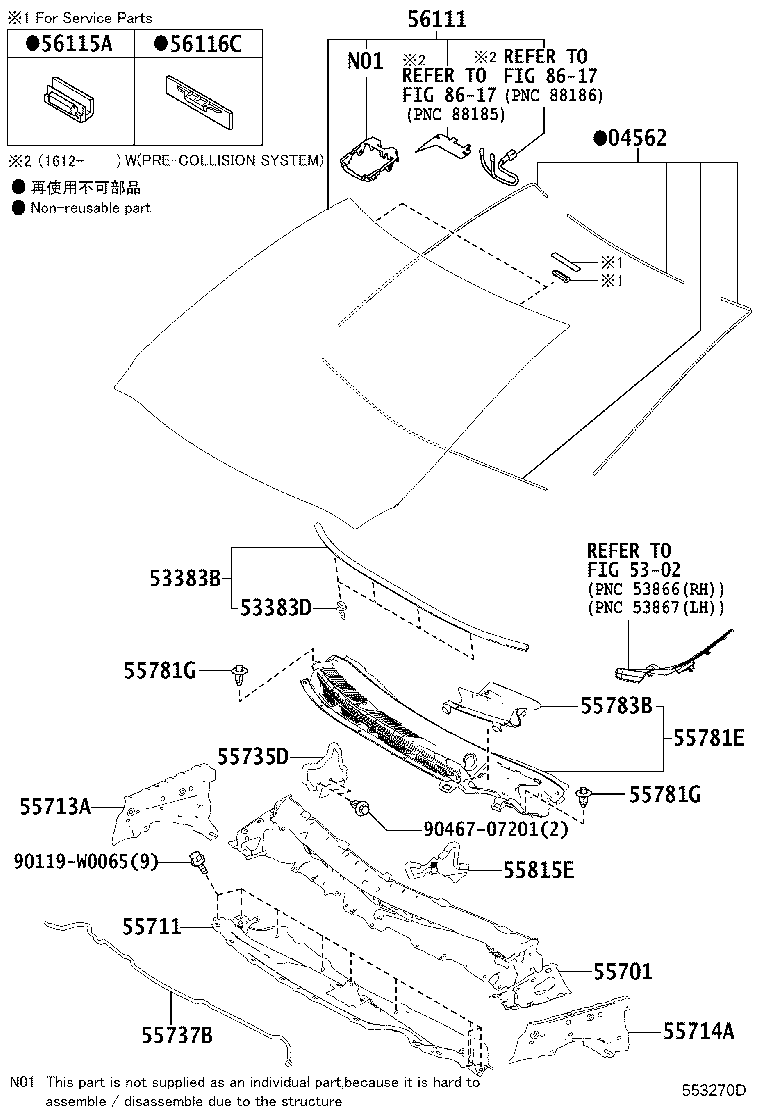

Click highlighted areas on diagram

diagram 04562 5302 53383B 53383D 55701 55711 55713A 55714A 55735D 55737B 55781E 55781G 55781G 55783B 55815E 56111 56115A 56116C 8617 8617 90119W0065 9046707201
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-0H020

KGB40,PAB40

 1
53383B - SEAL, HOOD TO COWL TOP
53383-0H030

KGB40,PAB40

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

KGB40,PAB40

 4
55701 - PANEL SUB-ASSY, COWL
55700-0H050

KGB40,PAB40..LHD

 1
55711 - PANEL, COWL TOP, OUTER
55701-0H050

KGB40,PAB40..LHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-0H020

KGB40,PAB40

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-0H020

KGB40,PAB40

 1
55735D - SEAL, FRONT AIR SHUTTER, RH
55735-0H020

KGB40,PAB40

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-0H040

KGB40,PAB40

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0H130

KGB40,PAB40..LHD

COLD AREA SPEC & WITH(REAR HEATER DUCT)

 1
55708-0H130

KGB40,PAB40..LHD

COLD AREA SPEC & W/O(REAR HEATER DUCT)

 1
55708-0H110

KGB40,PAB40..LHD

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-W0008C0

KGB40,PAB40

BLACK

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-W0008C0

KGB40,PAB40

BLACK

 2
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-0H060

KGB40,PAB40..LHD

 1
55815E - SEAL, FRONT VENTILATOR, NO.1
55815-0H020

KGB40,PAB40

 1
56111 - GLASS, WINDSHIELD
56101-0H060

KGB40,PAB40..LHD..LV1

PRE-COLLISION SYSTEM-WITH

 1
56101-0H040

KGB40,PAB40..LHD..LV1

PRE-COLLISION SYSTEM-WITH

 1
56101-0H030

KGB40,PAB40

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

KGB40,PAB40

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

KGB40,PAB40

 1
Common parts
90119-W0065
90467-07201
Linked diagrams
5302
8617
