PAB40L-AHMGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1PP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )LHD..5F

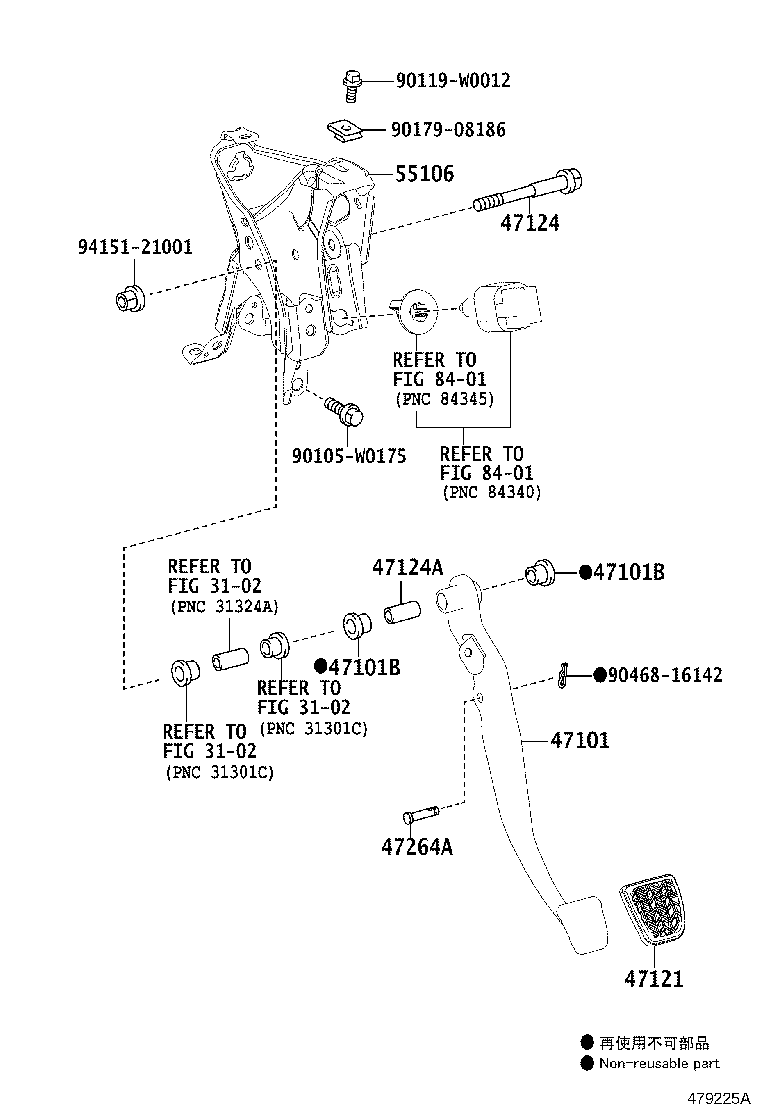

Click highlighted areas on diagram

diagram 3102 3102 3102 47101 47101B 47101B 47121 47124 47124A 47264A 55106 8401 8401 90105W0175 90119W0012 9017908186 9046816142 9415121001
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-0H030

KGB40,PAB40..LHD

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KGB40,PAB40

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KGB40,PAB40

 2
47121 - PAD, BRAKE PEDAL
31321-52010

KGB40,PAB40

 1
47124 - SHAFT, BRAKE PEDAL
90105-10554

KGB40,PAB40..LHD..5F

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

KGB40,PAB40

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

KGB40,PAB40

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-0H060

KGB40,PAB40..LHD..5F

 1
Common parts
90105-W0175
90119-W0012
90179-08186
90468-16142
94151-21001
Linked diagrams
3102
8401
