PAB40L-AHMGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1PP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )PAB40

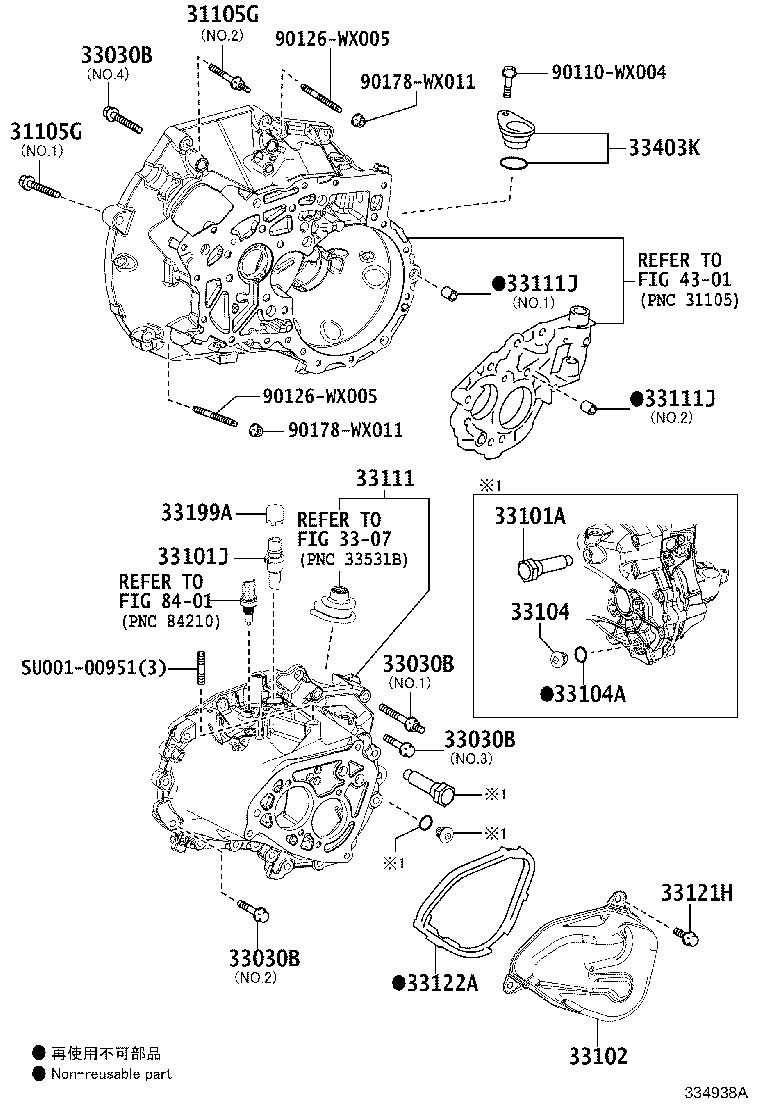

Click highlighted areas on diagram

MA5N

diagram 31105G 31105G 33030B 33030B 33030B 33030B 3307 33101A 33101J 33102 33104 33104A 33111 33111J 33111J 33121H 33122A 33199A 33403K 4301 8401 90110WX004 90126WX005 90126WX005 90178WX011 90178WX011 SU00100951
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-WX014

PAB40

NO.1:REFER ILLUST.

 4
90116-WX002

PAB40

NO.2:REFER ILLUST.

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-WX014

PAB40

NO.1:REFER ILLUST.

 4
90116-WX002

PAB40

NO.2:REFER ILLUST.

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
SU001-00953

PAB40

NO.1:REFER ILLUST.

 1
SU001-A1548

PAB40

NO.3:REFER ILLUST.

 3
90105-WX003

PAB40

NO.2:REFER ILLUST.

 13
SU001-A1516

PAB40

NO.4:REFER ILLUST.

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
SU001-00953

PAB40

NO.1:REFER ILLUST.

 1
SU001-A1548

PAB40

NO.3:REFER ILLUST.

 3
90105-WX003

PAB40

NO.2:REFER ILLUST.

 13
SU001-A1516

PAB40

NO.4:REFER ILLUST.

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
SU001-00953

PAB40

NO.1:REFER ILLUST.

 1
SU001-A1548

PAB40

NO.3:REFER ILLUST.

 3
90105-WX003

PAB40

NO.2:REFER ILLUST.

 13
SU001-A1516

PAB40

NO.4:REFER ILLUST.

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
SU001-00953

PAB40

NO.1:REFER ILLUST.

 1
SU001-A1548

PAB40

NO.3:REFER ILLUST.

 3
90105-WX003

PAB40

NO.2:REFER ILLUST.

 13
SU001-A1516

PAB40

NO.4:REFER ILLUST.

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
SU001-00963

PAB40

 1
33101J - PLUG, BREATHER
SU001-00959

PAB40

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
SU001-00957

PAB40

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
SU001-A0791

PAB40

 1
33104A - GASKET, DRAIN PLUG(MTM)
SU001-A0028

PAB40

 1
33111 - CASE, MANUAL TRANSMISSION
SU001-00955

PAB40

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU001-00954

PAB40

NO.2:REFER ILLUST.

 3
SU001-00514

PAB40

NO.1:REFER ILLUST.

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU001-00954

PAB40

NO.2:REFER ILLUST.

 3
SU001-00514

PAB40

NO.1:REFER ILLUST.

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
SU001-00952

PAB40

 3
33122A - GASKET, MANUAL TRANSMISSION CASE COVER
SU001-00958

PAB40

 1
33199A - PROTECTOR, BREATHER
SU001-A0804

PAB40

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-YV010

PAB40

 1
Common parts
90110-WX004
90126-WX005
90178-WX011
SU001-00951
Linked diagrams
3307
4301
8401
