PAB40L-AHMGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1PP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

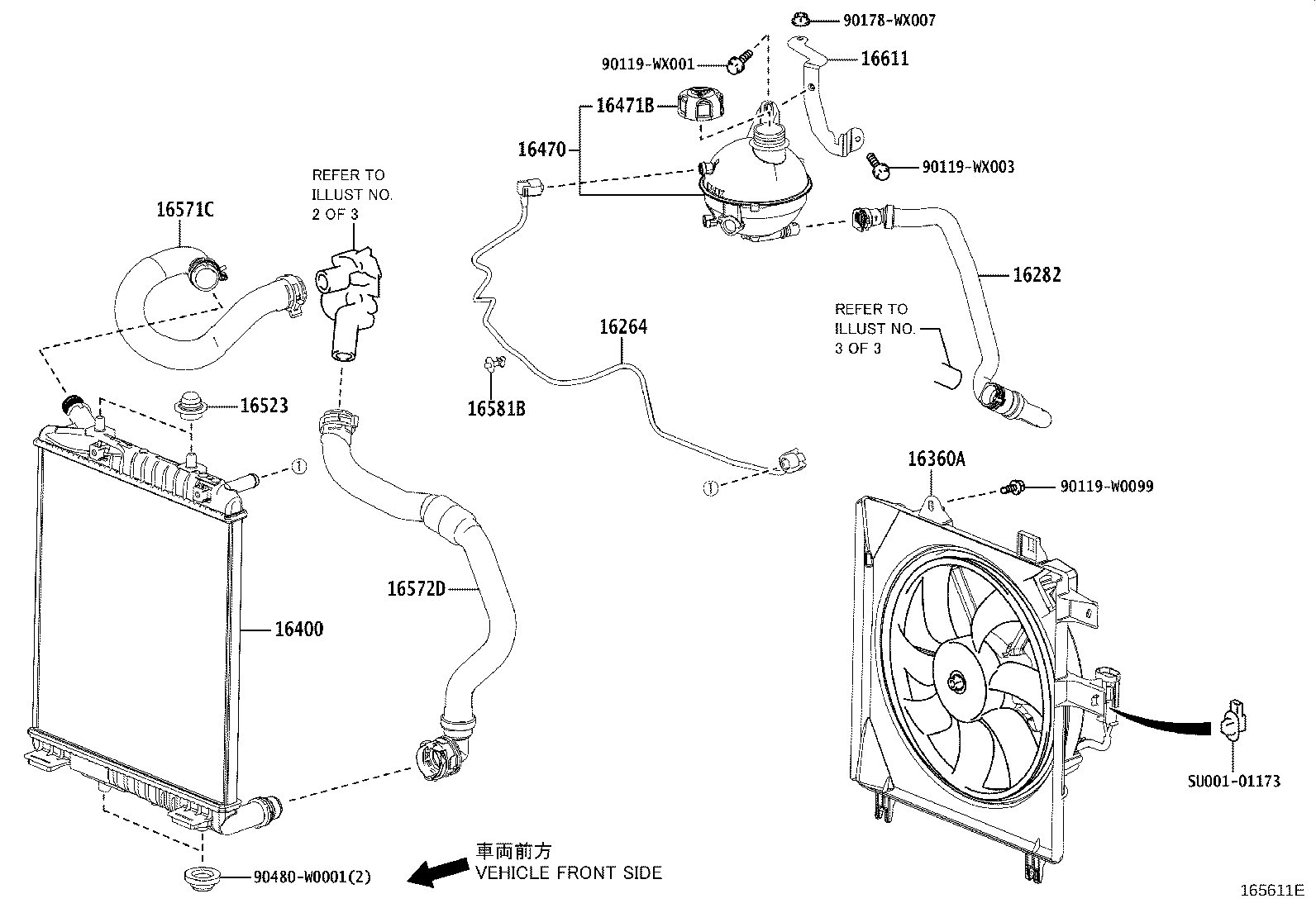

ILLUST NO. 1 OF 3(1405- )1PP

Click highlighted areas on diagram

RADIATOR

diagram 16264 16282 16360A 16400 16470 16471B 16523 16571C 16572D 16581B 16611 90119W0099 90119WX001 90119WX003 90178WX007 90480W0001 SU00101173
Part # Description Qty Price
16264 - HOSE, WATER BY-PASS, NO.2
16264-YV020

1PP..PAB40

 1
16282 - HOSE, WATER BY-PASS, NO.5
16282-YV020

1PP..PAB40

 1
16360A - FAN ASSY, W/MOTOR
16360-YV030

1PP..PAB40

 1
16400 - RADIATOR ASSY
16400-YV030

1PP..PAB40

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-YV020

1PP..PAB40

 1
16471B - CAP, RESERVE TANK
SU001-01180

1PP..PAB40

 1
16523 - CUSHION, SUB-RADIATOR SUPPORT
16523-0Q010

1PP..PAB40

 2
16571C - HOSE, RADIATOR, NO.1
16571-YV020

1PP..PAB40

 1
16572D - HOSE, RADIATOR, NO.2
16572-YV020

1PP..PAB40

 1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-YV020

1PP..PAB40

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-YV020

1PP..PAB40

 1
Common parts
90119-W0099
90119-WX001
90119-WX003
90178-WX007
90480-W0001
SU001-01173

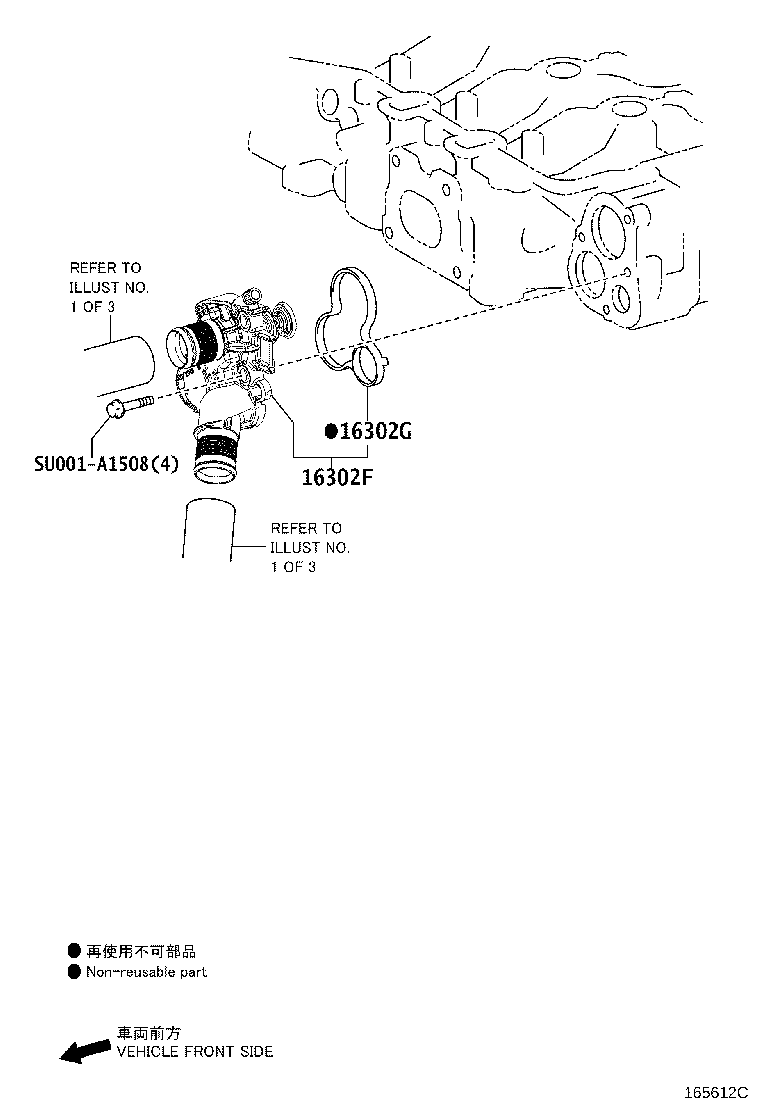

ILLUST NO. 2 OF 3(1405- )1PP

Click highlighted areas on diagram

WATER HOUSING

diagram 16302F 16302G SU001A1508
Part # Description Qty Price
16302F - COVER, ENGINE WATER HOUSING
SU001-01185

1PP..PAB40

 1
SU001-01109

1PP..PAB40

 1
16302G - GASKET, WATER HOUSING COVER
SU001-01110

1PP..PAB40

 1
Common parts
SU001-A1508

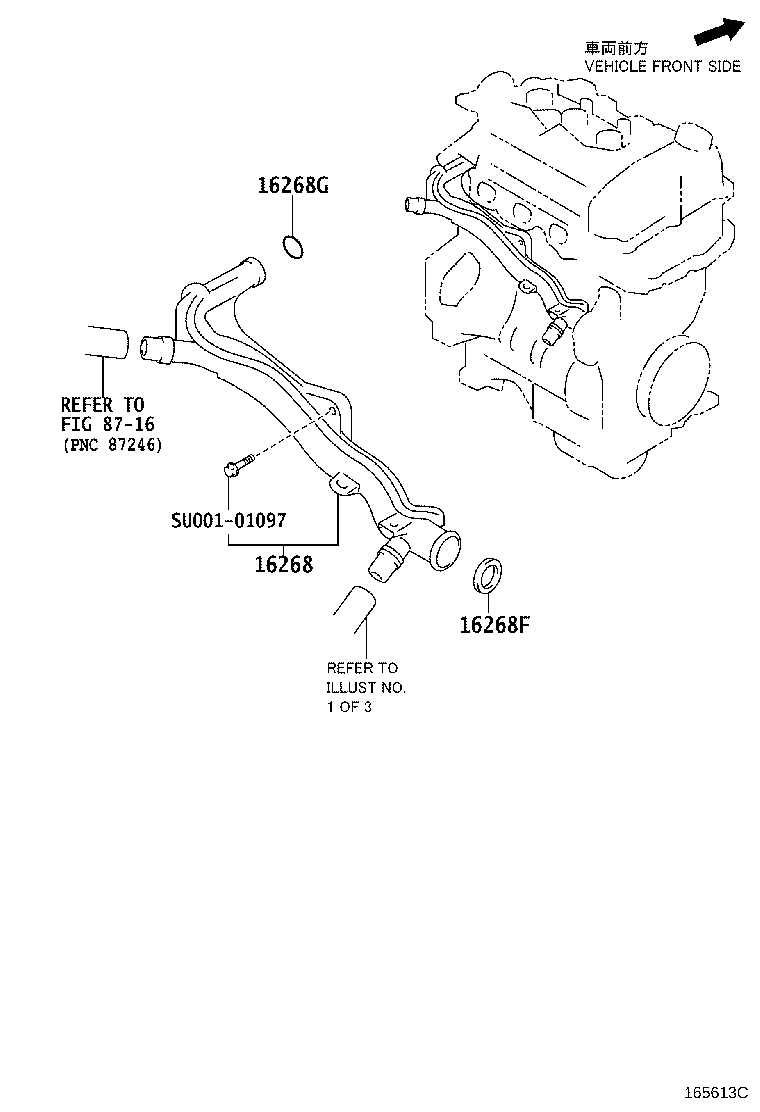

ILLUST NO. 3 OF 3(1405- )1PP

Click highlighted areas on diagram

WATER BYPASS PIPE

diagram 16268 16268F 16268G 8716 SU00101097
Part # Description Qty Price
16268 - PIPE, WATER BY-PASS, NO.1
SU001-01095

1PP..PAB40

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
SU001-01199

1PP..PAB40

 1
16268G - GASKET(FOR WATER BY-PASS PIPE)
SU001-01198

1PP..PAB40

 1
Common parts
SU001-01097
Linked diagrams
8716
