KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1405- )

Click highlighted areas on diagram

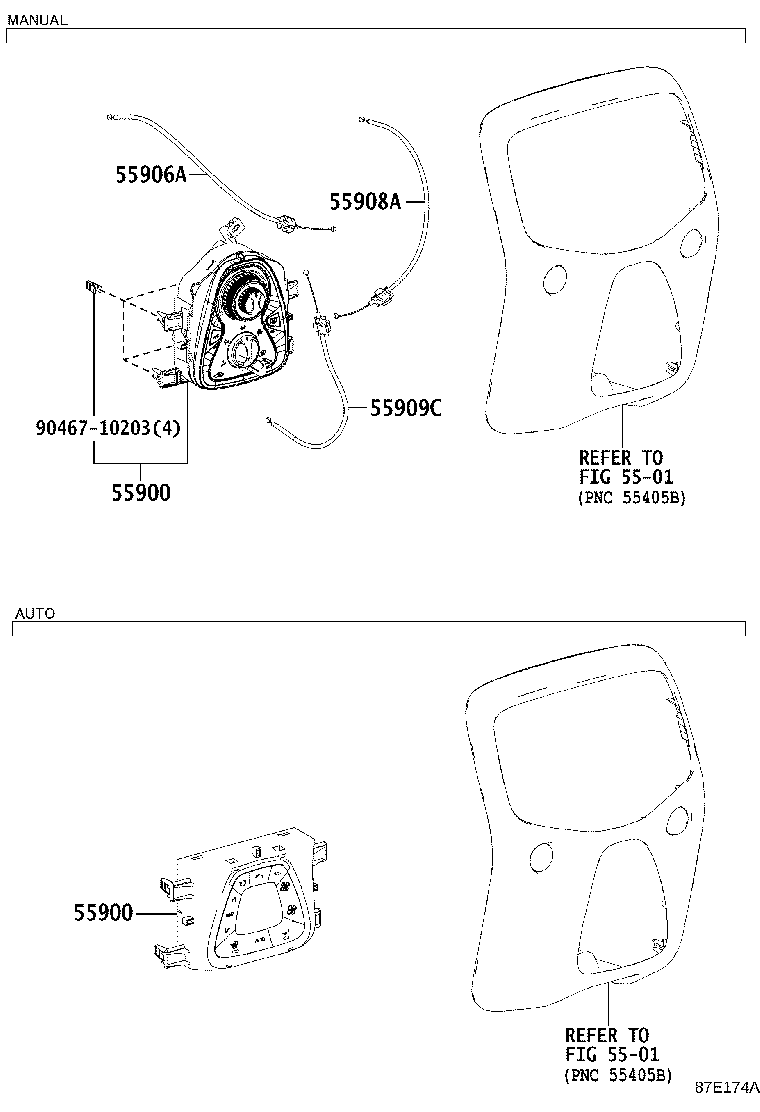

HEATER CONTROL PANEL

diagram 5501 5501 55900 55900 55906A 55908A 55909C 9046710203
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-YV020

KGB40..LEDIN

 1
55900-YV030

KGB40..LEDIN

FRONT AIR CONDITIONER-MANUAL

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-YV020

KGB40..LEDIN

 1
55900-YV030

KGB40..LEDIN

FRONT AIR CONDITIONER-MANUAL

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-YV010

KGB40,PAB40

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-YV010

KGB40..LEDIN

FRONT AIR CONDITIONER-MANUAL

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-YV010

KGB40,PAB40

 1
Common parts
90467-10203
Linked diagrams
5501

ILLUST NO. 2 OF 3(1405- )RHD

Click highlighted areas on diagram

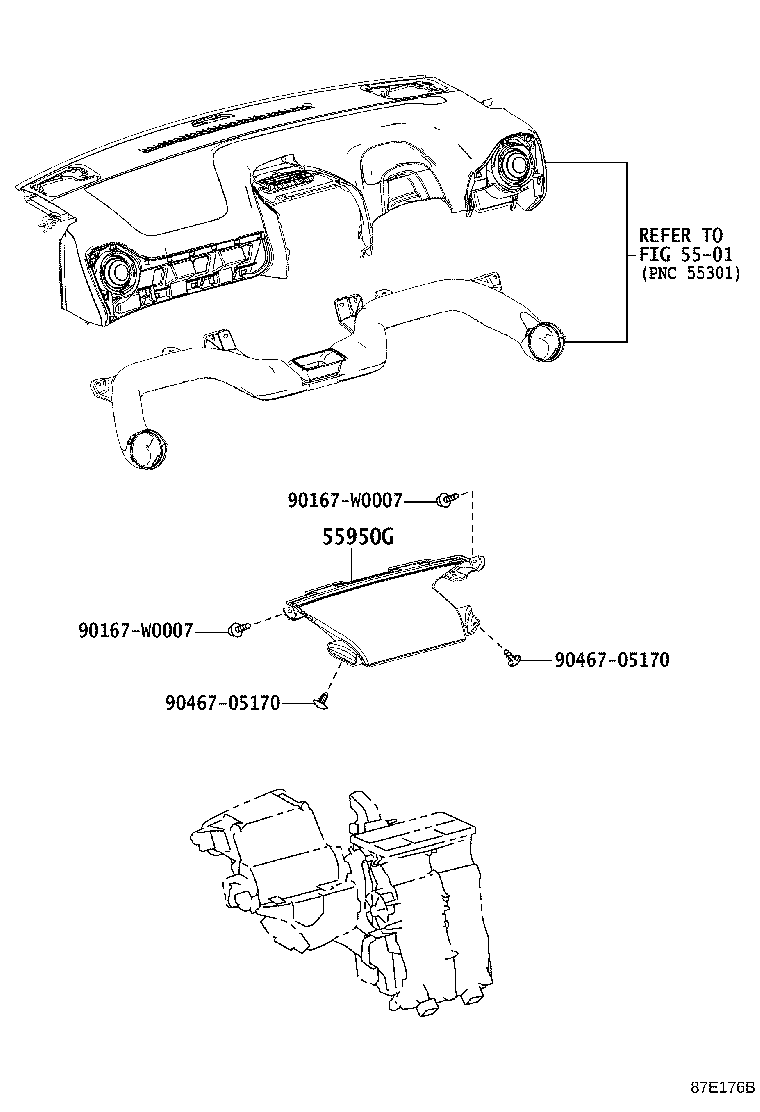

AIR DUCT

diagram 5501 55950G 90167W0007 90167W0007 9046705170 9046705170
Part # Description Qty Price
55950G - NOZZLE ASSY, DEFROSTER
55950-0H020

KGB40,PAB40

 1
Common parts
90167-W0007
90467-05170
Linked diagrams
5501

ILLUST NO. 3 OF 3(1405- )

Click highlighted areas on diagram

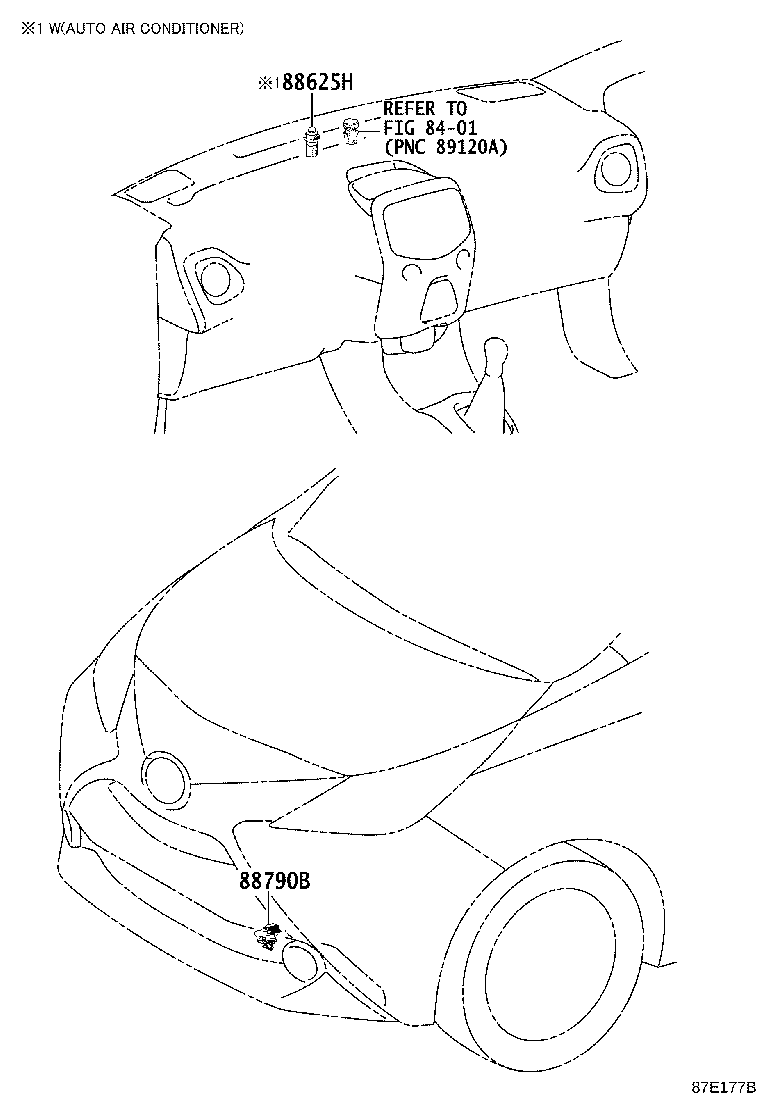

SENSOR

diagram 8401 88625H 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

KGB40,PAB40

 1
Linked diagrams
8401
