KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )5D

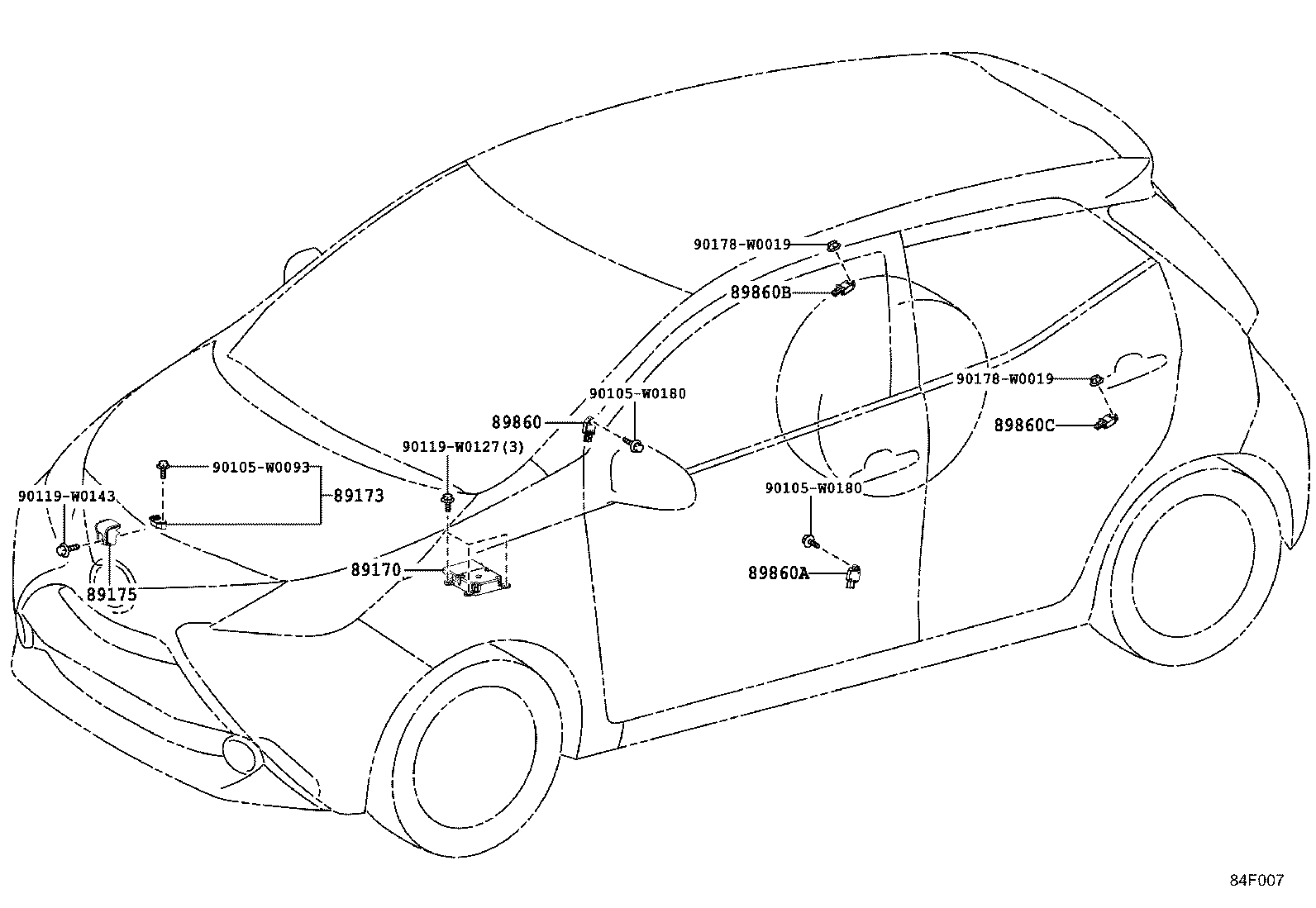

Click highlighted areas on diagram

diagram 89170 89173 89175 89860 89860A 89860B 89860C 90105W0093 90105W0180 90105W0180 90119W0127 90119W0143 90178W0019 90178W0019
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-0H210

KGB40,PAB40..5D

P/N LABEL=891700H210

 1
89170-0H140

KGB40..5D..5F

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT

 1
89170-0H130

KGB40,PAB40..5D

P/N LABEL=891700H130

 1
89173 - SENSOR, AIR BAG, FRONT
89173-09A70

KGB40,PAB40

 1
89175 - BRACKET, AIR BAG SENSOR
89175-0H010

KGB40,PAB40

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0H020

KGB40,PAB40..5D

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0H020

KGB40,PAB40..5D

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-0H040

KGB40,PAB40

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-0H040

KGB40,PAB40

 1
Common parts
90105-W0093
90105-W0180
90119-W0127
90119-W0143
90178-W0019
