KGB40R-AHMRKW (2014)
Toyota Aygo

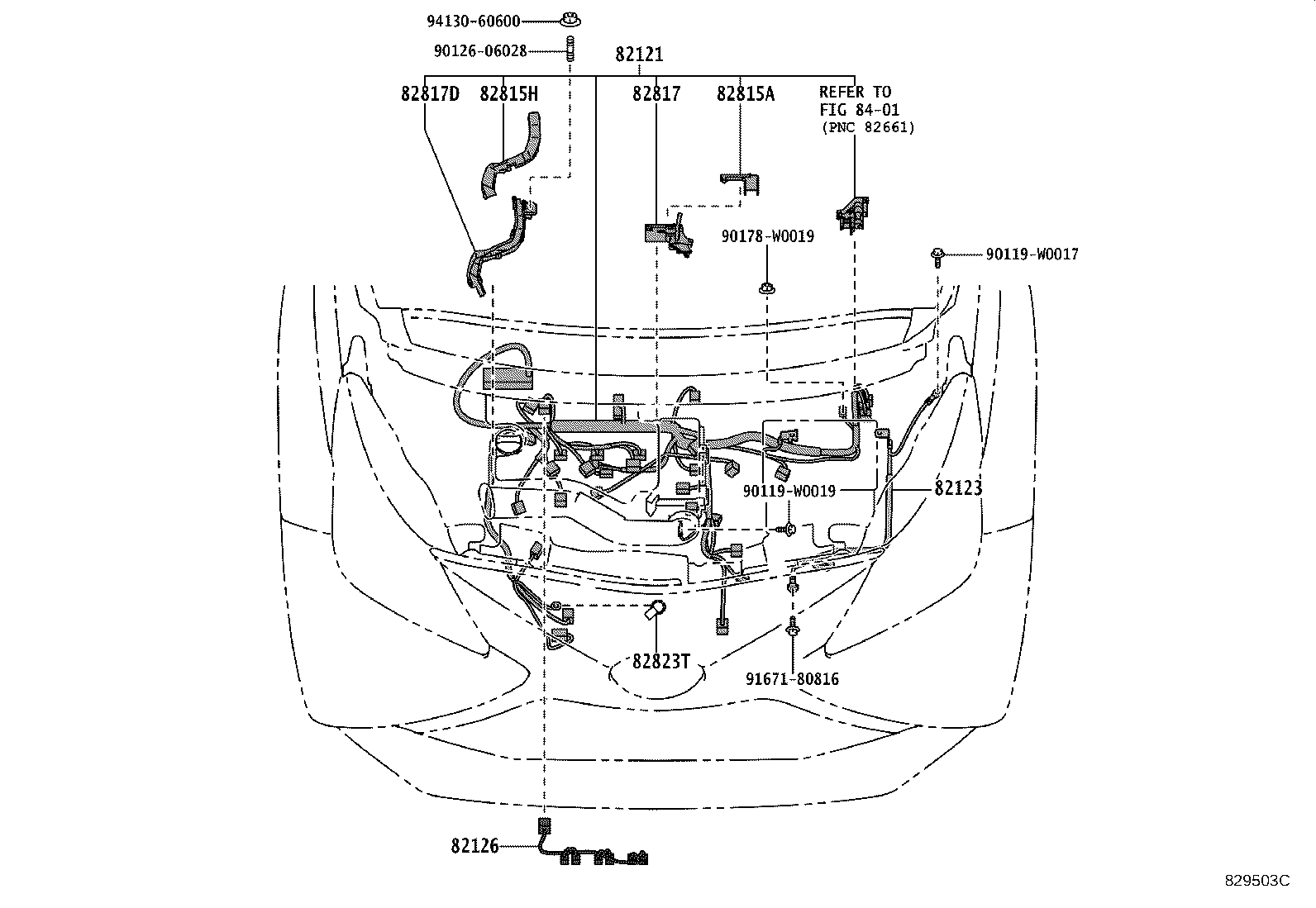

ILLUST NO. 2 OF 8(1405- )KGB40
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0H470 |
KGB40..RHD..LEDIN WITH(STOP & START SYSTEM)&BATTERY-12V 60AH 540A |
1 | ||
| 82121-0H450 |
KGB40..RHD..LEDIN |
1 | ||
| 82121-0H471 |
KGB40..RHD..LEDIN WITH(STOP & START SYSTEM)&BATTERY-12V 60AH 540A |
1 | ||
| 82121-0H460 |
KGB40..RHD..LEDIN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82121-0H480 |
KGB40..RHD..LEDIN WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-MANUAL&BATTERY-12V 60AH 540A |
1 | ||
| 82121-0H461 |
KGB40..RHD..LEDIN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82121-0H451 |
KGB40..RHD..LEDIN |
1 | ||
| 82121-0H472 |
KGB40..RHD..LEDIN WITH(STOP & START SYSTEM)&BATTERY-12V 60AH 540A |
1 | ||
| 82121-0H481 |
KGB40..RHD..LEDIN WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-MANUAL&BATTERY-12V 60AH 540A |
1 | ||
| 82121-0H462 |
KGB40..RHD..LEDIN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82121-0H482 |
KGB40..RHD..LEDIN WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-MANUAL&BATTERY-12V 60AH 540A |
1 | ||
| 82121-0H452 |
KGB40..RHD..LEDIN |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0H030 |
KGB40 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0H060 |
KGB40 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0H180 |
KGB40 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KGB40 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0019 | ||||
| 90126-06028 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
| 94130-60600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

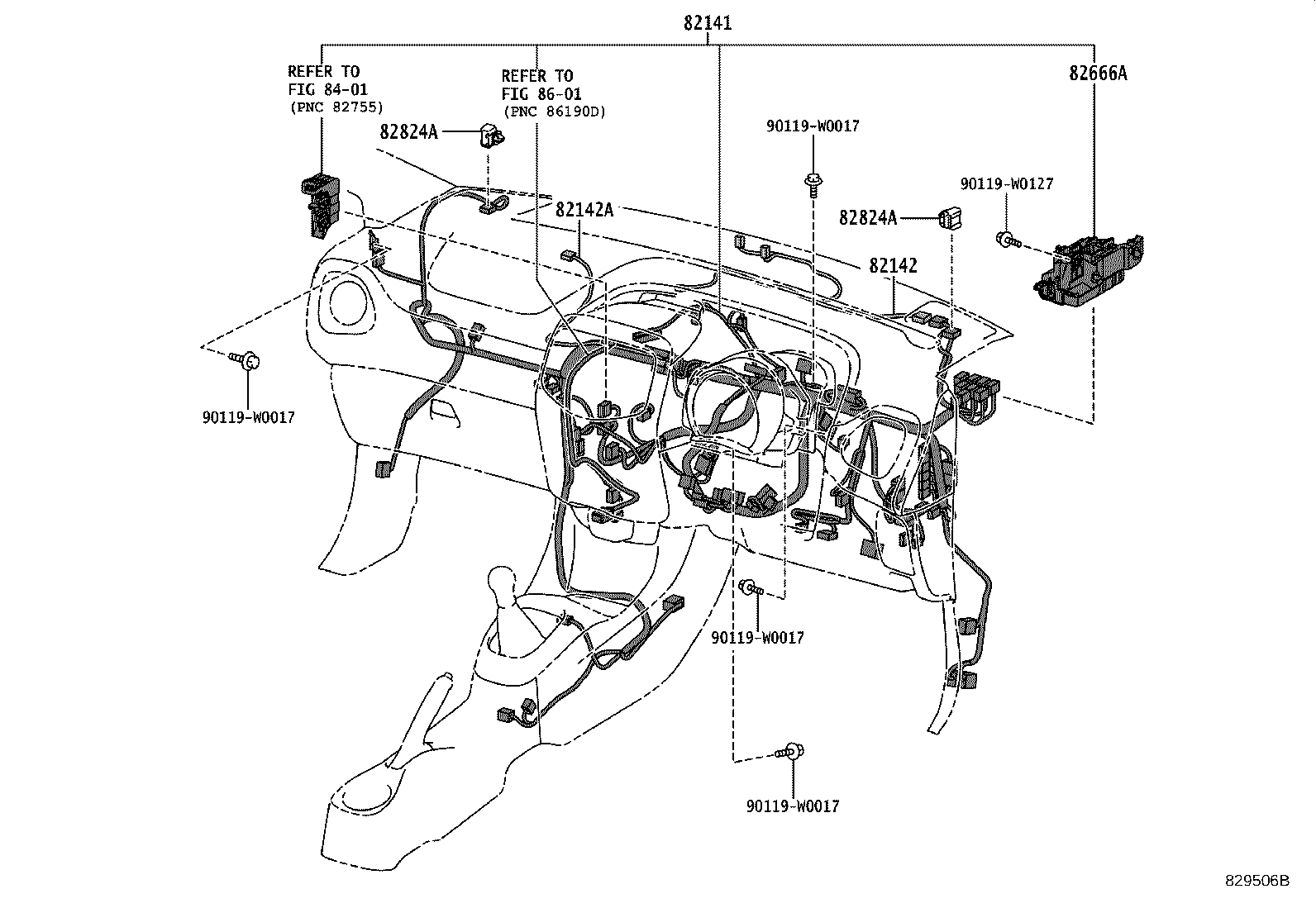

ILLUST NO. 3 OF 8(1405- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0H790 |
KGB40..RHD..5D..5F VSC-WITHOUT |
1 | ||
| 82141-0H800 |
KGB40,PAB40..RHD..5F |
1 | ||
| 82141-0H830 |
KGB40..RHD..5F WITH(STOP & START SYSTEM) |
1 | ||
| 82141-0HC50 |
KGB40..RHD..5D..LEDIN VSC-WITHOUT |
1 | ||
| 82141-0HC60 |
KGB40,PAB40..RHD..5F |
1 | ||
| 82141-0HC80 |
KGB40..RHD..5F WITH(STOP & START SYSTEM) |
1 | ||
| 82141-0HC51 |
KGB40..RHD..5D..LEDIN VSC-WITHOUT |
1 | ||
| 82141-0HC61 |
KGB40,PAB40..RHD..5F |
1 | ||
| 82141-0HC51 |
KGB40..RHD..5D..LEDIN PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT |
1 | ||
| 82141-0HC81 |
KGB40..RHD..5F WITH(STOP & START SYSTEM) |
1 | ||
| 82141-0HE21 |
KGB40..RHD..LEDIN WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH&STEERING SWITCH-AUDIO,TELEPHONE,LANE DEPARTURE ALEART |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0H010 |
KGB40,PAB40 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0H120 |
KGB40,PAB40..RHD |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-52310 |
KGB40..LEDIN |
2 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-52310 |
KGB40..LEDIN |
2 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0127 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

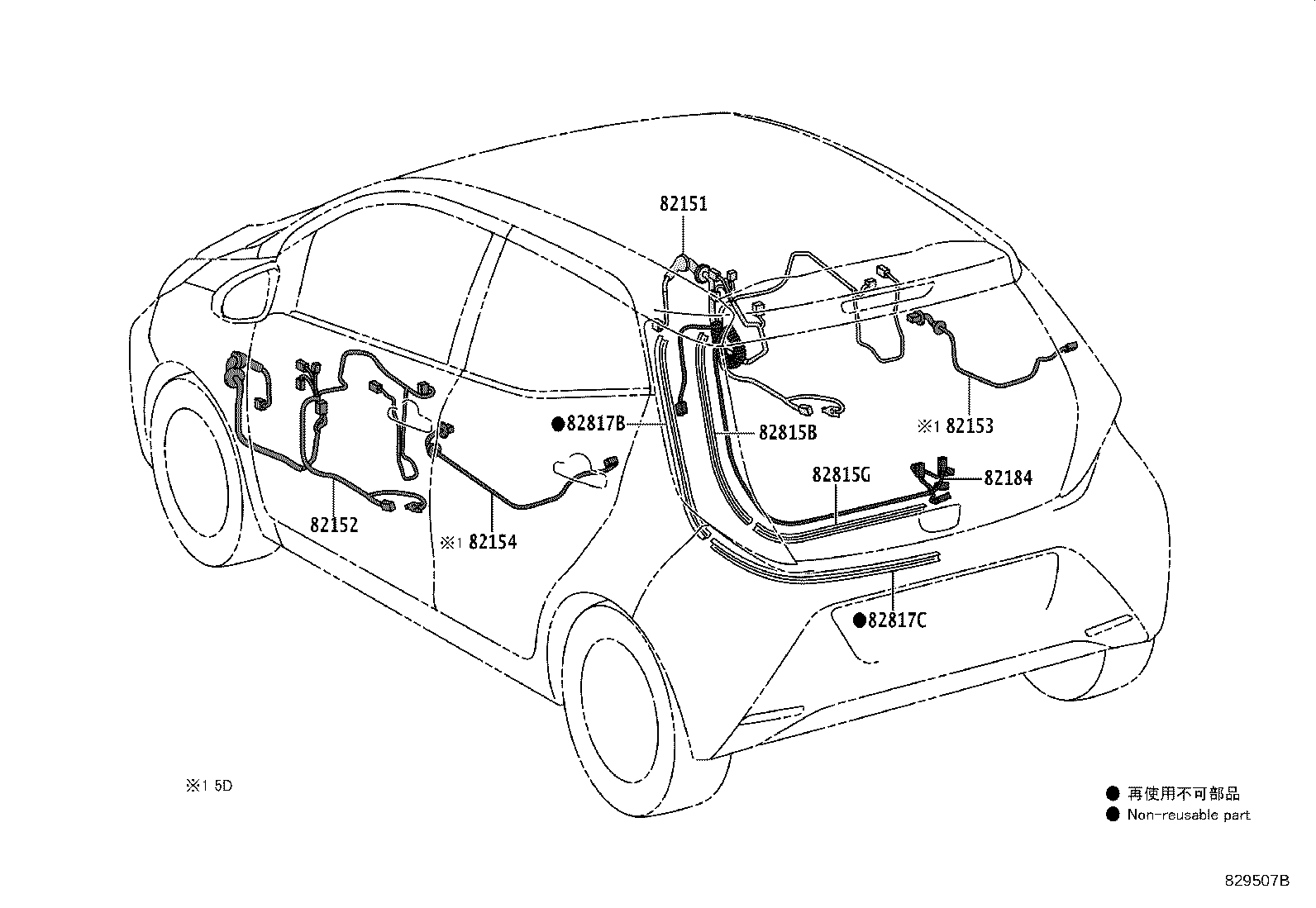

ILLUST NO. 4 OF 8(1405- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0H350 |
KGB40..5D..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 82151-0H390 |
KGB40..RHD..5D..LEDIN |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-0H350 |
KGB40..5D..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 82152-0H300 |
KGB40..RHD..5D..LEDIN |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0H020 |
KGB40,PAB40..5D |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-0H020 |
KGB40,PAB40..5D |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0H030 |
KGB40,PAB40 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0H070 |
KGB40,PAB40 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-0H080 |
KGB40,PAB40 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0H230 |
KGB40,PAB40 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-0H240 |
KGB40,PAB40 |
1 | ||

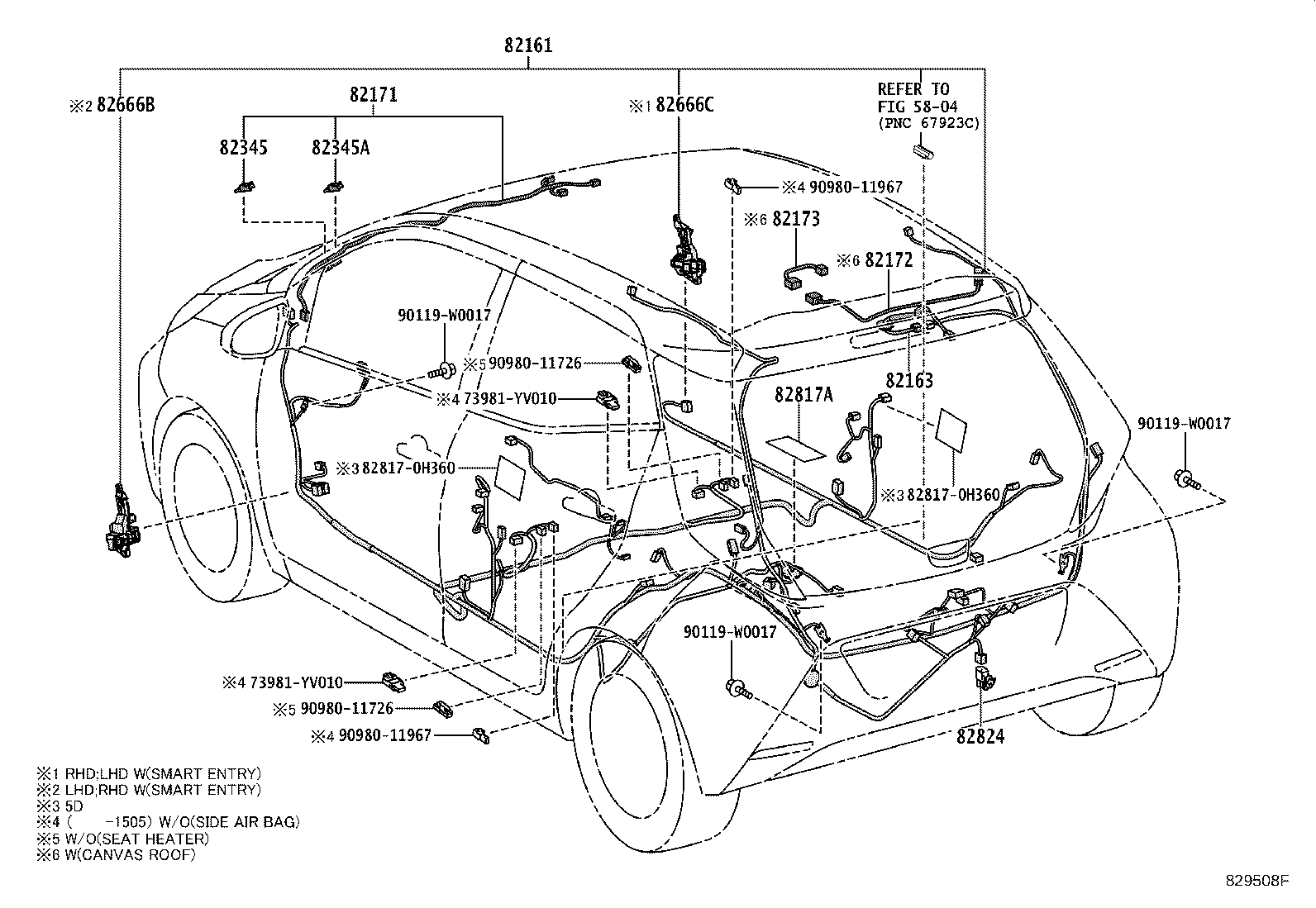

ILLUST NO. 5 OF 8(1405- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0H810 |
KGB40..RHD..5D..LEDIN SRS AIR BAG-WITH(*DRP & SIDE) |
1 | ||
| 82161-0H820 |
KGB40,PAB40..RHD..5D |
1 | ||
| 82161-0H810 |
KGB40..RHD..5D..LEDIN SRS AIR BAG-WITH(*DRP) |
1 | ||
| 82161-0HB70 |
KGB40..RHD..5D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT |
1 | ||
| 82161-0HB80 |
KGB40,PAB40..RHD..5D |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-0H010 |
KGB40,PAB40 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0H100 |
KGB40..RHD..LEDIN |
1 | ||
| 82171-0H110 |
KGB40..RHD..LEDIN AUDIO-AM/FM & 4SPEAKER & BLUETOOTH |
1 | ||
| 82171-0H330 |
KGB40..RHD..LEDIN PRE-COLLISION SYSTEM-WITH&AUDIO-AM/FM & 4SPEAKER & BLUETOOTH |
1 | ||
| 82171-0H110 |
KGB40..RHD..LEDIN AUDIO-AM/FM & DAB & 4SPEAKER & BLUETOOTH |
1 | ||
| 82171-0H330 |
KGB40..RHD..LEDIN PRE-COLLISION SYSTEM-WITH&AUDIO-AM/FM & DAB & 4SPEAKER & BLUETOOTH |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
KGB40..LEDIN PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82345A - DIODE | ||||
| 82345-12060 |
KGB40..LEDIN PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-0H140 |
KGB40,PAB40..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-0H080 |
KGB40,PAB40 |
1 | ||
| Common parts | ||||
| 73981-YV010 | ||||
| 82817-0H360 | ||||
| 90119-W0017 | ||||
| 90980-11726 | ||||
| 90980-11967 | ||||
| Linked diagrams | ||||
| 5804 | ||||

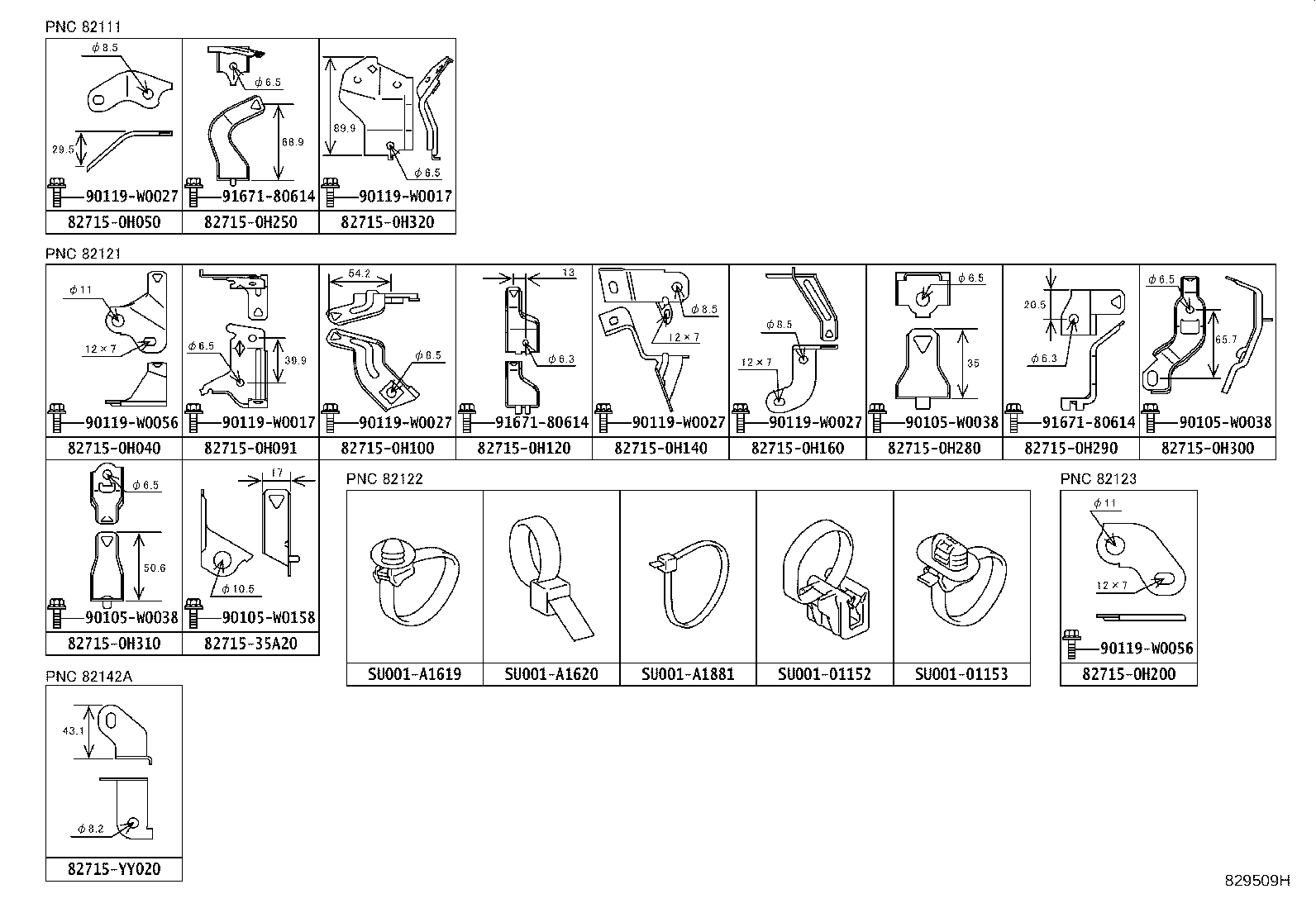

ILLUST NO. 6 OF 8(1405- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0H040 | ||||
| 82715-0H050 | ||||
| 82715-0H091 | ||||
| 82715-0H100 | ||||
| 82715-0H120 | ||||
| 82715-0H140 | ||||
| 82715-0H160 | ||||
| 82715-0H200 | ||||
| 82715-0H250 | ||||
| 82715-0H280 | ||||
| 82715-0H290 | ||||
| 82715-0H300 | ||||
| 82715-0H310 | ||||
| 82715-0H320 | ||||
| 82715-35A20 | ||||
| 82715-YY020 | ||||
| 90105-W0038 | ||||
| 90105-W0158 | ||||
| 90119-W0017 | ||||
| 90119-W0027 | ||||
| 90119-W0056 | ||||
| 91671-80614 | ||||
| SU001-01152 | ||||
| SU001-01153 | ||||
| SU001-A1619 | ||||
| SU001-A1620 | ||||
| SU001-A1881 | ||||

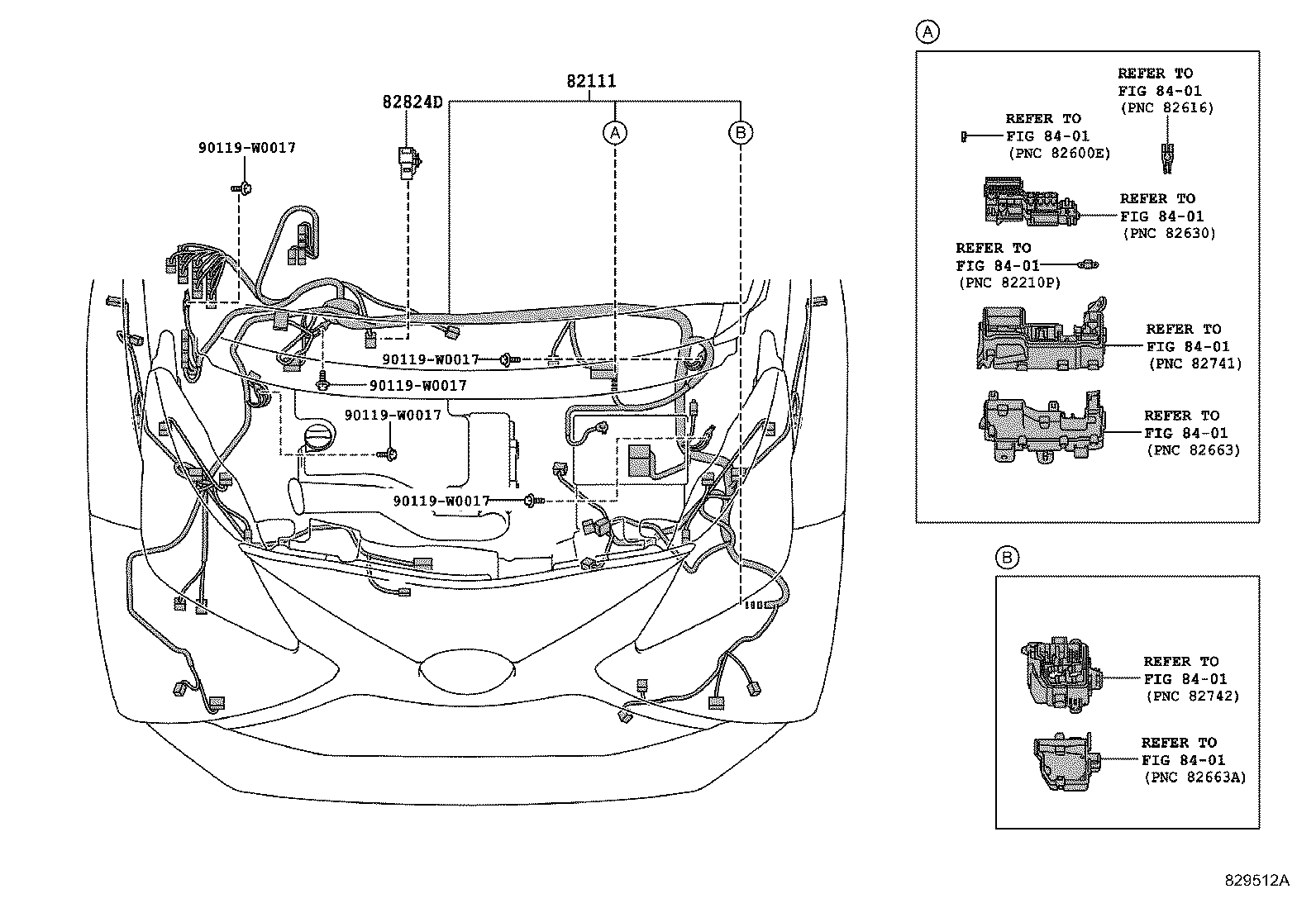

ILLUST NO. 1 OF 8(1405- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0HF90 |
KGB40..RHD..5F |
1 | ||
| 82111-0HG10 |
KGB40..RHD..5D..5F TROPIC SPEC&VSC-WITHOUT |
1 | ||
| 82111-0HG20 |
KGB40..RHD..5F TROPIC SPEC |
1 | ||
| 82111-0HG30 |
KGB40..RHD..5F WITH(STOP & START SYSTEM)&BATTERY-12V 60AH 540A |
1 | ||
| 82111-0HG40 |
KGB40..RHD..5F WITH(STOP & START SYSTEM)&TROPIC SPEC&BATTERY-12V 60AH 540A |
1 | ||
| 82111-0HP60 |
KGB40..RHD..5D..LEDIN TROPIC SPEC&VSC-WITHOUT |
1 | ||
| 82111-0HP90 |
KGB40..RHD..5F WITH(STOP & START SYSTEM)&TROPIC SPEC&BATTERY-12V 60AH 540A |
1 | ||
| 82111-0HP80 |
KGB40..RHD..5F WITH(STOP & START SYSTEM)&BATTERY-12V 60AH 540A |
1 | ||
| 82111-0HP70 |
KGB40..RHD..5F TROPIC SPEC |
1 | ||
| 82111-0HT30 |
KGB40..RHD..5F |
1 | ||
| 82111-0HP61 |
KGB40..RHD..5D..LEDIN TROPIC SPEC&VSC-WITHOUT |
1 | ||
| 82111-0HP81 |
KGB40..RHD..5F WITH(STOP & START SYSTEM)&BATTERY-12V 60AH 540A |
1 | ||
| 82111-0HP91 |
KGB40..RHD..5F WITH(STOP & START SYSTEM)&TROPIC SPEC&BATTERY-12V 60AH 540A |
1 | ||
| 82111-0HP71 |
KGB40..RHD..5F TROPIC SPEC |
1 | ||
| 82111-0HT31 |
KGB40..RHD..5F |
1 | ||
| 82111-0HP61 |
KGB40..RHD..5D..LEDIN TROPIC SPEC&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 90980-11300 |
KGB40,PAB40..RHD..5F |
1 | ||
| 90980-11300 |
KGB40..RHD..5D..5F TROPIC SPEC&VSC-WITHOUT |
1 | ||
| 90980-11300 |
KGB40..RHD..5F WITH(STOP & START SYSTEM) |
1 | ||
| 90980-11300 |
KGB40..RHD..5F WITH(STOP & START SYSTEM)&BATTERY-12V 60AH 540A |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 8401 | ||||

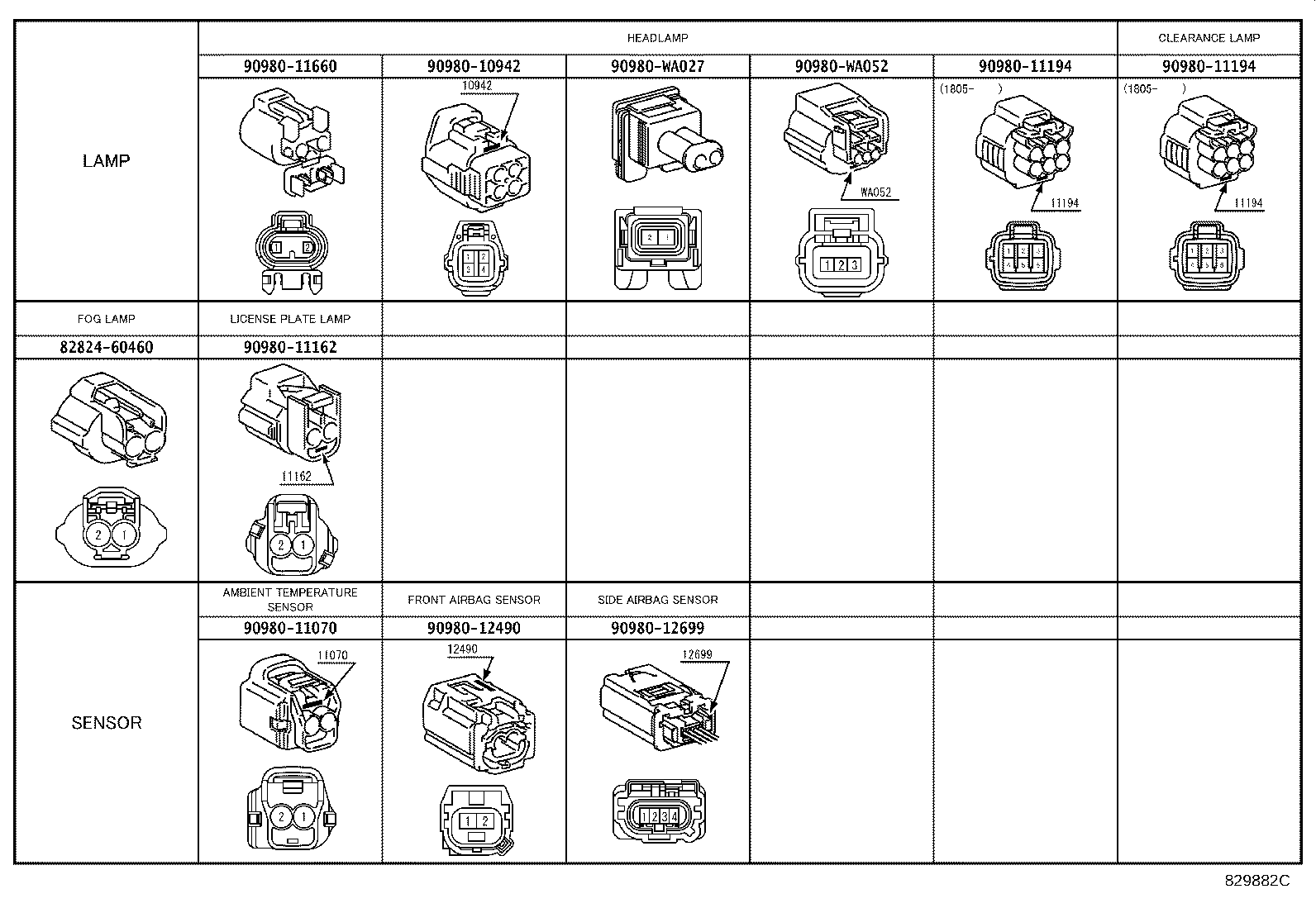

ILLUST NO. 7 OF 8(1405- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10942 | ||||
| 90980-11070 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11660 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-WA027 | ||||
| 90980-WA052 | ||||

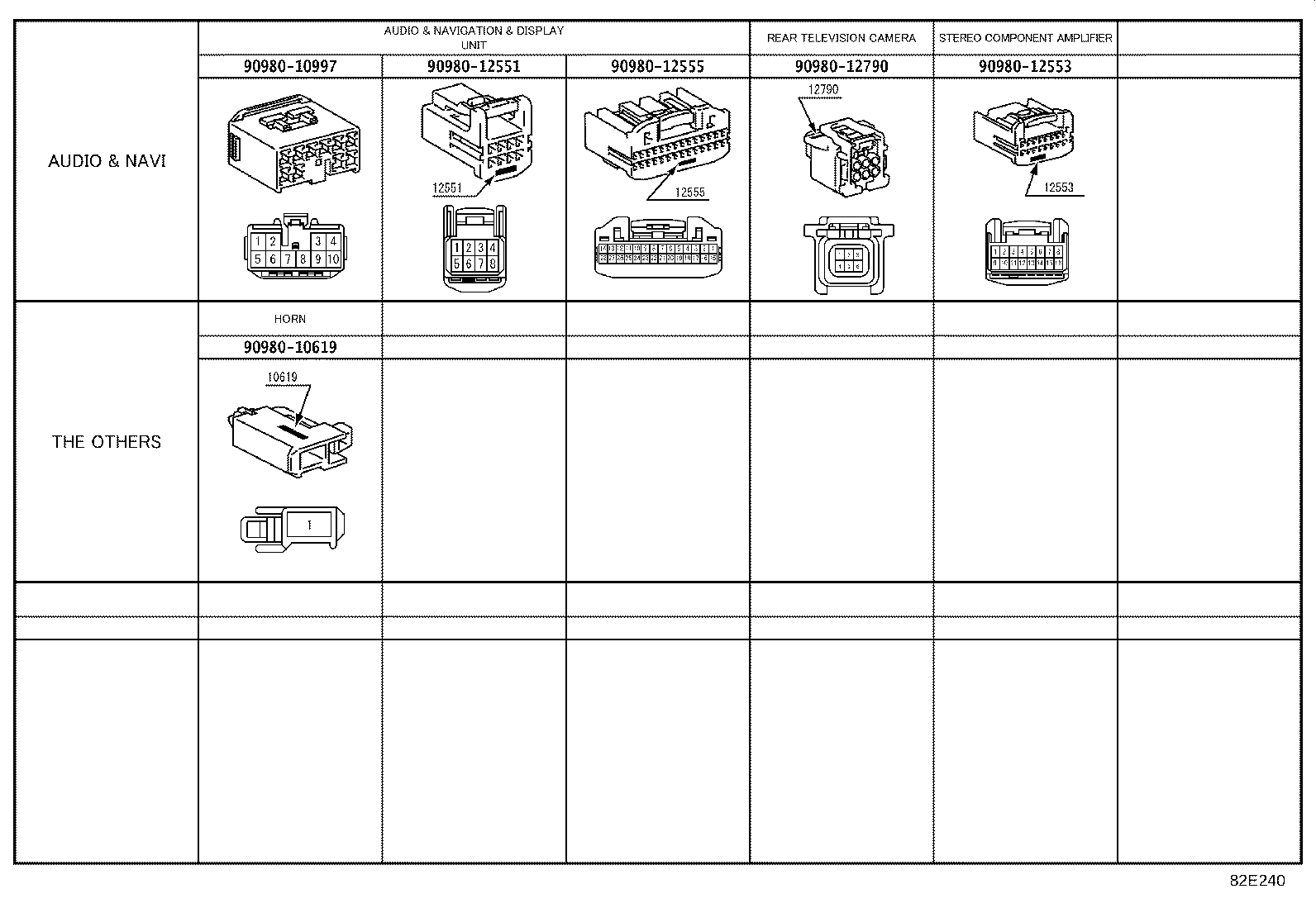

ILLUST NO. 8 OF 8(1405- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10997 | ||||
| 90980-12551 | ||||
| 90980-12553 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
