KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )

Click highlighted areas on diagram

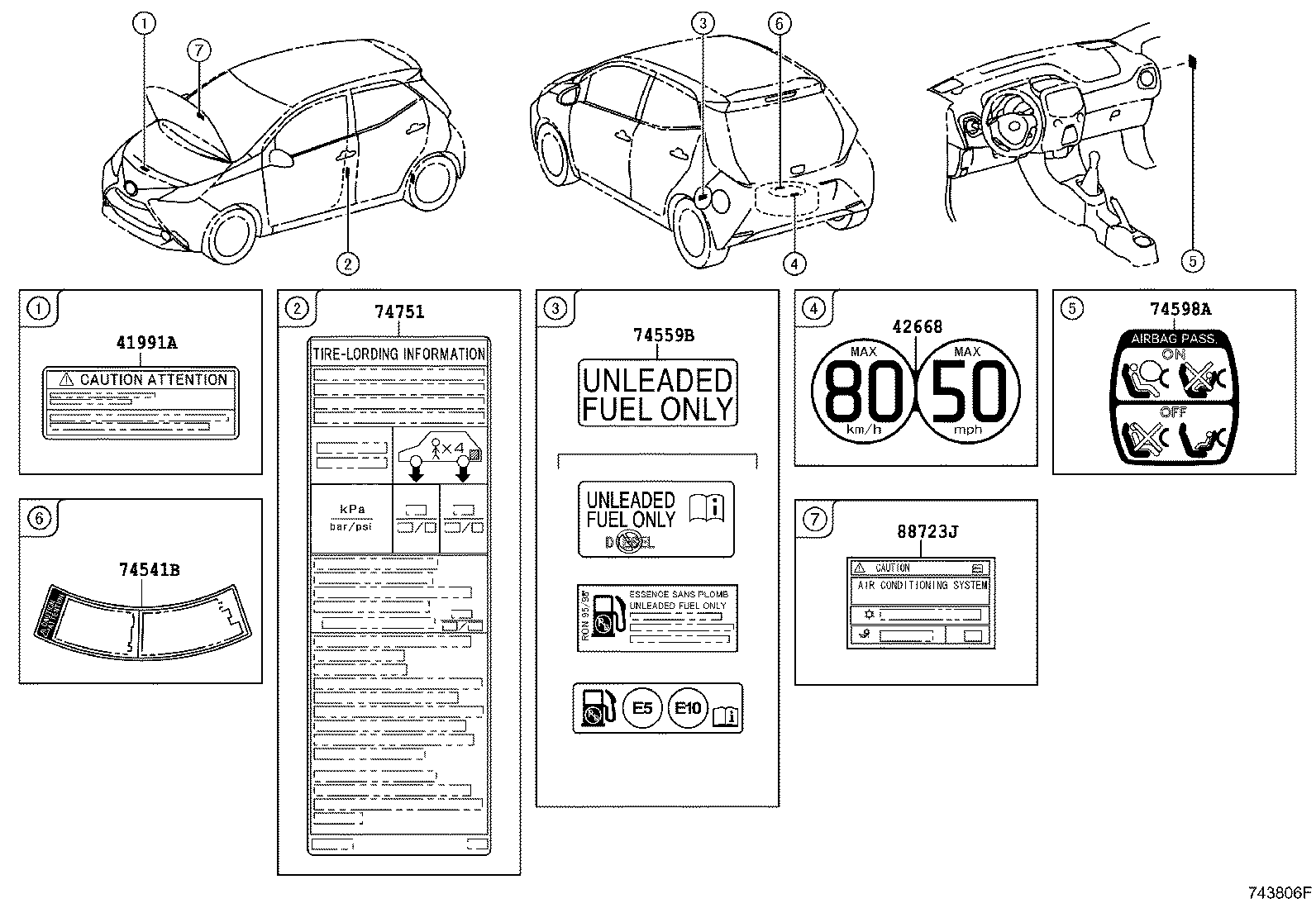

diagram 41991A 42668 74541B 74559B 74598A 74751 88723J
Part # Description Qty Price
42668 - LABEL, COMPACT SPARE TIRE CAUTION
42668-0F030

KGB40,PAB40

SPARE TIRE-WITH(TEMPORARY, T125/70D15)

 1
42668-0F030

PAB40..LHD;KGB40..LHD..3D;KGB40..5D..LEDIN;KGB40..LHD..5D..LV1

SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

 1
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-12070

PAB40..LHD;KGB40..LHD..3D;KGB40..5D..LEDIN;KGB40..LHD..5D..LV1

SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

 1
74559B - LABEL, FUEL INFORMATION
74559-05010

KGB40

 1
74559-YV040

KGB40,PAB40

 1
74559-20140

KGB40

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-0H030

KGB40,PAB40

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0H030

KGB40,PAB40

 1
42661-0H040

PAB40..LHD;KGB40..LHD..3D;KGB40..5D..LEDIN;KGB40..LHD..5D..LV1

TIRE & DISC WHEEL-165/65R14 STEEL&SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-0H010

KGB40..LEDIN

FRONT AIR CONDITIONER-MANUAL

 1
88723-0H040

KGB40..LEDIN

FRONT AIR CONDITIONER-MANUAL

 1
88723-0H010

KGB40..5D..LEDIN;KGB40..LHD..3D..LEDIN

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-MANUAL

 1
88723-0H040

KGB40..LEDIN

EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-MANUAL

 1
