KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

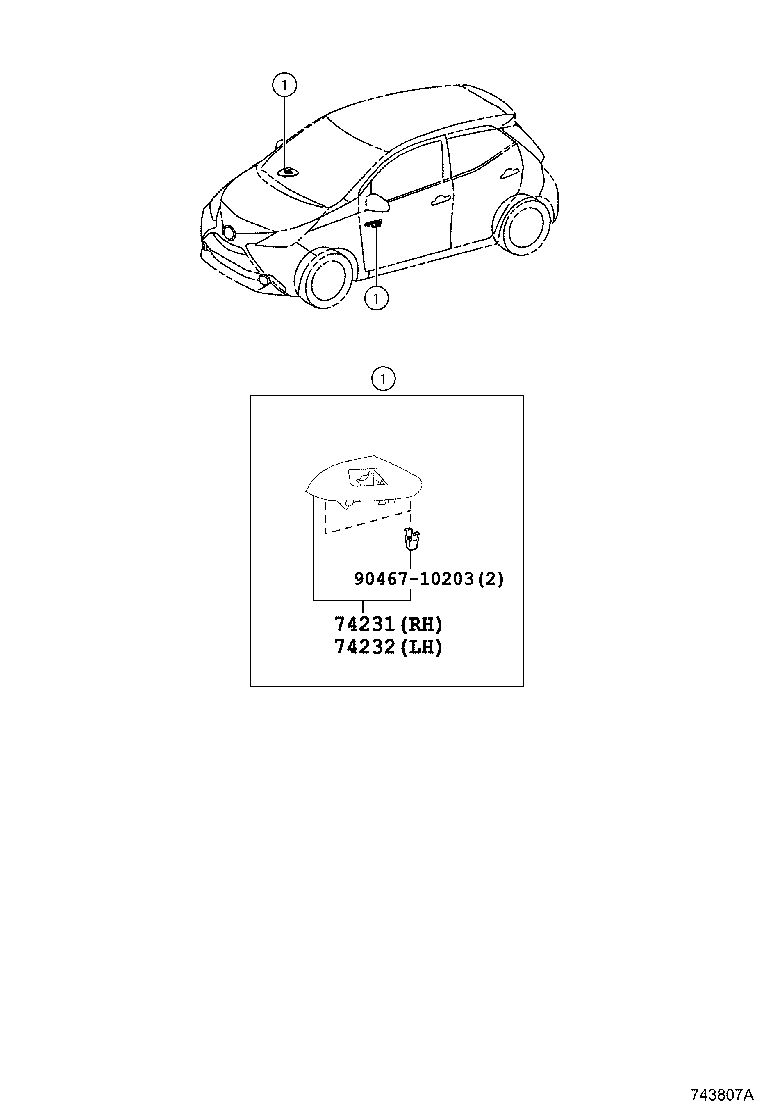

ILLUST NO. 1 OF 2(1405- )

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 9046710203
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0H030B0

KGB40..RHD..LEDIN

WITHOUT(PACKAGE OPTION),PSA MISTRAL HZD,TRIM2#

 1
74231-0H030B0

KGB40..RHD..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0H030B0

KGB40..RHD..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
74232-0H030B0

KGB40..RHD..LEDIN

WITHOUT(PACKAGE OPTION),PSA MISTRAL HZD,TRIM2#

 1
Common parts
90467-10203

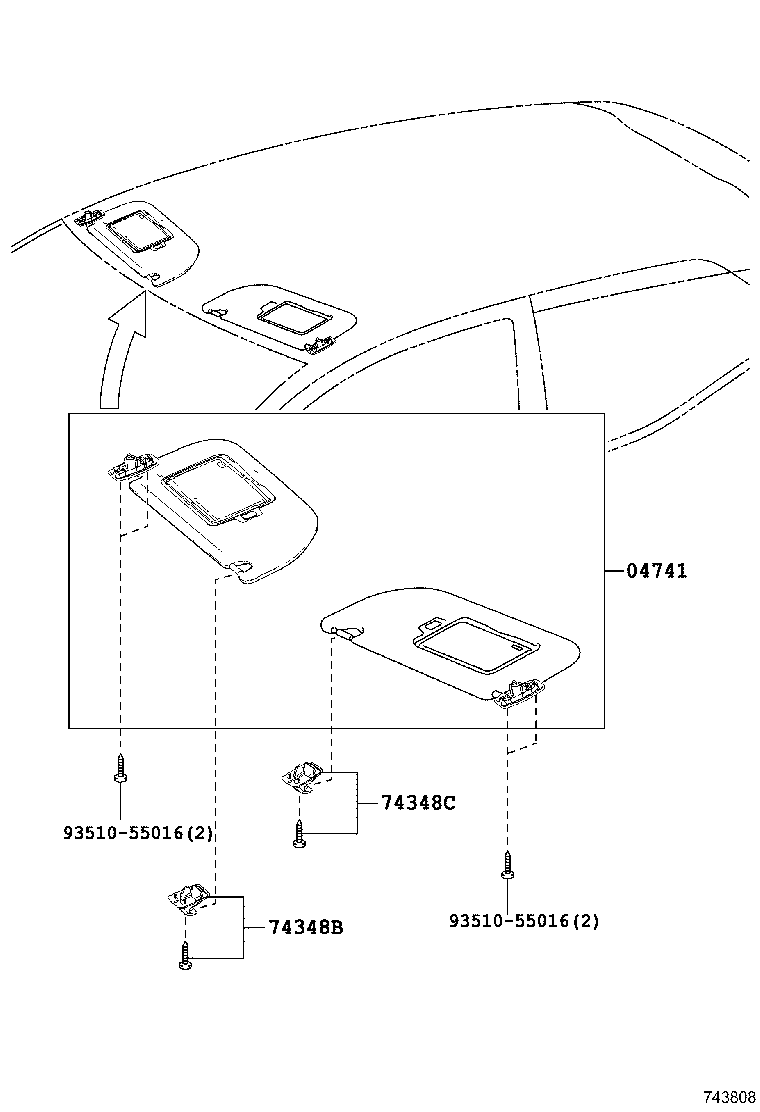

ILLUST NO. 2 OF 2(1405- )

Click highlighted areas on diagram

VISOR

diagram 04741 74348B 74348C 9351055016 9351055016
Part # Description Qty Price
04741 - VISOR KIT
04741-0H070B0

KGB40..RHD..LEDIN

LIGHT GREY,TRIM2#

 1
74348B - HOLDER, VISOR, RH
74348-0H010B0

KGB40..LEDIN

LIGHT GREY,TRIM2#

 1
74348C - HOLDER, VISOR, LH
74348-0H010B0

KGB40..LEDIN

LIGHT GREY,TRIM2#

 1
Common parts
93510-55016
