KGB40R-AHMRKW (2014)
Toyota Aygo
(1405- )

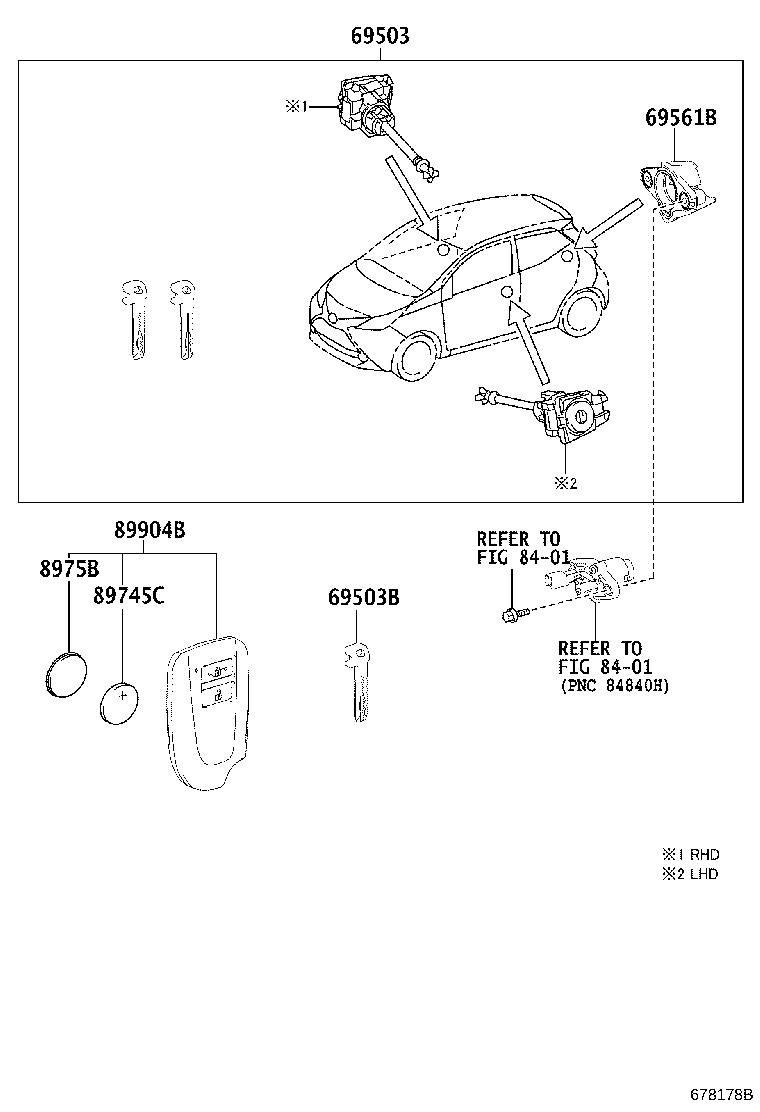

W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 89704-0H100 |
KGB40,PAB40..RHD |
1 | ||
| 89704-0H100 |
KGB40..RHD..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 69005-0H070 |
KGB40..RHD..LEDIN WITHOUT(PACKAGE OPTION)&WIRELESS DOOR LOCK-WITHOUT |
1 | ||
| 89704-0H101 |
KGB40,PAB40..RHD |
1 | ||
| 89704-0H101 |
KGB40..RHD..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 69561B - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-0H050 |
KGB40,PAB40 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

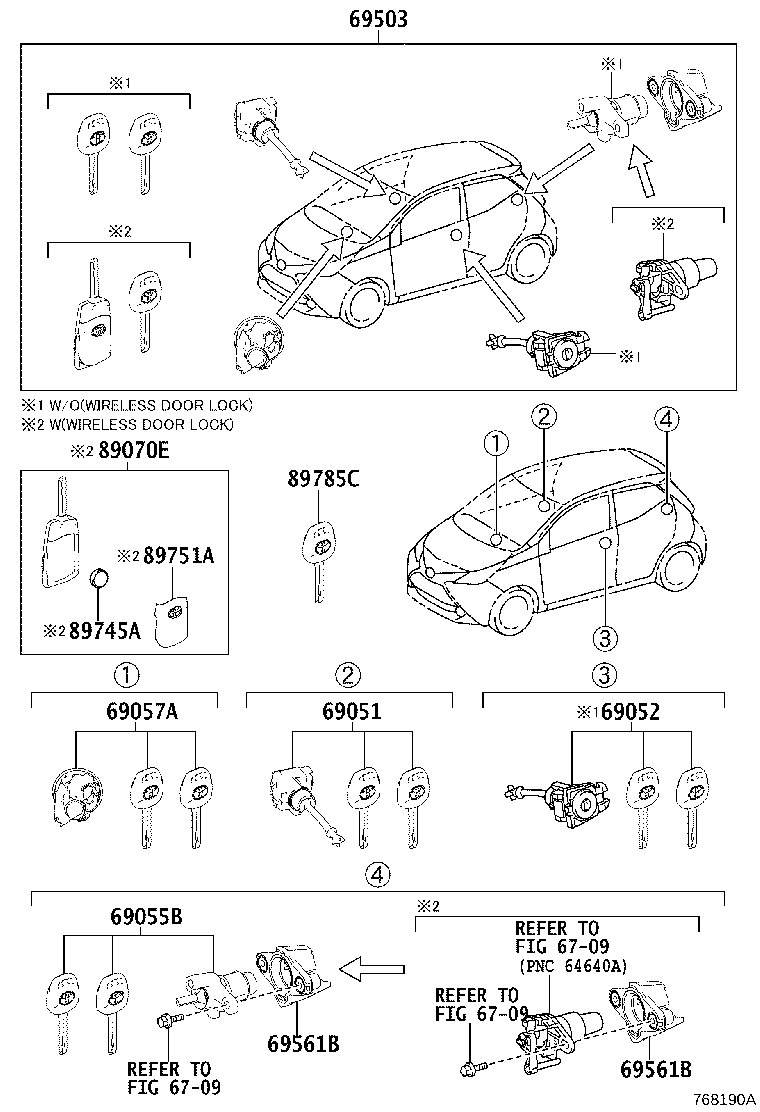

(1405- )RHD
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0H050 |
KGB40,PAB40..RHD |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0H050 |
KGB40..RHD..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-0H050 |
KGB40..RHD..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0H080 |
KGB40,PAB40 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 89704-0H100 |
KGB40,PAB40..RHD |
1 | ||
| 89704-0H100 |
KGB40..RHD..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 69005-0H070 |
KGB40..RHD..LEDIN WITHOUT(PACKAGE OPTION)&WIRELESS DOOR LOCK-WITHOUT |
1 | ||
| 89704-0H101 |
KGB40,PAB40..RHD |
1 | ||
| 89704-0H101 |
KGB40..RHD..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 69561B - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-0H050 |
KGB40,PAB40 |
1 | ||
| 69561B - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-0H050 |
KGB40,PAB40 |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-0H140 |
KGB40..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 89070-0H140 |
KGB40,PAB40 |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-0H010 |
KGB40,PAB40 CR2016 |
1 | ||
| 89745-0H010 |
KGB40..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-0H060 |
KGB40,PAB40 |
1 | ||
| 89751-0H060 |
KGB40..LEDIN WITHOUT(PACKAGE OPTION) |
1 | ||
| 89785C - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-0H080 |
KGB40..LEDIN WITHOUT(PACKAGE OPTION)&WIRELESS DOOR LOCK-WITHOUT,CUT KEY |
2 | ||
| 89785-0H080 |
KGB40,PAB40 CUT KEY |
1 | ||
| Linked diagrams | ||||
| 6709 | ||||
