KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )5D

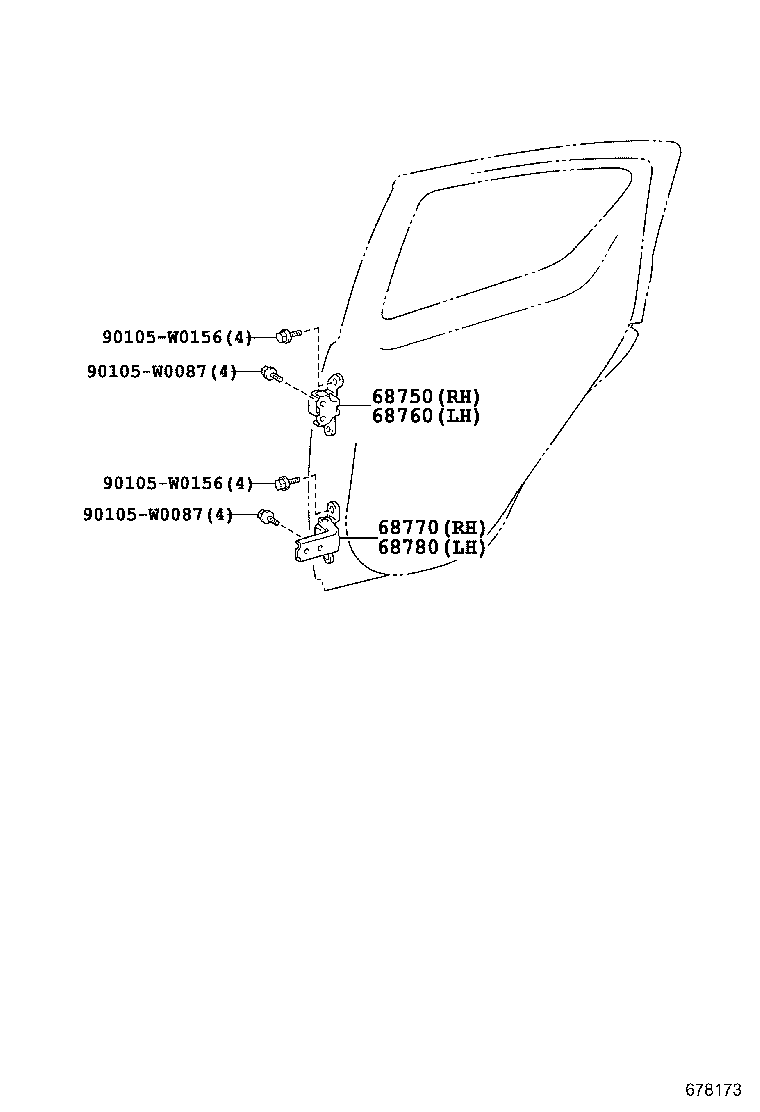

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 90105W0087 90105W0087 90105W0156 90105W0156
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-0H010

KGB40,PAB40..5D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-0H010

KGB40,PAB40..5D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-05020

KGB40,PAB40..5D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-05020

KGB40,PAB40..5D

 1
Common parts
90105-W0087
90105-W0156
