KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )

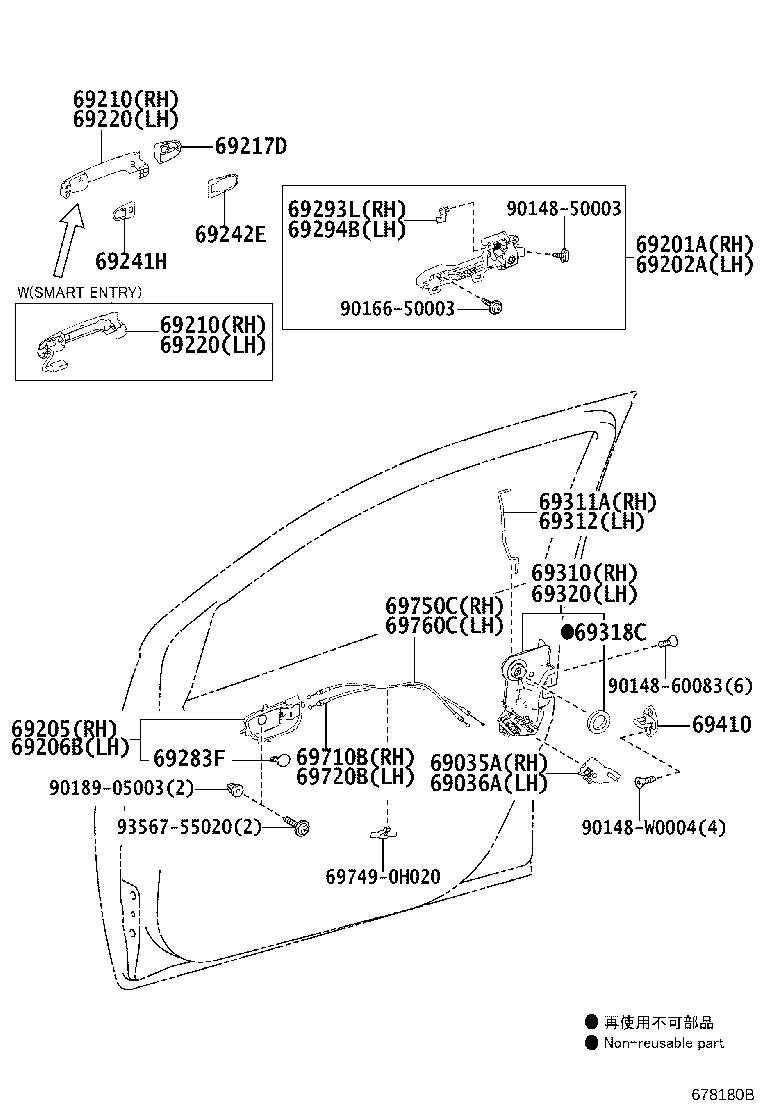

Click highlighted areas on diagram

diagram 69035A 69036A 69201A 69202A 69205 69206B 69210 69210 69217D 69220 69220 69241H 69242E 69283F 69293L 69294B 69310 69311A 69312 69318C 69320 69410 69710B 69720B 697490H020 69750C 69760C 9014850003 9014860083 90148W0004 9016650003 9018905003 9356755020
Part # Description Qty Price
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-02020

KGB40,PAB40

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-02020

KGB40,PAB40

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-0H020

KGB40,PAB40..RHD

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-0H020

KGB40..RHD..LEDIN

WITHOUT(PACKAGE OPTION)

 1
69202-0H010

KGB40,PAB40

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-0D271B0

KGB40,PAB40

MISTRAL,TRIM2#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-0D271B0

KGB40,PAB40

MISTRAL,TRIM2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-0H030

KGB40..LEDIN

NO PAINT REQ.

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-0H030

KGB40..LEDIN

NO PAINT REQ.

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-0H040

KGB40..LEDIN

BLACK MATERIAL,PASSENGER SIDE

 1
69217-0H030

KGB40..LEDIN

BLACK MATERIAL,DRIVER SIDE

 1
69217-0H030

KGB40..LEDIN

BLACK MATERIAL,WITHOUT(PACKAGE OPTION)

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-0H030

KGB40..LEDIN

NO PAINT REQ.

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-0H030

KGB40..LEDIN

NO PAINT REQ.

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-0D020

KGB40,PAB40

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-0H010

KGB40,PAB40

 2
69283F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL
69283-0D010B0

KGB40,PAB40

PSA MISTRAL HZD,TRIM2#

 2
69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

KGB40,PAB40

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

KGB40,PAB40

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-0H050

KGB40,PAB40..RHD

 1
69310-0H050

KGB40..LEDIN

WITHOUT(PACKAGE OPTION)

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-0H030

KGB40,PAB40..5D

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-0H030

KGB40,PAB40..5D

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

KGB40,PAB40

 2
69320 - LOCK ASSY, FRONT DOOR, LH
69040-02500

KGB40,PAB40..RHD

 1
69320-0H050

KGB40..LEDIN

WITHOUT(PACKAGE OPTION)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-0H020

KGB40,PAB40

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-0H030

KGB40,PAB40..5D

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-0H030

KGB40,PAB40..5D

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-0H030

KGB40,PAB40..5D

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-0H030

KGB40,PAB40..5D

 1
Common parts
69749-0H020
90148-50003
90148-60083
90148-W0004
90166-50003
90189-05003
93567-55020
