KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )

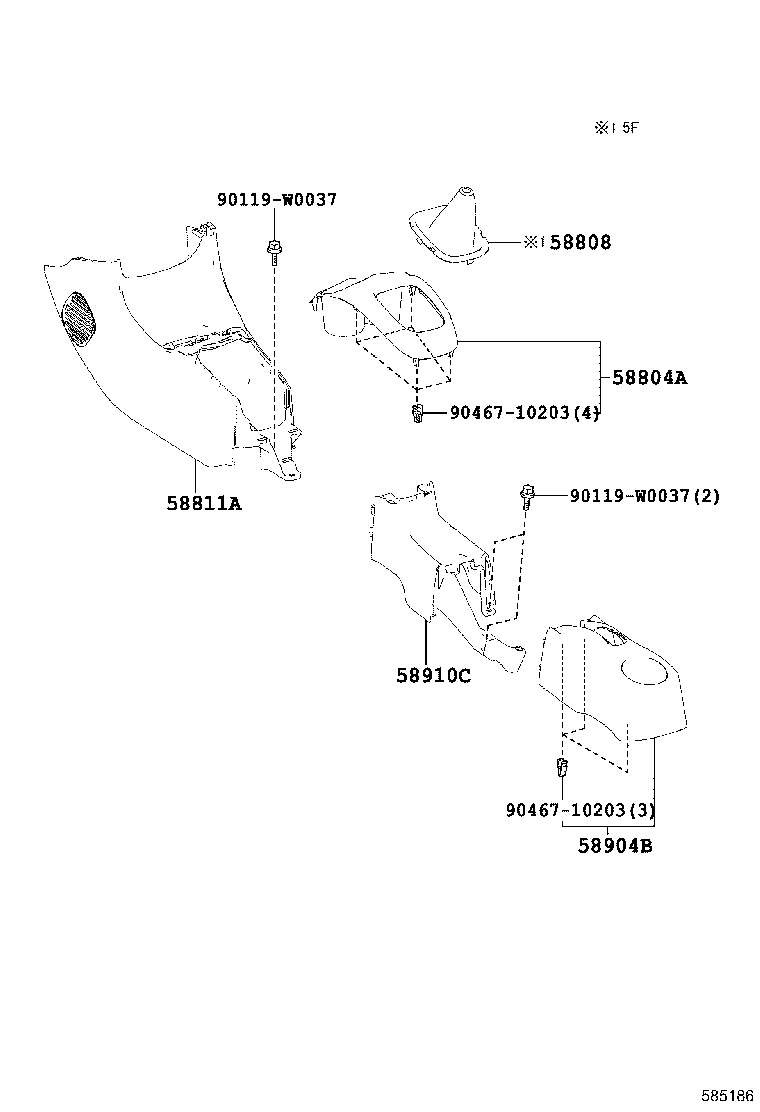

Click highlighted areas on diagram

diagram 58804A 58808 58811A 58904B 58910C 90119W0037 90119W0037 9046710203 9046710203
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-0H010B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-0H020B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
58811A - BOX, CONSOLE, FRONT
58801-0H030B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-0H010B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-0H010B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
Common parts
90119-W0037
90467-10203
