KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

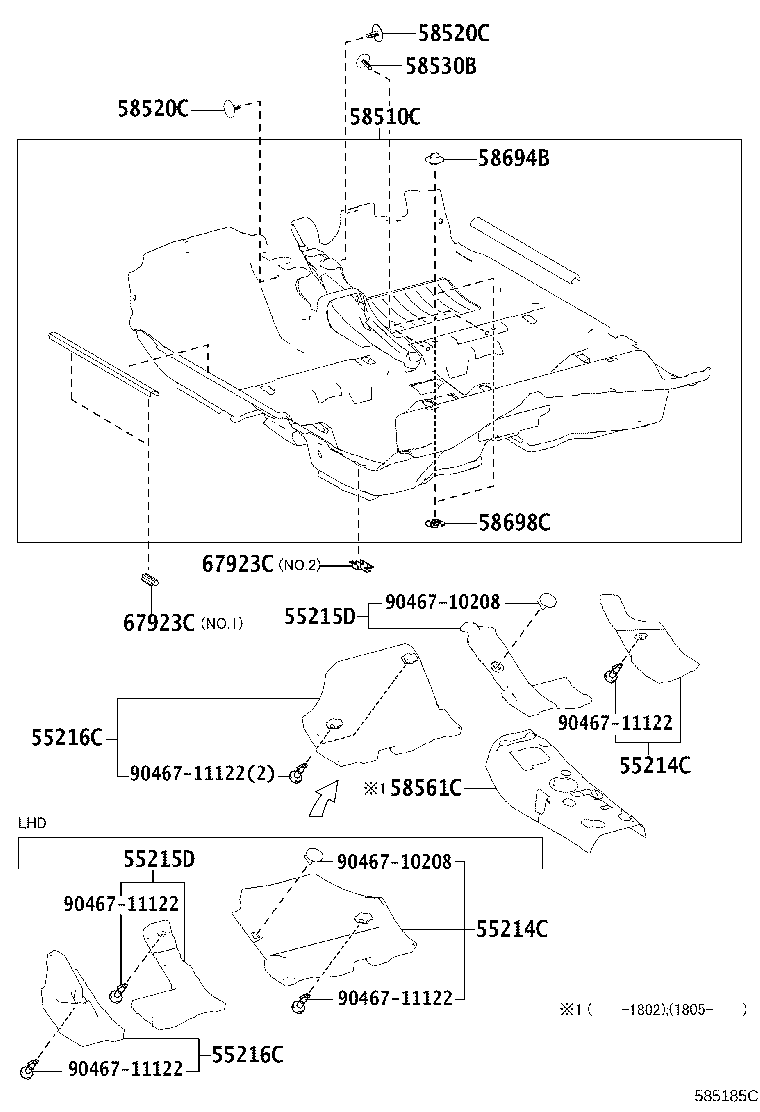

ILLUST NO. 1 OF 2(1405- )5D

Click highlighted areas on diagram

FLOOR CARPET

diagram 55214C 55214C 55215D 55215D 55216C 55216C 58510C 58520C 58520C 58530B 58561C 58694B 58698C 67923C 67923C 9046710208 9046710208 9046711122 9046711122 9046711122 9046711122 9046711122
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0H040

KGB40,PAB40..RHD

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0H040

KGB40,PAB40..RHD

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0H040

KGB40,PAB40..RHD

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0H040

KGB40,PAB40..RHD

 1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-0H040

KGB40,PAB40..RHD

 1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-0H040

KGB40,PAB40..RHD

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-0H100C1

KGB40..RHD..5D..LEDIN

BLACK,TRIM2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006B1

KGB40..LEDIN

DARK GREY,TRIM2#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006B1

KGB40..LEDIN

DARK GREY,TRIM2#

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07049S3

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-0H020

KGB40,PAB40

 1
58561-0H020

PAB40;KGB40..LEDIN

WITHOUT(PACKAGE OPTION)

 1
58694B - PLATE, MAT SET, UPPER
58694-76010

KGB40,PAB40

 2
58698C - PLATE, MAT SET, LOWER
58698-76010

KGB40,PAB40

 2
67923C - CLAMP, DOOR SCUFF PLATE, NO.1
67923-0H030

KGB40,PAB40

NO.2:REFER ILLUST.

 2
67923-0H060

KGB40,PAB40..5D

NO.1:REFER ILLUST.

 4
67923C - CLAMP, DOOR SCUFF PLATE, NO.1
67923-0H030

KGB40,PAB40

NO.2:REFER ILLUST.

 2
67923-0H060

KGB40,PAB40..5D

NO.1:REFER ILLUST.

 4
Common parts
90467-10208
90467-11122
