KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )RHD

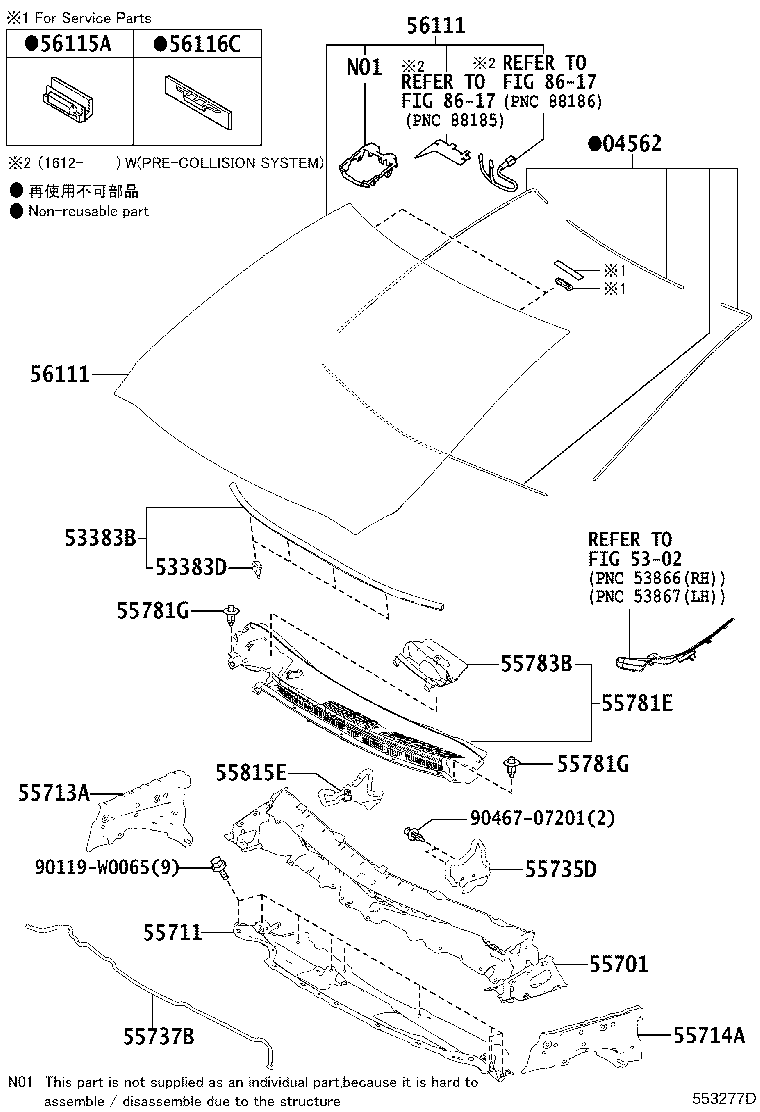

Click highlighted areas on diagram

diagram 04562 5302 53383B 53383D 55701 55711 55713A 55714A 55735D 55737B 55781E 55781G 55781G 55783B 55815E 56111 56111 56115A 56116C 8617 8617 90119W0065 9046707201
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-0H020

KGB40,PAB40

 1
53383B - SEAL, HOOD TO COWL TOP
53383-0H030

KGB40,PAB40

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

KGB40,PAB40

 4
55701 - PANEL SUB-ASSY, COWL
55700-0H060

KGB40,PAB40..RHD

 1
55711 - PANEL, COWL TOP, OUTER
55701-0H060

KGB40,PAB40..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-0H020

KGB40,PAB40

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-0H020

KGB40,PAB40

 1
55735D - SEAL, FRONT AIR SHUTTER, RH
55735-0H020

KGB40,PAB40

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-0H040

KGB40,PAB40

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0H100

KGB40,PAB40..RHD

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-W0008C0

KGB40,PAB40

BLACK

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-W0008C0

KGB40,PAB40

BLACK

 2
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-0H050

KGB40,PAB40..RHD

 1
55815E - SEAL, FRONT VENTILATOR, NO.1
55815-0H020

KGB40,PAB40

 1
56111 - GLASS, WINDSHIELD
56101-0H030

KGB40,PAB40

 1
56101-0H070

KGB40..RHD..LEDIN

PRE-COLLISION SYSTEM-WITH

 1
56111 - GLASS, WINDSHIELD
56101-0H030

KGB40,PAB40

 1
56101-0H070

KGB40..RHD..LEDIN

PRE-COLLISION SYSTEM-WITH

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

KGB40,PAB40

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

KGB40,PAB40

 1
Common parts
90119-W0065
90467-07201
Linked diagrams
5302
8617
