KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

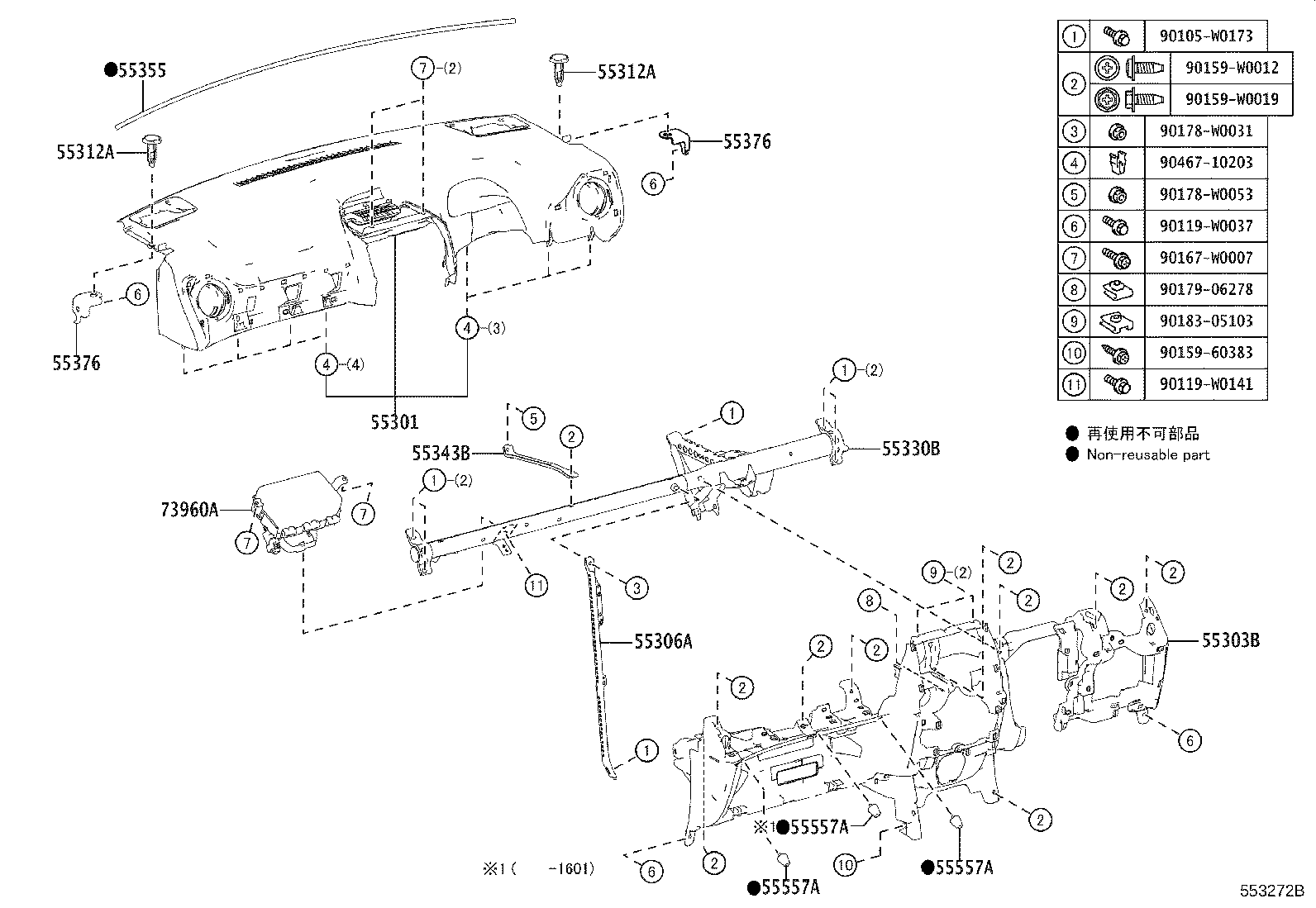

ILLUST NO. 1 OF 2(1405- )RHD

Click highlighted areas on diagram

diagram 55301 55303B 55306A 55312A 55312A 55330B 55343B 55355 55376 55376 55557A 55557A 55557A 73960A 90105W0173 90119W0037 90119W0141 9015960383 90159W0012 90159W0019 90167W0007 90178W0031 90178W0053 9017906278 9018305103 9046710203
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55300-0H906B0

KGB40..RHD..LEDIN

MISTRAL,TRIM2#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-0H060B0

KGB40..RHD..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-0H031

KGB40,PAB40..RHD

 1
55306-0H030

KGB40,PAB40..RHD

 1
55312A - CLIP, INSTRUMENT PANEL
52161-02030

KGB40,PAB40

 2
55312A - CLIP, INSTRUMENT PANEL
52161-02030

KGB40,PAB40

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-0H040

KGB40,PAB40..RHD

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-0H010

KGB40,PAB40

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-0H020

KGB40,PAB40

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-0H010

KGB40,PAB40

 2
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-0H010

KGB40,PAB40

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

KGB40,PAB40

 3
55557-60050

KGB40,PAB40

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

KGB40,PAB40

 3
55557-60050

KGB40,PAB40

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

KGB40,PAB40

 3
55557-60050

KGB40,PAB40

 2
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-0H020

KGB40,PAB40..RHD

 1
Common parts
90105-W0173
90119-W0037
90119-W0141
90159-60383
90159-W0012
90159-W0019
90167-W0007
90178-W0031
90178-W0053
90179-06278
90183-05103
90467-10203

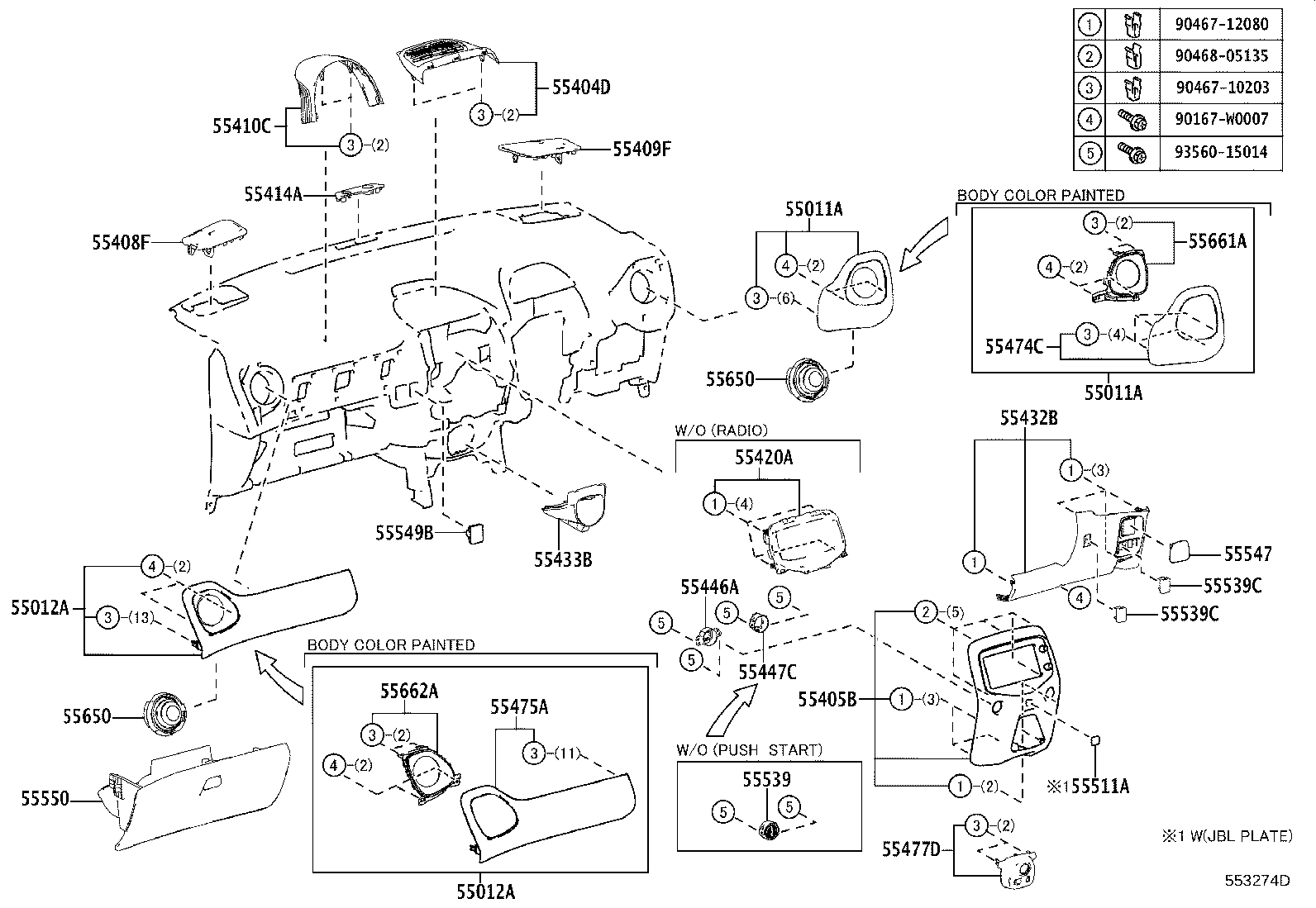

ILLUST NO. 2 OF 2(1405- )RHD

Click highlighted areas on diagram

diagram 55011A 55011A 55012A 55012A 55404D 55405B 55408F 55409F 55410C 55414A 55420A 55432B 55433B 55446A 55447C 55474C 55475A 55477D 55511A 55539 55539C 55539C 55547 55549B 55550 55650 55650 55661A 55662A 90167W0007 9046710203 9046712080 9046805135 9356015014
Part # Description Qty Price
55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
55011-0H050B0

KGB40..RHD..LEDIN

MISTRAL,TRIM2#

 1
55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
55011-0H050B0

KGB40..RHD..LEDIN

MISTRAL,TRIM2#

 1
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-0H050B0

KGB40..RHD..LEDIN

MISTRAL,TRIM2#

 1
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-0H050B0

KGB40..RHD..LEDIN

MISTRAL,TRIM2#

 1
55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-0H010B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-0H030B1

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-0H020B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55473-0H020B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-0H010B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55414A - PANEL, INSTRUMENT CLUSTER FINISH, END
55414-0H030B0

KGB40..LEDIN

MISTRAL,TRIM2#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-0H010B0

KGB40..LEDIN

AUDIO-RADIO LESS & 2SPEAKER,PSA MISTRAL HZD,TRIM2#

 1
55420-0H010B0

KGB40..LEDIN

AUDIO-RADIO LESS & WITHOUT(SPEAKER),PSA MISTRAL HZD,TRIM2#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-0H020B0

KGB40..RHD..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-0H010B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-0H020

KGB40,PAB40..RHD

 1
55477D - COVER, CIGARETTE LIGHTER HOLE
55477-0H020B0

KGB40..LEDIN

AUDIO-RADIO LESS & WITHOUT(SPEAKER),PSA MISTRAL HZD,TRIM2#

 1
55477-0H010B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55477-0H020B0

KGB40..LEDIN

AUDIO-RADIO LESS & 2SPEAKER,PSA MISTRAL HZD,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-0H020

KGB40,PAB40..RHD

 1
55539C - COVER, SPARE SWITCH HOLE
55539-02100B1

KGB40..RHD..LEDIN

WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH,PSA MISTRAL HZD,TRIM2#

 1
55539-02100B1

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55524-0H020B0

KGB40..LEDIN

MISTRAL,TRIM2#

 1
55539-02100B1

KGB40..LEDIN

PRE-COLLISION SYSTEM-WITH,PSA MISTRAL HZD,TRIM2#

 1
55524-0H020B0

KGB40..LEDIN

PRE-COLLISION SYSTEM-WITH,MISTRAL,TRIM2#

 1
55539-02100B1

KGB40..LEDIN

WITH(STOP & START SYSTEM),PSA MISTRAL HZD,TRIM2#

 1
55524-0H020B0

KGB40..RHD..LEDIN

WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH,MISTRAL,TRIM2#

 1
55524-0H020B0

KGB40..LEDIN

WITH(STOP & START SYSTEM),MISTRAL,TRIM2#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-02100B1

KGB40..RHD..LEDIN

WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH,PSA MISTRAL HZD,TRIM2#

 1
55539-02100B1

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55524-0H020B0

KGB40..LEDIN

MISTRAL,TRIM2#

 1
55539-02100B1

KGB40..LEDIN

PRE-COLLISION SYSTEM-WITH,PSA MISTRAL HZD,TRIM2#

 1
55524-0H020B0

KGB40..LEDIN

PRE-COLLISION SYSTEM-WITH,MISTRAL,TRIM2#

 1
55539-02100B1

KGB40..LEDIN

WITH(STOP & START SYSTEM),PSA MISTRAL HZD,TRIM2#

 1
55524-0H020B0

KGB40..RHD..LEDIN

WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH,MISTRAL,TRIM2#

 1
55524-0H020B0

KGB40..LEDIN

WITH(STOP & START SYSTEM),MISTRAL,TRIM2#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-0H010B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55549B - COVER, INSTRUMENT PANEL HOLE, NO.2
55549-0H010B0

KGB40..5D..LEDIN;KGB40..LHD..3D..LEDIN

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE,PSA MISTRAL HZD,TRIM2#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-0H020B0

KGB40..RHD..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0H020B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0H020B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 2
Common parts
90167-W0007
90467-10203
90467-12080
90468-05135
93560-15014
