KGB40R-AHMRKW (2014)
Toyota Aygo
Production
May 2014
-
May 2018
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1405- )

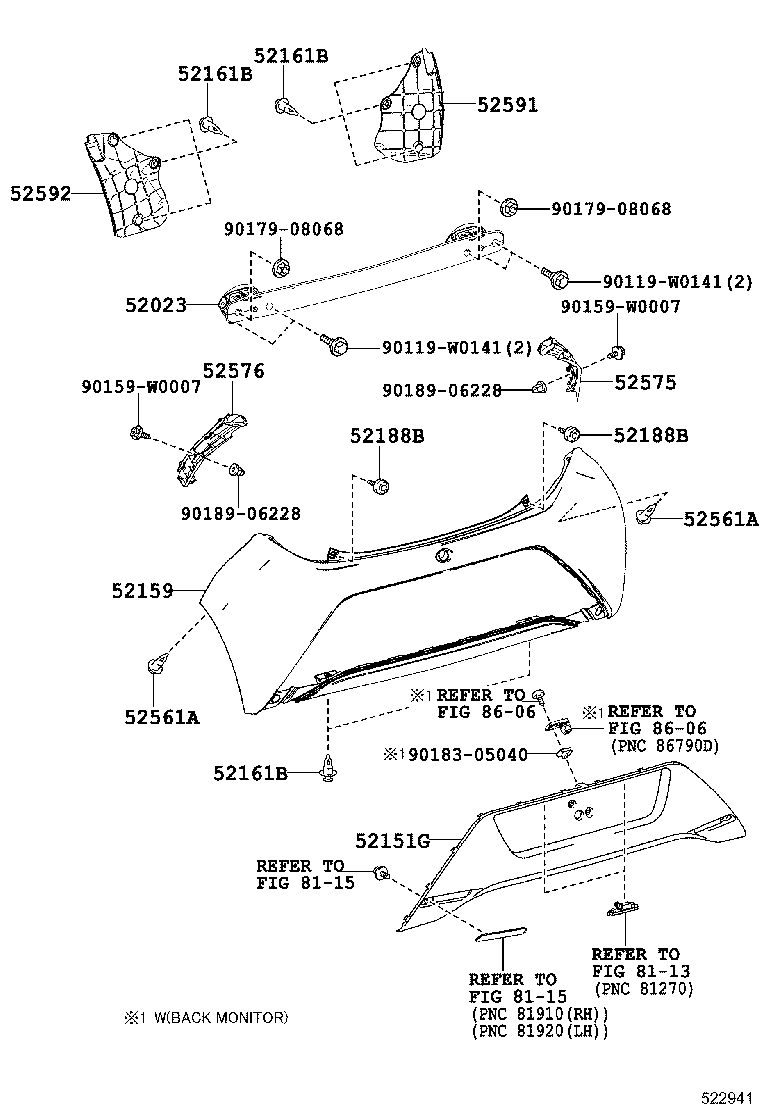

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-0H020 |
KGB40,PAB40 |
1 | ||
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-0H010 |
KGB40,PAB40 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0H908 |
KGB40,PAB40 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
KGB40,PAB40 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
KGB40,PAB40 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02030 |
KGB40,PAB40 |
8 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-70020 |
KGB40,PAB40 |
2 | ||
| 52188-70030 |
KGB40,PAB40 |
2 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-70020 |
KGB40,PAB40 |
2 | ||
| 52188-70030 |
KGB40,PAB40 |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05170 |
KGB40,PAB40 |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05170 |
KGB40,PAB40 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0H031 |
KGB40,PAB40 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0H031 |
KGB40,PAB40 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0H011 |
KGB40,PAB40 |
1 | ||
| 52591-0H010 |
KGB40,PAB40 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0H010 |
KGB40,PAB40 |
1 | ||
| 52592-0H011 |
KGB40,PAB40 |
1 | ||
| Common parts | ||||
| 90119-W0141 | ||||
| 90159-W0007 | ||||
| 90179-08068 | ||||
| 90183-05040 | ||||
| 90189-06228 | ||||
| Linked diagrams | ||||
| 8113 | ||||
| 8115 | ||||
| 8606 | ||||
