KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

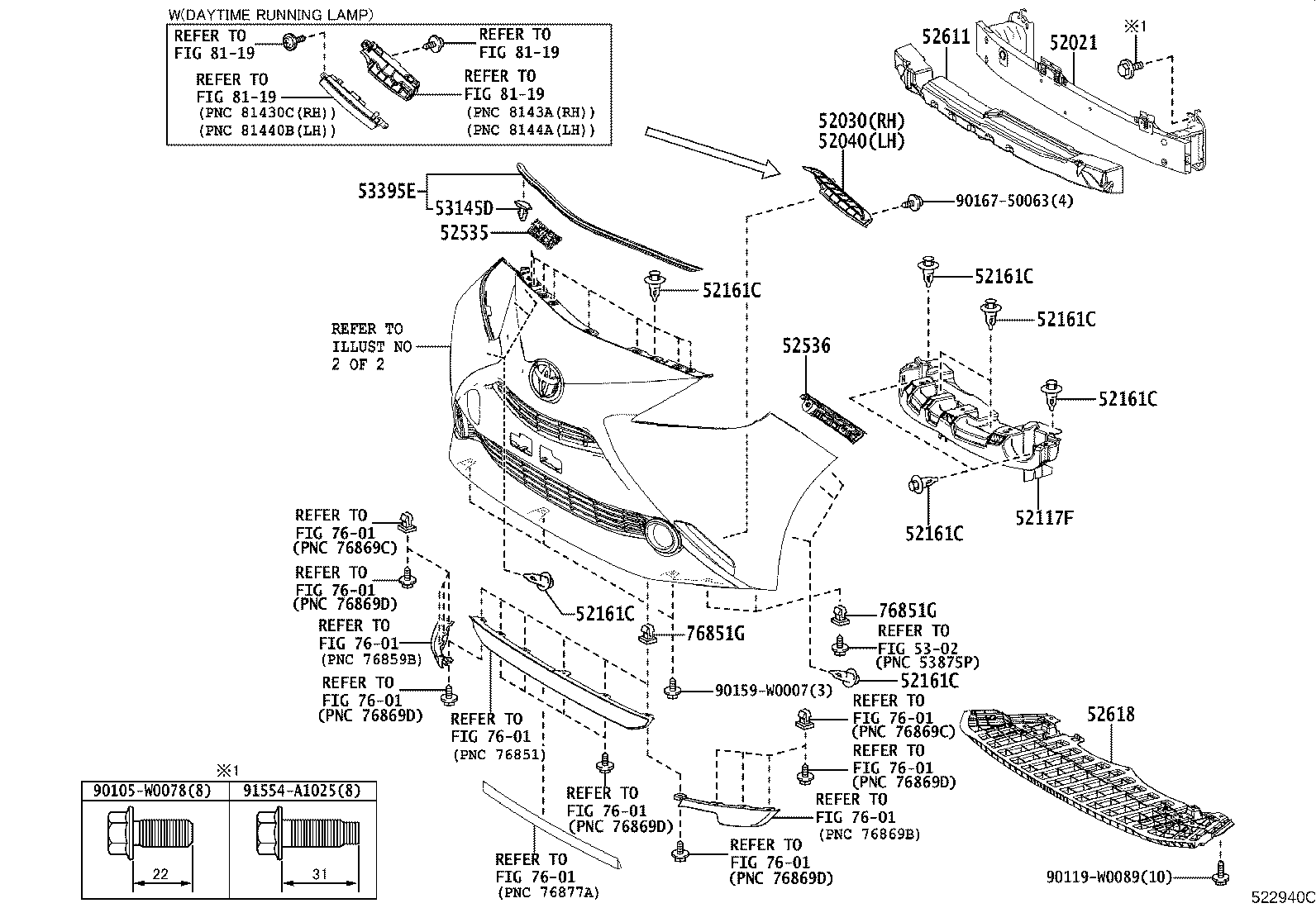

ILLUST NO. 1 OF 2(1405-1805)

Click highlighted areas on diagram

diagram 52021 52030 52040 52117F 52161C 52161C 52161C 52161C 52161C 52161C 52161C 52535 52536 52611 52618 5302 53145D 53395E 7601 7601 7601 7601 7601 7601 7601 7601 7601 7601 7601 76851G 76851G 8119 8119 8119 8119 90105W0078 90119W0089 90159W0007 9016750063 91554A1025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0H031

KGB40,PAB40

 1
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
81483-0H010

KGB40..5D..5F;KGB40..LHD..3D..5F

VSC-WITHOUT

 1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
81484-0H010

KGB40..5D..5F;KGB40..LHD..3D..5F

VSC-WITHOUT

 1
52117F - SUPPORT, FRONT BUMPER, UPPER
52117-0H010

KGB40,PAB40

 1
52161C - PIECE, FRONT BUMPER
52161-02030

KGB40,PAB40

 21
52161C - PIECE, FRONT BUMPER
52161-02030

KGB40,PAB40

 21
52161C - PIECE, FRONT BUMPER
52161-02030

KGB40,PAB40

 21
52161C - PIECE, FRONT BUMPER
52161-02030

KGB40,PAB40

 21
52161C - PIECE, FRONT BUMPER
52161-02030

KGB40,PAB40

 21
52161C - PIECE, FRONT BUMPER
52161-02030

KGB40,PAB40

 21
52161C - PIECE, FRONT BUMPER
52161-02030

KGB40,PAB40

 21
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0H040

KGB40,PAB40

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0H040

KGB40,PAB40

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0H020

KGB40,PAB40

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-0H030

KGB40,PAB40

 1
53145D - CLIP, RADIATOR GRILLE
53145-60030

KGB40,PAB40

 9
53395E - SEAL, HOOD TO FRONT END PANEL
53395-0H050

KGB40,PAB40

 1
76851G - GROMMET, SCREW, NO.1
90189-06237

KGB40,PAB40

 10
76851G - GROMMET, SCREW, NO.1
90189-06237

KGB40,PAB40

 10
Common parts
90105-W0078
90119-W0089
90159-W0007
90167-50063
91554-A1025
Linked diagrams
5302
7601
8119

ILLUST NO. 2 OF 2(1405-1805)

Click highlighted areas on diagram

diagram 52112C 52119A 52127C 52127D 52128B 52811A 5301 53112E 53295H 7501 8102 8102
Part # Description Qty Price

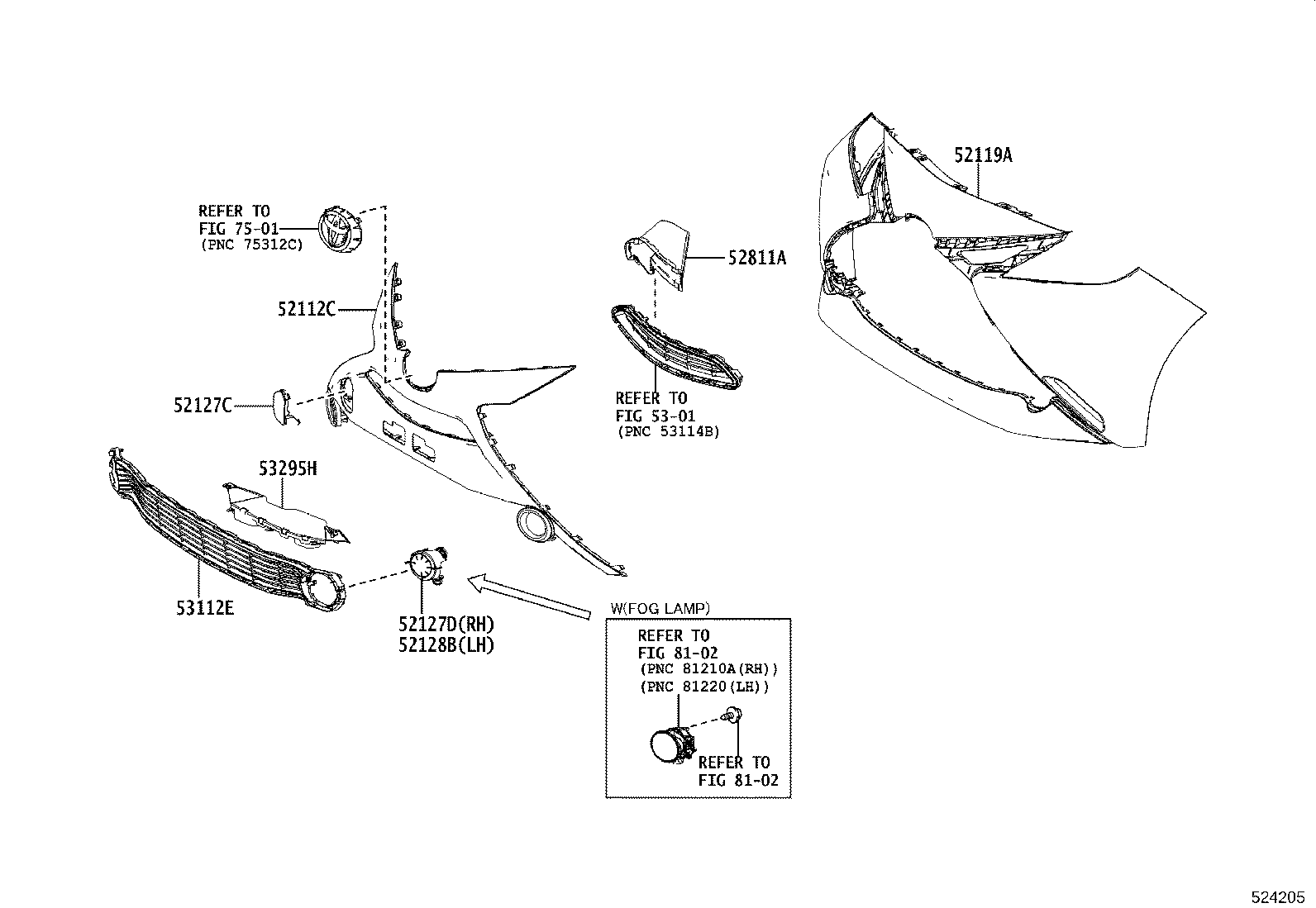

52112C - EXTENSION, FRONT BUMPER
52112-0H010

KGB40..LEDIN

 1
52119A - COVER, FRONT BUMPER
52119-0H918

KGB40,PAB40

 1
52119-0H914

KGB40,PAB40

 1
52127C - COVER, FRONT BUMPER HOLE
52127-0H180

KGB40..LEDIN

 1
52127D - COVER, FRONT BUMPER HOLE, RH
81481-0H130

KGB40,PAB40

 1
52128B - COVER, FRONT BUMPER HOLE, LH
81482-0H130

KGB40,PAB40

 1
52811A - DUCT, COOL AIR INTAKE, NO.1
52811-0H070

KGB40,PAB40

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0H150

KGB40,PAB40

 1
53295H - DEFLECTOR, RADIATOR LOWER AIR
53295-0H010

KGB40,PAB40

 1
Linked diagrams
5301
7501
8102
