KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )

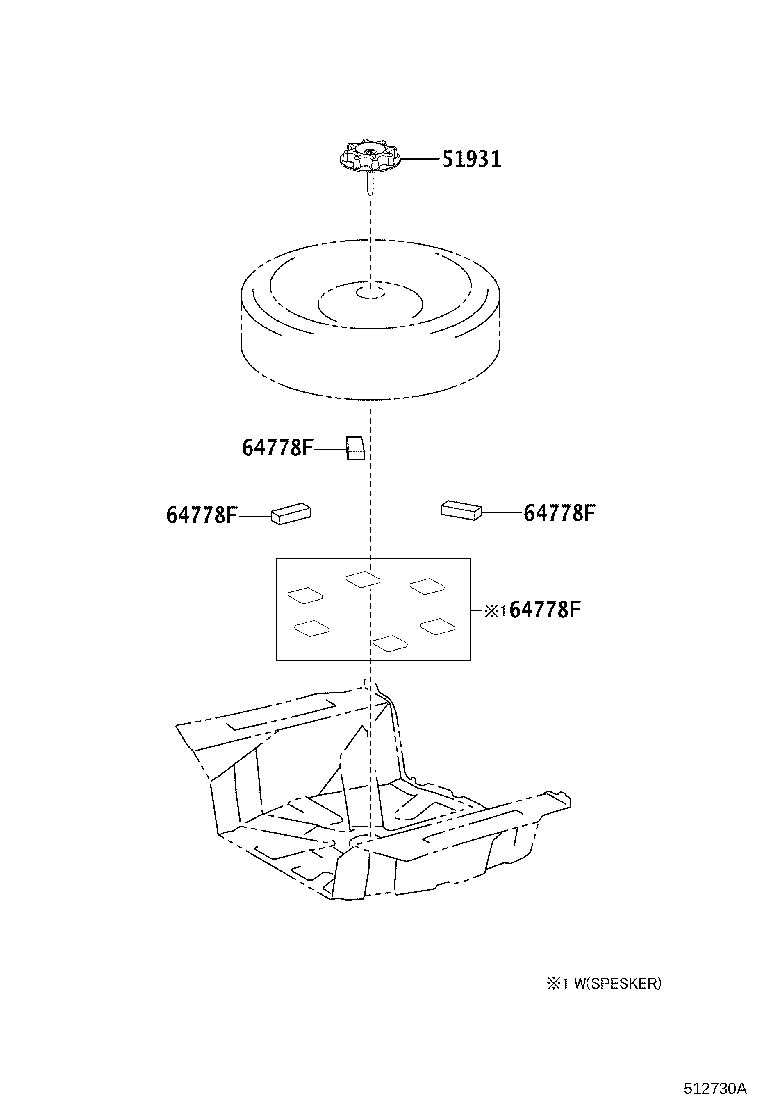

Click highlighted areas on diagram

diagram 51931 64778F 64778F 64778F 64778F
Part # Description Qty Price
51931 - CARRIER, SPARE WHEEL, NO.1
51931-0H020

PAB40..LHD;KGB40..LHD..3D;KGB40..5D..LEDIN;KGB40..LHD..5D..LV1

SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

 1
51931-0H020

KGB40,PAB40

SPARE TIRE-WITH(TEMPORARY, T125/70D15)

 1
64778F - PROTECTOR, SPARE WHEEL
64778-0H020

KGB40,PAB40

SPARE TIRE-WITH(TEMPORARY, T125/70D15)

 3
64778-0H020

PAB40..LHD;KGB40..LHD..3D;KGB40..5D..LEDIN;KGB40..LHD..5D..LV1

SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

 3
64778F - PROTECTOR, SPARE WHEEL
64778-0H020

KGB40,PAB40

SPARE TIRE-WITH(TEMPORARY, T125/70D15)

 3
64778-0H020

PAB40..LHD;KGB40..LHD..3D;KGB40..5D..LEDIN;KGB40..LHD..5D..LV1

SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

 3
64778F - PROTECTOR, SPARE WHEEL
64778-0H020

KGB40,PAB40

SPARE TIRE-WITH(TEMPORARY, T125/70D15)

 3
64778-0H020

PAB40..LHD;KGB40..LHD..3D;KGB40..5D..LEDIN;KGB40..LHD..5D..LV1

SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

 3
64778F - PROTECTOR, SPARE WHEEL
64778-0H020

KGB40,PAB40

SPARE TIRE-WITH(TEMPORARY, T125/70D15)

 3
64778-0H020

PAB40..LHD;KGB40..LHD..3D;KGB40..5D..LEDIN;KGB40..LHD..5D..LV1

SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

 3
