KGB40R-AHMRKW (2014)
Toyota Aygo

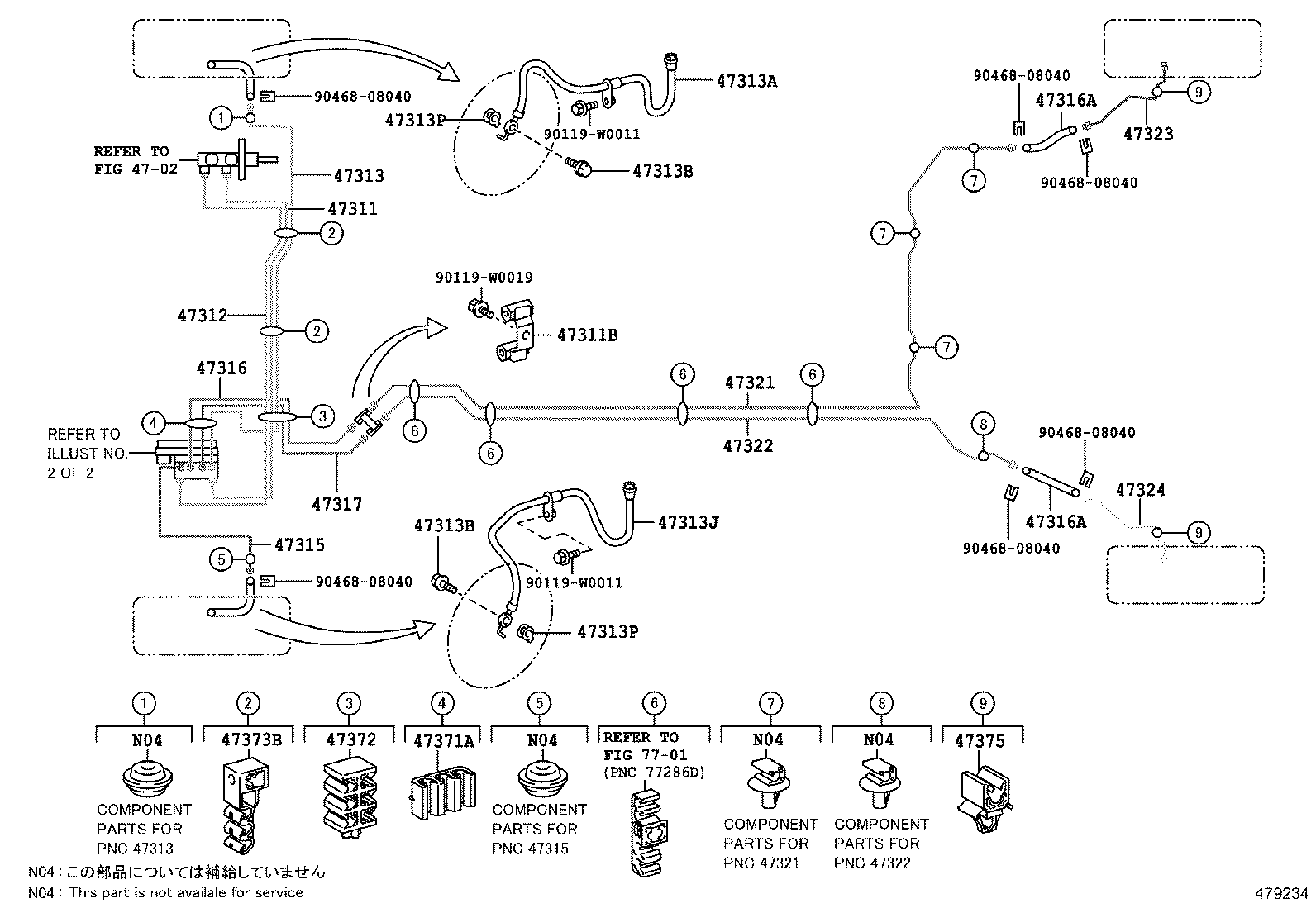

ILLUST NO. 1 OF 2(1405- )KGB40..RHD..5D..5F
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0H080 |
KGB40..RHD..5D..5F VSC-WITHOUT,TUBE COLOR=GREEN |
1 | ||
| 47311-0H140 |
KGB40,PAB40..RHD TUBE COLOR=BLACK |
1 | ||
| 47311-0H120 |
KGB40..RHD..5D..5F VSC-WITHOUT,TUBE COLOR=BLACK |
1 | ||
| 47311-0H100 |
KGB40,PAB40..RHD TUBE COLOR=GREEN |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
KGB40,PAB40 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0H080 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47312-0H140 |
KGB40,PAB40..RHD PNC 47311=BLACK |
1 | ||
| 47312-0H100 |
KGB40,PAB40..RHD PNC 47311=GREEN |
1 | ||
| 47312-0H120 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0H120 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 47313-0H090 |
KGB40,PAB40..RHD PNC 47311=GREEN |
1 | ||
| 47313-0H070 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47313-0H140 |
KGB40,PAB40..RHD PNC 47311=BLACK |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2060 |
KGB40,PAB40 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KGB40,PAB40 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KGB40,PAB40 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-W2061 |
KGB40,PAB40 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
KGB40,PAB40 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
KGB40,PAB40 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0H050 |
KGB40,PAB40 |
1 | ||
| 47315-0H040 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,TUBE COLOR=GREEN |
1 | ||
| 47315-0H070 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47315-0H040 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT |
1 | ||
| 47315-0H050 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47315-0H060 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,TUBE COLOR=BLACK |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0H070 |
KGB40,PAB40 PNC 47311=BLACK |
1 | ||
| 47316-0H060 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 47316-0H050 |
KGB40,PAB40 PNC 47311=GREEN |
1 | ||
| 47316-0H040 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2062 |
KGB40,PAB40 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2062 |
KGB40,PAB40 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0H040 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47317-0H060 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 47317-0H050 |
KGB40,PAB40 PNC 47311=GREEN |
1 | ||
| 47317-0H070 |
KGB40,PAB40 PNC 47311=BLACK |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0H020 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47321-0H020 |
KGB40,PAB40 |
1 | ||
| 47321-0H030 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0H020 |
KGB40,PAB40 |
1 | ||
| 47322-0H020 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47322-0H030 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0H020 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47323-0H020 |
KGB40,PAB40 |
1 | ||
| 47323-0H030 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0H030 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47324-0H020 |
KGB40,PAB40 |
1 | ||
| 47324-0H020 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01A25 |
KGB40,PAB40 PNC 47311=GREEN |
1 | ||
| 90949-01D92 |
KGB40,PAB40 PNC 47311=BLACK |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00898 |
KGB40,PAB40 PNC 47311=GREEN |
1 | ||
| 90949-01D99 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 90949-01E44 |
KGB40,PAB40 PNC 47311=BLACK |
1 | ||
| 90949-01970 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D02 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=GREEN |
2 | ||
| 90464-00955 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
2 | ||
| 90949-01E55 |
KGB40,PAB40..RHD PNC 47311=BLACK |
2 | ||
| 47371-13040 |
KGB40,PAB40..RHD PNC 47311=GREEN |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-W0001 |
KGB40,PAB40 |
2 | ||
| Common parts | ||||
| 90119-W0011 | ||||
| 90119-W0019 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

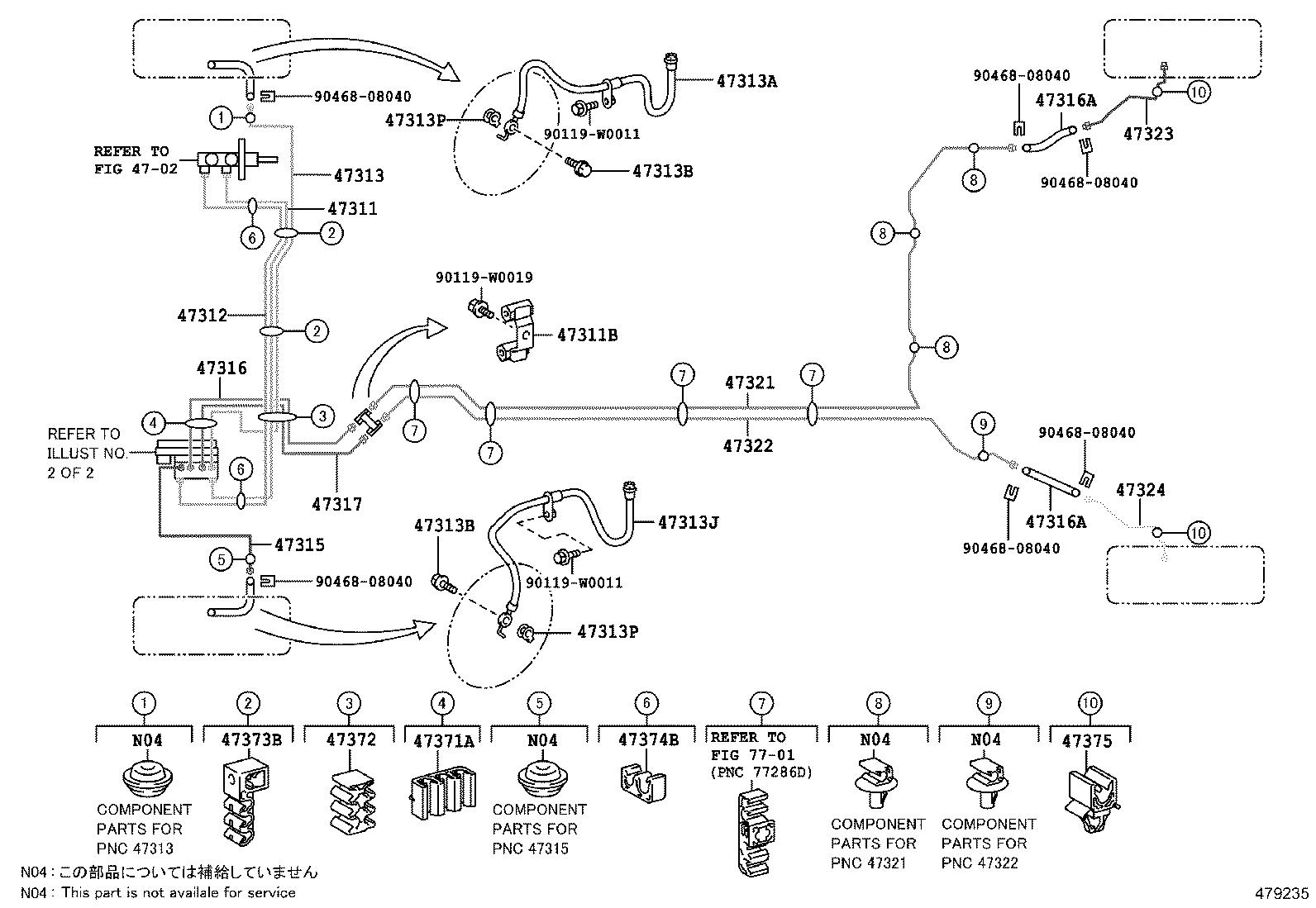

ILLUST NO. 1 OF 2(1405- )RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0H080 |
KGB40..RHD..5D..5F VSC-WITHOUT,TUBE COLOR=GREEN |
1 | ||
| 47311-0H140 |
KGB40,PAB40..RHD TUBE COLOR=BLACK |
1 | ||
| 47311-0H120 |
KGB40..RHD..5D..5F VSC-WITHOUT,TUBE COLOR=BLACK |
1 | ||
| 47311-0H100 |
KGB40,PAB40..RHD TUBE COLOR=GREEN |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
KGB40,PAB40 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0H080 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47312-0H140 |
KGB40,PAB40..RHD PNC 47311=BLACK |
1 | ||
| 47312-0H100 |
KGB40,PAB40..RHD PNC 47311=GREEN |
1 | ||
| 47312-0H120 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0H070 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47313-0H120 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 47313-0H090 |
KGB40,PAB40..RHD PNC 47311=GREEN |
1 | ||
| 47313-0H140 |
KGB40,PAB40..RHD PNC 47311=BLACK |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2060 |
KGB40,PAB40 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KGB40,PAB40 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KGB40,PAB40 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-W2061 |
KGB40,PAB40 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
KGB40,PAB40 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
KGB40,PAB40 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0H050 |
KGB40,PAB40 |
1 | ||
| 47315-0H040 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,TUBE COLOR=GREEN |
1 | ||
| 47315-0H070 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47315-0H040 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT |
1 | ||
| 47315-0H050 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47315-0H060 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,TUBE COLOR=BLACK |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0H070 |
KGB40,PAB40 PNC 47311=BLACK |
1 | ||
| 47316-0H060 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 47316-0H050 |
KGB40,PAB40 PNC 47311=GREEN |
1 | ||
| 47316-0H040 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2062 |
KGB40,PAB40 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2062 |
KGB40,PAB40 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0H040 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47317-0H060 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 47317-0H050 |
KGB40,PAB40 PNC 47311=GREEN |
1 | ||
| 47317-0H070 |
KGB40,PAB40 PNC 47311=BLACK |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0H020 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47321-0H020 |
KGB40,PAB40 |
1 | ||
| 47321-0H030 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0H020 |
KGB40,PAB40 |
1 | ||
| 47322-0H020 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47322-0H030 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0H020 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47323-0H020 |
KGB40,PAB40 |
1 | ||
| 47323-0H030 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0H030 |
KGB40,PAB40 TUBE COLOR=BLACK |
1 | ||
| 47324-0H020 |
KGB40,PAB40 |
1 | ||
| 47324-0H020 |
KGB40,PAB40 TUBE COLOR=GREEN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01A25 |
KGB40,PAB40 PNC 47311=GREEN |
1 | ||
| 90949-01D92 |
KGB40,PAB40 PNC 47311=BLACK |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00898 |
KGB40,PAB40 PNC 47311=GREEN |
1 | ||
| 90949-01D99 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
1 | ||
| 90949-01E44 |
KGB40,PAB40 PNC 47311=BLACK |
1 | ||
| 90949-01970 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT,PNC 47311=GREEN |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D02 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=GREEN |
2 | ||
| 90464-00955 |
KGB40..RHD..5D..5F VSC-WITHOUT,PNC 47311=BLACK |
2 | ||
| 90949-01E55 |
KGB40,PAB40..RHD PNC 47311=BLACK |
2 | ||
| 47371-13040 |
KGB40,PAB40..RHD PNC 47311=GREEN |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00899 |
KGB40,PAB40 PNC 47311=GREEN |
2 | ||
| 90949-01E23 |
KGB40,PAB40 PNC 47311=BLACK |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-W0001 |
KGB40,PAB40 |
2 | ||
| Common parts | ||||
| 90119-W0011 | ||||
| 90119-W0019 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

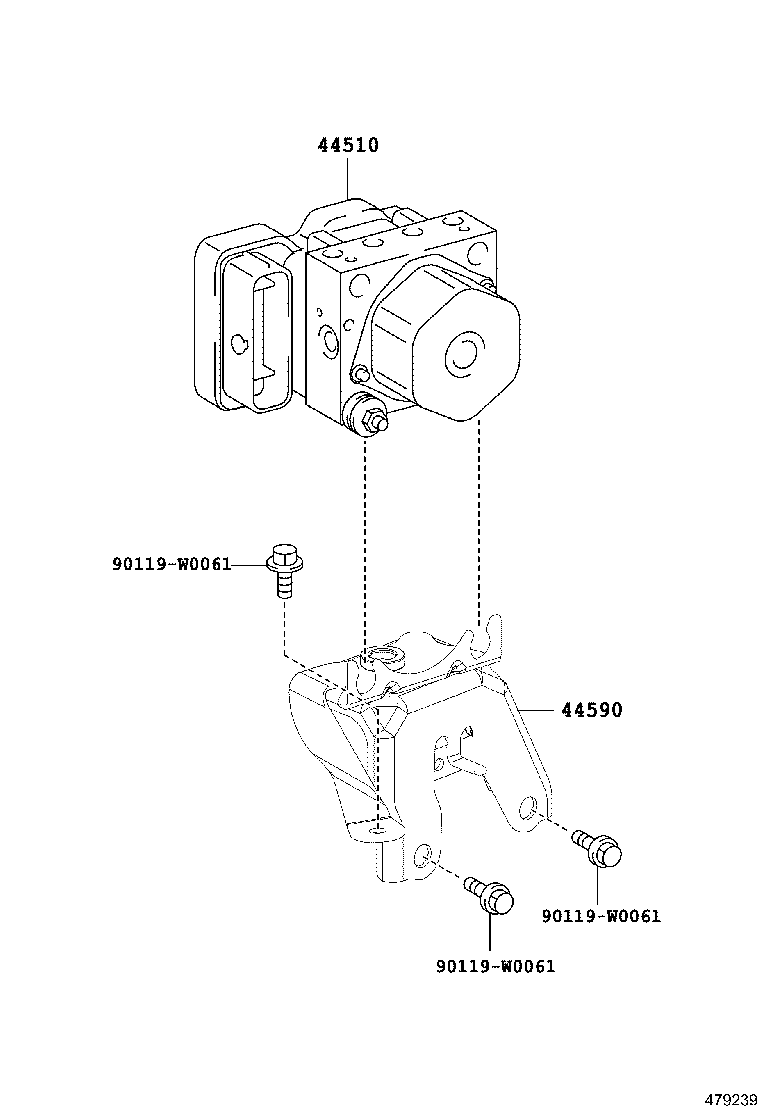

ILLUST NO. 2 OF 2(1405- )KGB40..5D..5F ; (1405- )KGB40..LHD..3D..5F
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0H060 |
PAB40;KGB40..RHD;KGB40..LHD..5FS |
1 | ||
| 44050-0H050 |
KGB40..RHD..5D..LEDIN REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT |
1 | ||
| 44050-0H080 |
PAB40..LHD;KGB40..LHD..5FS;KGB40..RHD..5D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 44050-0H100 |
PAB40;KGB40..RHD;KGB40..LHD..5FS |
1 | ||
| 44050-0H110 |
KGB40..LHD..5FS;KGB40..RHD..5D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 44050-0H050 |
KGB40..RHD..5D..LEDIN REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0H030 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT |
1 | ||
| 44590-0H040 |
KGB40,PAB40 |
1 | ||
| Common parts | ||||
| 90119-W0061 | ||||

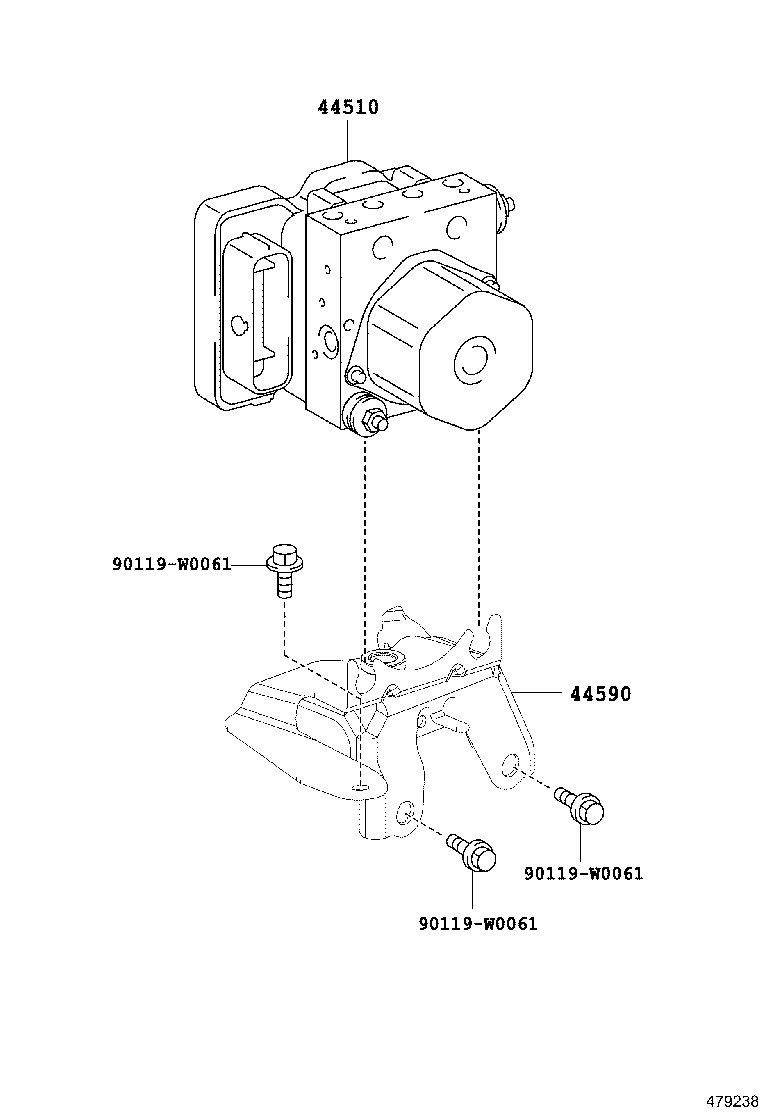

ILLUST NO. 2 OF 2(1405- )
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0H060 |
PAB40;KGB40..RHD;KGB40..LHD..5FS |
1 | ||
| 44050-0H050 |
KGB40..RHD..5D..LEDIN REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT |
1 | ||
| 44050-0H080 |
PAB40..LHD;KGB40..LHD..5FS;KGB40..RHD..5D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 44050-0H100 |
PAB40;KGB40..RHD;KGB40..LHD..5FS |
1 | ||
| 44050-0H110 |
KGB40..LHD..5FS;KGB40..RHD..5D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 44050-0H050 |
KGB40..RHD..5D..LEDIN REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0H030 |
KGB40..5D..5F;KGB40..LHD..3D..5F VSC-WITHOUT |
1 | ||
| 44590-0H040 |
KGB40,PAB40 |
1 | ||
| Common parts | ||||
| 90119-W0061 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
