KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )

Click highlighted areas on diagram

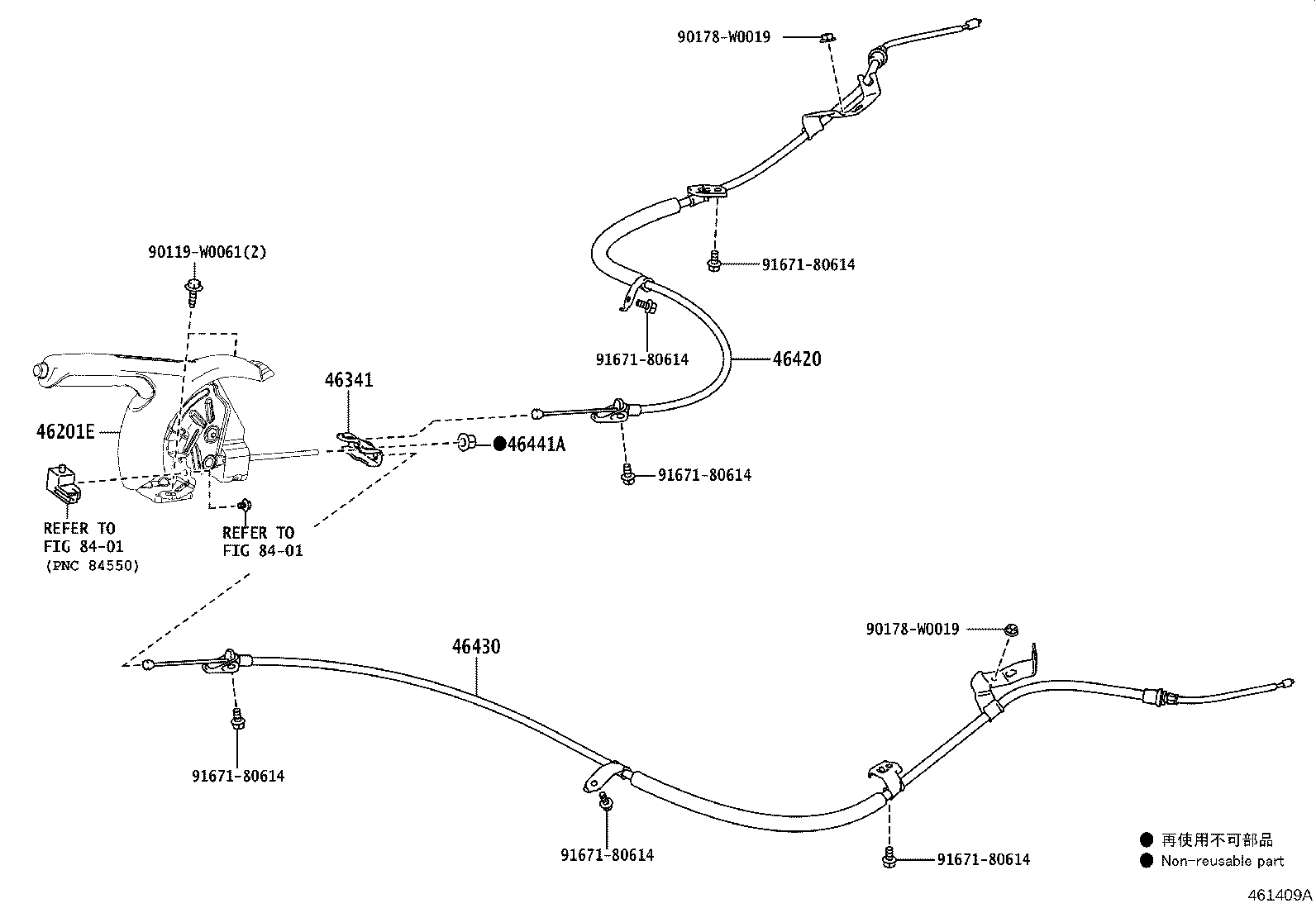

diagram 46201E 46341 46420 46430 46441A 8401 8401 90119W0061 90178W0019 90178W0019 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0H020B0

KGB40..LEDIN

PSA MISTRAL HZD,TRIM2#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-0H010

KGB40,PAB40

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0H021

KGB40,PAB40

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0H021

KGB40,PAB40

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-0H010

KGB40,PAB40

 1
Common parts
90119-W0061
90178-W0019
91671-80614
Linked diagrams
8401
